3 .6V Lithium Primary Battery ER18505 4000mAh
Specifications
Lithium Primary Battery
1) Higher And Stable Working Voltage,3.6V
2) Widely Using Temperature Range, -55°C ~+ 85°C
3) Long Storage Life .
Specifications Of Lithium Battery ER18505 4000mAh :
1) Item: 3.6V Lithium Battery ER18505
2) Type: Li/SOCI2 Battery ER18505
3) Nominal capacity: 4000mAh
4) Nominal voltage: 3.6V
5) Max constant current: 120mA
6) Max pulse current: 200mA

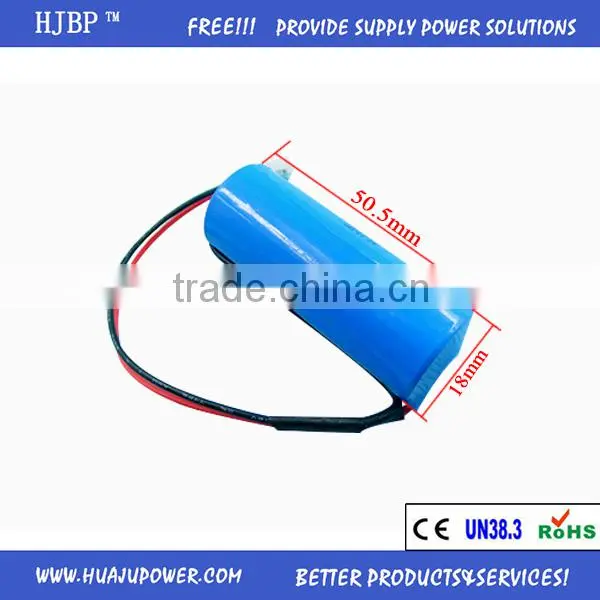

7) Size: D18mm*H50.5mm 8) Weight: 30g
9) Work temperature: -55°C ~+ 85°C
10) OEM & ODM Service are Avaliable
Available Termination Of Lithium Battery ER18505:
1) -/P axial pins
2) -T/PT2 radial pins
3) -/PT/TP polarized ta
4) JSTMOLEX series plug
5) customized, special terminations can be made as requested.
Advantages Of Lithium Battery ER18505 :
1) Higher capacity, the energy density can reach to 430wh/kg
2) High voltage:opem circuit voltage of single cells is 3.67V, operating voltage varies with the load from 3.3V~3.6V
3) Table operating voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged, the output capacity is
still more than 90%
4) Wide temperatre range: can be operated in the temperature of -60°C~+85°C
5) Long storage life: self-discharge rate is less than 1%
6) The shelf life is more than 10 years when stored in normal temperature, due to its hermetically sealed structure which reduces the leakage greatly.

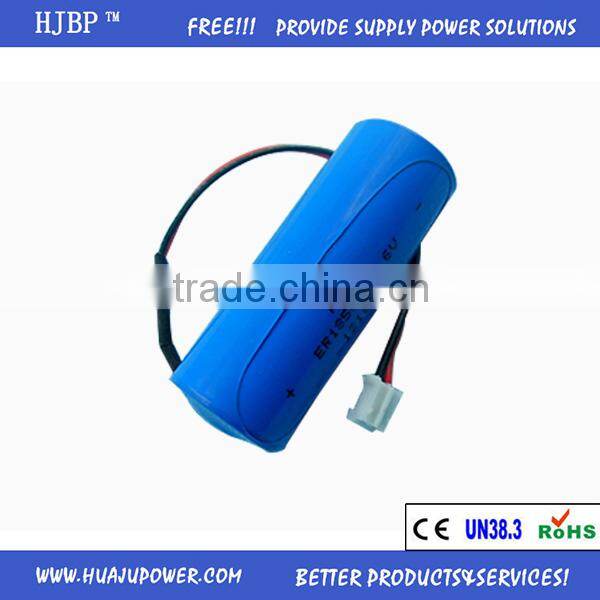

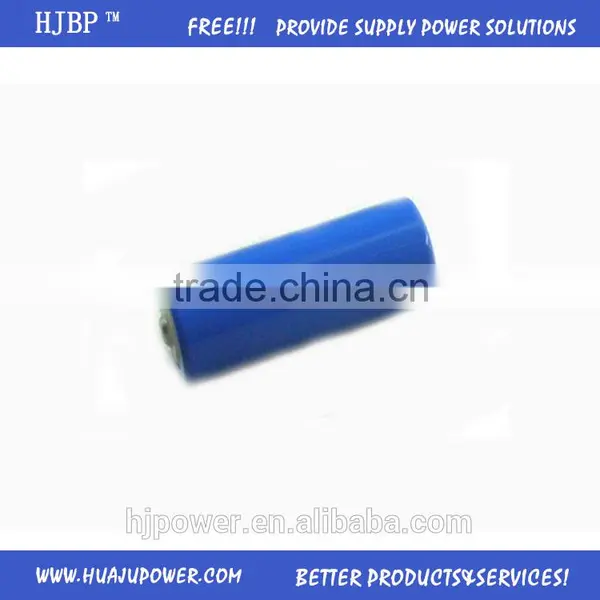

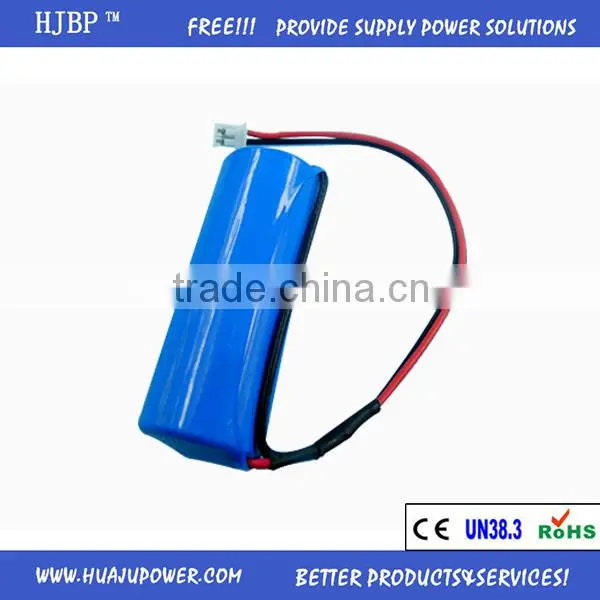

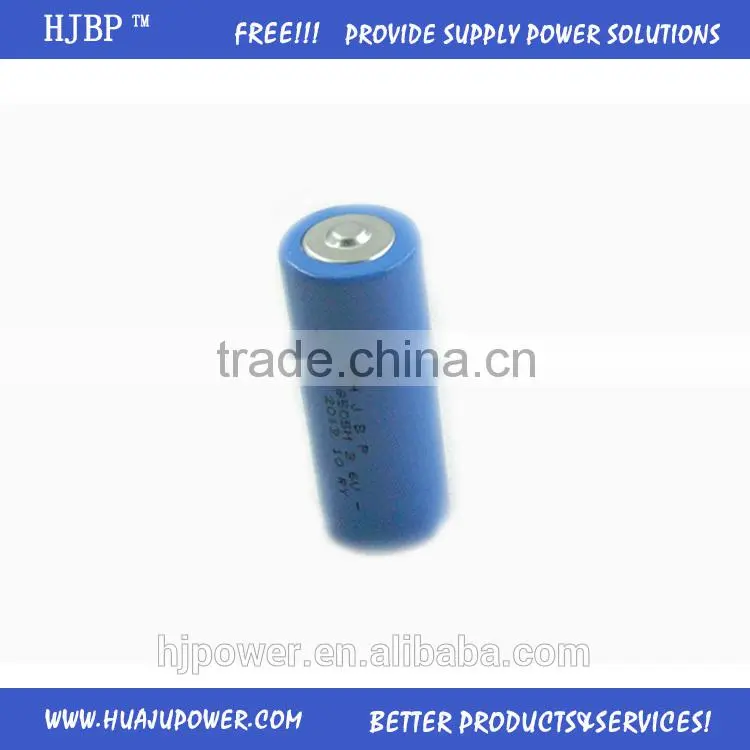

Pictures Of Lithium Battery ER18505 :
Test Reports For Lithium Battery ER18505:
pls contact us.
Solder Tabs Can Be Added To Lithium Battery ER18505:
Applications Of Lithium Battery ER18505:
1) Smartcard Meter(water meter, ammeter, gas meter), Radio communications, taxi meters
2) Smoke & Anti Theft alarm, Life jacket light, Seismic equipment,CNC Maching
3) Special cordless power tools, Telephone set
4) Industry PC computer, computer RAM, CMOS memory backup power sources
5) Medical instruments
6) Underwater weapon, Military communication, Transmitter-receiver, Portable communication equipment, TPMS and so on
Battery Series Of Lithium Battery ER18505:
Model |
Cell size ref. |
Nominal voltage(V) |
Nominal capacity |
nstant cuttent |
Max. Pulse current |
Dimension Dia. * Height |
Weight |
(mAh) |
(mA) |
(mA) |
(mm) |
(g) |
|||
HJBP ENERGY TYPE Li-SOCL2 Battery | |||||||
ER10250 |
- |
3.6 |
400 |
5 |
10 |
10.2×25.7 |
3.8 |
ER10450 |
AAA |
3.6 |
700 |
5 |
30 |
10.2×46.2 |
8 |
ER13150 |
- |
3.6 |
450 |
10 |
30 |
13.0×15.0 |
6 |
ER13170 |
- |
3.6 |
450 |
10 |
30 |
13.0×17.5 |
6 |
ER14250 |
1/2AA |
3.6 |
1200 |
25 |
50 |
14.5×25.2 |
11 |
ER14335 |
2/3AA |
3.6 |
1650 |
75 |
150 |
14.5×33.5 |
13 |
ER14505 |
AA |
3.6 |
2400 |
100 |
200 |
14.5×50.5 |
22 |
ER17335 |
2/3A |
3.6 |
2200 |
100 |
200 |
17.0×33.5 |
19 |
ER17505 |
A |
3.6 |
3500 |
100 |
200 |
17.5×50.5 |
26 |
ER18505 |
A |
3.6 |
4000 |
130 |
400 |
18.8×50.5 |
32 |
ER20505 |
- |
3.6 |
4200 |
120 |
200 |
20.0×50.5 |
35 |
ER26500 |
C |
3.6 |
9000 |
200 |
400 |
26.2×50.0 |
58 |
ER34615 |
D |
3.6 |
19000 |
230 |
500 |
34.2×61.5 |
115 |
ER261020 |
CC |
3.6 |
17000 |
200 |
600 |
26.2×100 |
100 |
ER341245 |
DD |
3.6 |
35000 |
400 |
600 |
34.2×124.5 |
220 |
ER9V |
- |
10.8 |
1200 |
25 |
50 |
48.8×26.0×16.9 |
40 |
Packaging: standard industry packaging, internal tray and box, outside cartons.
2) By Air or by Sea for batch goods or FCL; Airport/ Port receiving.
3) Assist customers with freight forwarder or goods transport method.
4) Delivery Time: 3-7 days for stock samples; 15-25 days for batch goods.
Period of Warranty:
The period of warranty is one a year from the date of shipment. HJBP guarantees to give a replacement in case of battery with defects proven due
to manufacturing process instead of the customers abuse and misuse.
Trading Process

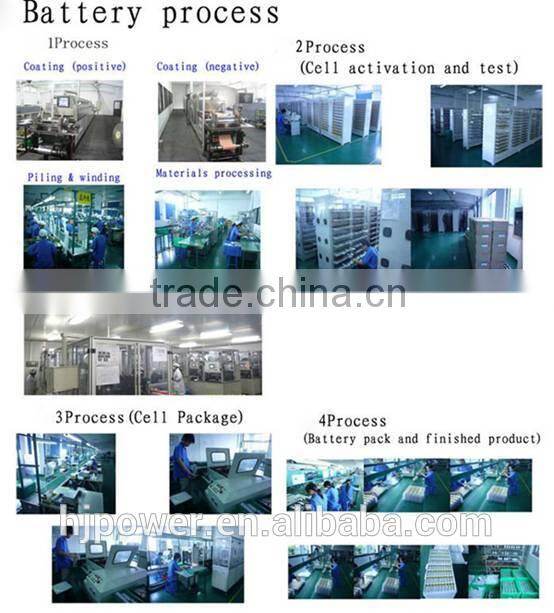

Factory View
1)earliest Chinese lithium thionyl chloride battery factory
2)more than 40 years of experience in military technology and manufacturing.
3) Plant Area: 50,000m³
4) Employees: 800 including 31-40 R&D staff
5) Production Line: 18 lines
6) Production Capability: Approx US$50~100 millions/per year
7) Certification: ISO9001:2008 certified, most of our products are CE, ROHS,UN38.3 and SGS approved.
8) Exported Countries: North America, Southeast Asia, Western Europe, Africa,Russia ,etc
Our Teamwork
1) Professional, our team can offer expertise and efficient services
2) Response promptly, all E-mail will be answered within 1 working day
3) Arrange quickly, orders will be arranged once payment or bank slip received.
4) We will be 100% backup and provide excellent after sales service for our clients
Q1: What's the MOQ?
A1: We can accept small MOQ at the beginning to help customer enter into market firstly.
Q2: What's your packing methods?
A2: Card Pack, Inner Box, Tray Carton, Shrink Pack, Carton Pack or upon to customers' requirements
Q3: What's the delivery time?
A3: 7~10 days delivery time for battery samples, 15~30 days for formal battery orders.
Q4: What's the warranty?
A4: For the batteries, we have 1 year warranty. If any quality problems on our side occured during this
warranty period, we will replace them at our cost (including the shipping cost).
Q5: What's the price?
A5: We provide reasonable, competitive price and recommend suitable batteries to our customers.
Q6: What's the service?
A6: Our policy is to provide more faster & safer & easier service for our customers.
Q7: What's the marketing supports?
A7: We are willing to help you do the marketing together. We can provide different free promotions, and we
can also support you do some attractive suitable local advertisement.
Q8: Can we visit your factory?
A8: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
How to Contact HJBP?
Send your inquiry details in the below for sample, Quotation will be sent to your mail soon.
click ''Send'' Now!
Mail:sales04#
Skype:plum.h
Mob.Phone(WhatsApp):86-131-2014-9720
Send Inquiry to This Supplier
