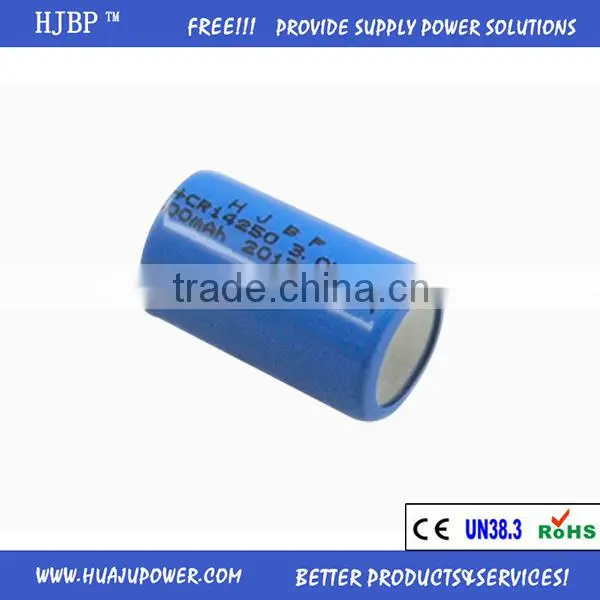

Help CenterLithium Battery CR2 CR14250 3v for Digital Products ,Calculator,Electronic Clock & Watch,thief Alarm,electronic Dictionary,water
Related Products
-
Lithium Battery LiMnO2 CR9V 1200mAh 9v Battery for Led Light,Digital Cameras,digital Cameras,Computer Main-board,memoryUS$ 2.2 - 2.5MOQ: 100 Pieces -
CR17505 3.0v Lifejacket Used of Primary Lithium BatteryUS$ 0.1 - 2MOQ: 50 Pieces
-
HJBP China Factory Wholesales UN38.3|CE|ROHS 9000MAH LIMNO2 3V CP7539109 Non-rechargeable Lithium Battery With Soft PackUS$ 1.4 - 2.6MOQ: 100 Pieces
-
HJBP China Factory Wholesales UN38.3|CE|ROHS 10000MAH LIMNO2 3V CP7839109 Non-rechargeable Lithium Battery With Soft PackUS$ 1.5 - 2.8MOQ: 100 Pieces
-
HJBP China Factory Wholesales UN38.3|CE|ROHS 6000MAH LIMNO2 3V CP1005050 Non-rechargeable Lithium Battery With Soft PackUS$ 0.8 - 1.6MOQ: 100 Pieces
| Packaging Detail: | in box and carton |
| Delivery Detail: | 10-15 days after order confirmed, 5~15days for sample,25~35days for bulk |
3V 1/2aa CR14250battery
Technical Specifications for CR14250 battery:
Battery IEC Code |
CR14250 |
Battery Size Code |
AA |
Electrical Characteristics |
|
Nominal Voltage |
3V |
Nominal Capacity |
1200mAh |
Open circuit voltage |
3.66V (at +20°C) |
Cut off Voltage |
2V |
Max. Constant Current |
100mA |
Max. Pulse Current |
100mA |
Operating Temperature |
-40°C~+125°C |
Storage Temperature |
+30°C/+86°F max |
Storage Life |
≥10 years |
Self – Discharge Rate: |
<1% per year |
Physical Characteristics |
|

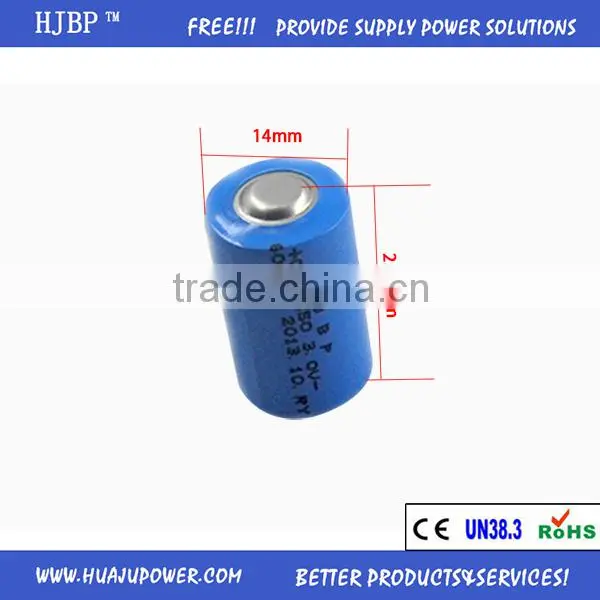

External Diameter (Max) |
14.5mm/0.57inch |
External Height (Max) |
25.0mm/0.98inch |
Weights |
10g/0.35oz |
Battery Technology |
Lithium thionyl chloride / LiSOCL2 |
Battery type |
High temperature type |
Battery structure |
Bobbin type |
Available terminations |
-/P axialpins |
|
-T/PT2 radial pins |
|
-/PT/TP polarized tabs |
Warning:
- This is not rechargeable battery. Do not try to recharge it
- The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
- Do not use if the battery casing was mangled.
- Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need or consult ABLE.
- Don't use different models of battery in series.
- Soldering the tag should be finished in few seconds.
- This is not high drain battery, please don't use it for application with discrging current > 200mA
-
A.Provide the power solution(include idea,the technical stetch and sample)
B.Follow the customer's requirement,and recommend the latest product
C.Provide the technology trainning
D.Accept the test from customer
E.We can reply the relative question within 24hours.
Replacement Policy:
1. We provide one year warranty.
2. If items is defective, please notify us within 5 work days of deliveryWE AIM IS TO PROVIDE YOU TOP QUALITY BATTERY PACKS AT AFFORDABLE PRICE!
Why not contact us for further information?
Mob: +86-13520534357
Tel: +86-10-62717386 Fax:+86-10-52214567-0106
Beijing Huaju New Power Technology&Development Co.,Ltd.
Send Inquiry to This Supplier
