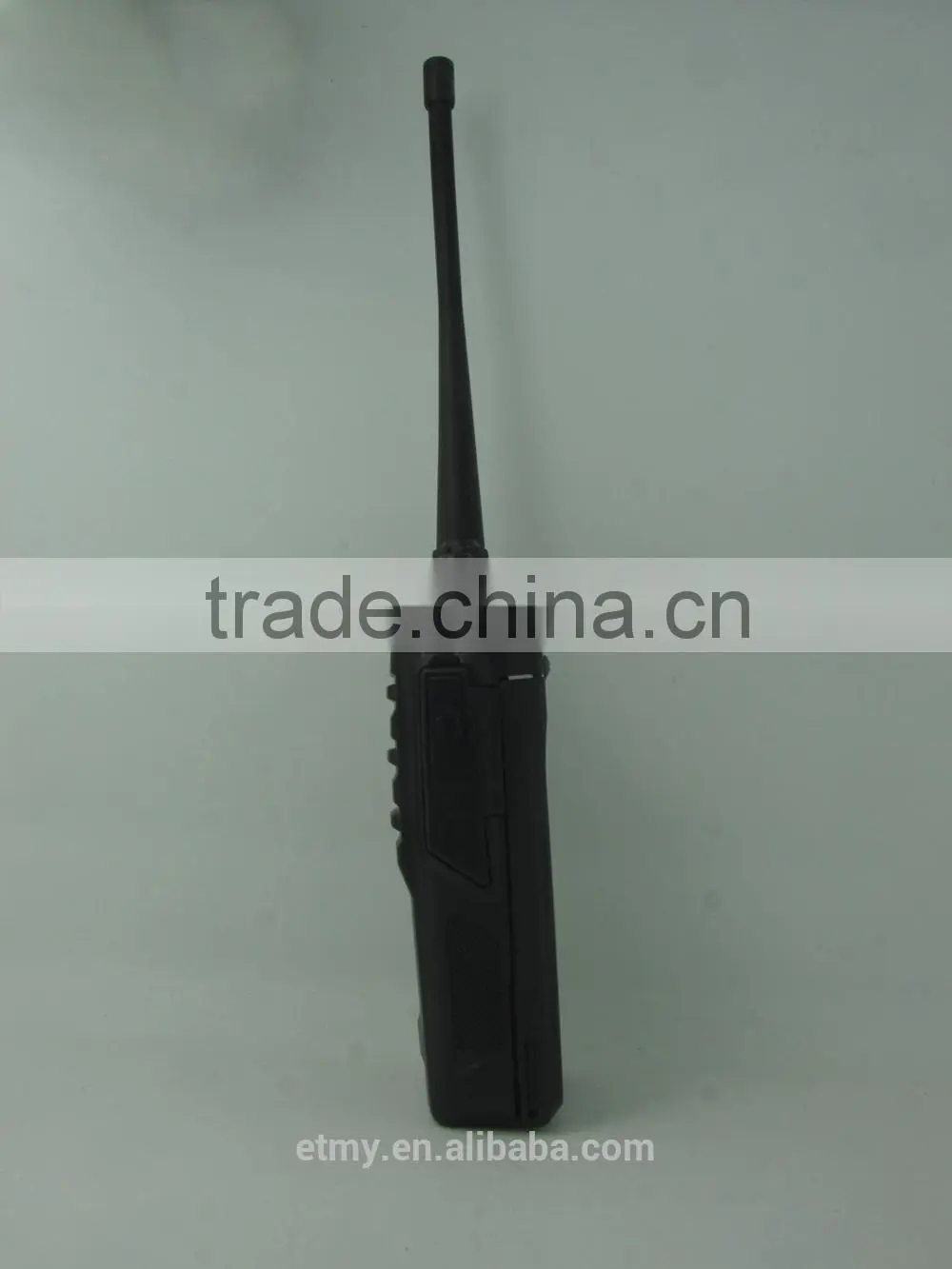

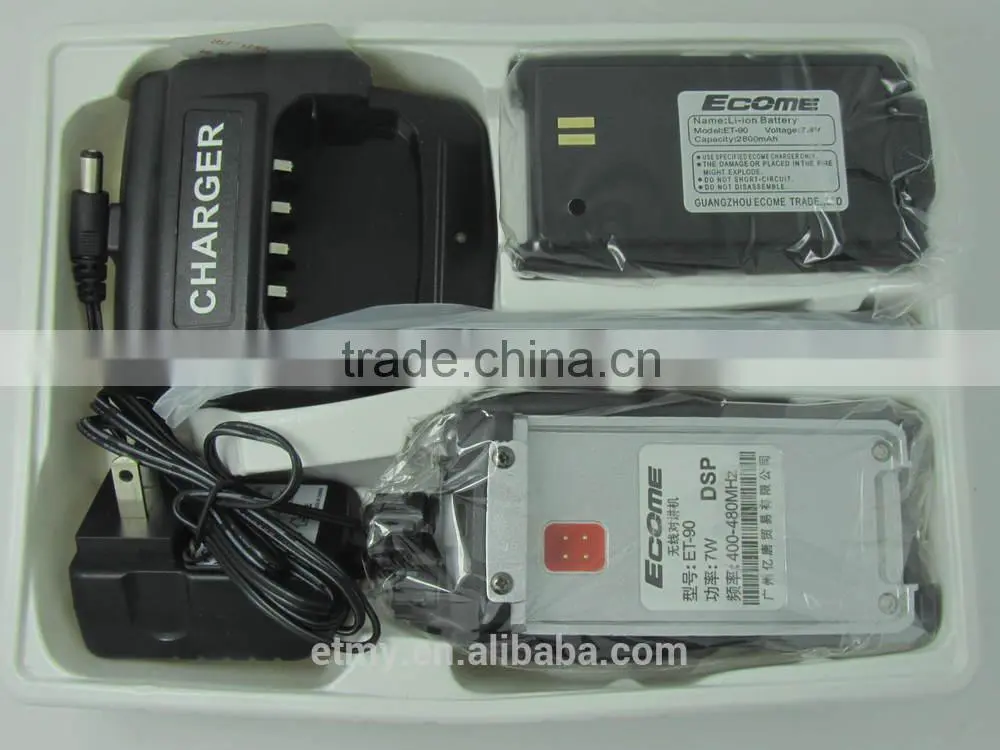

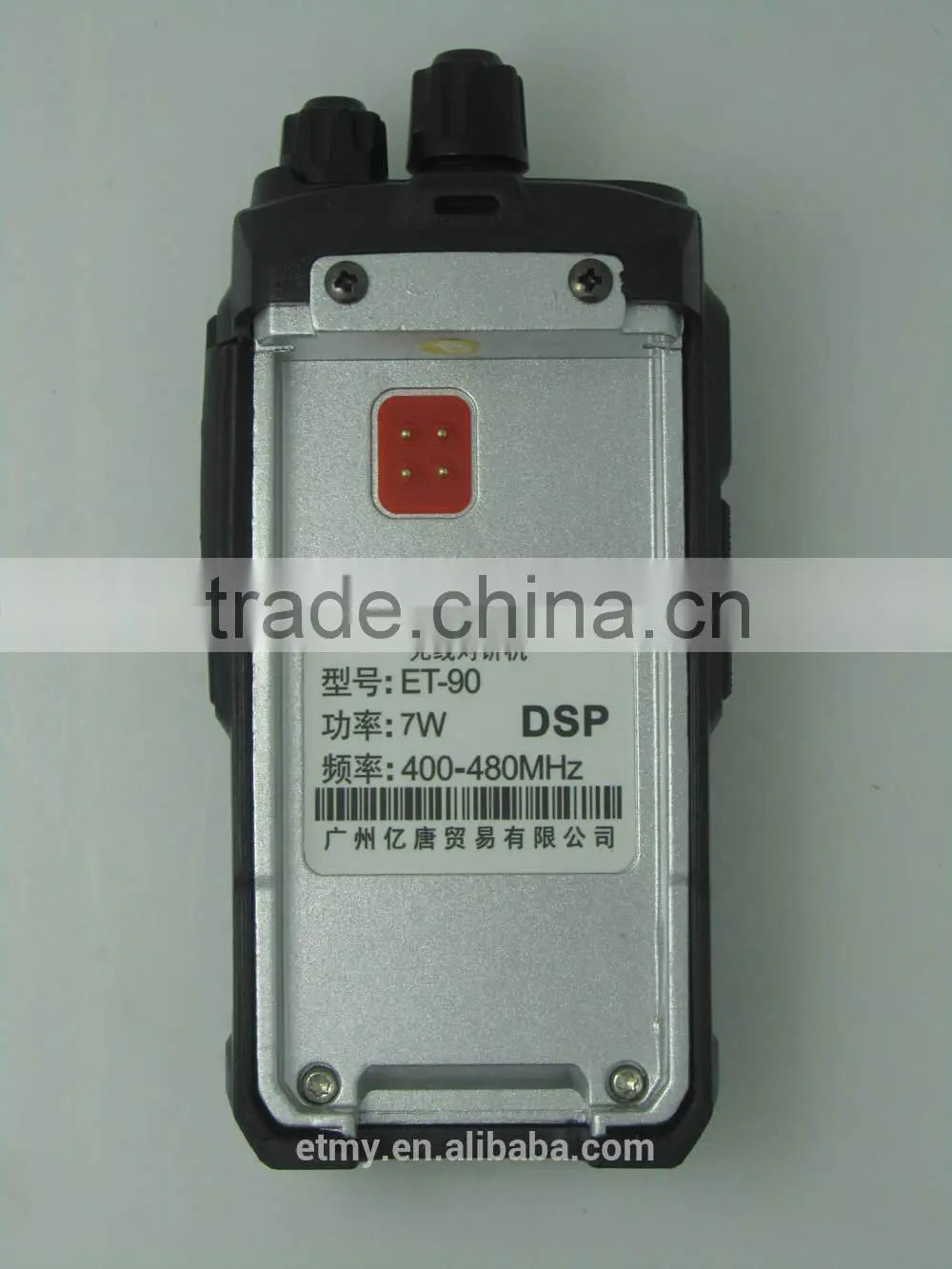

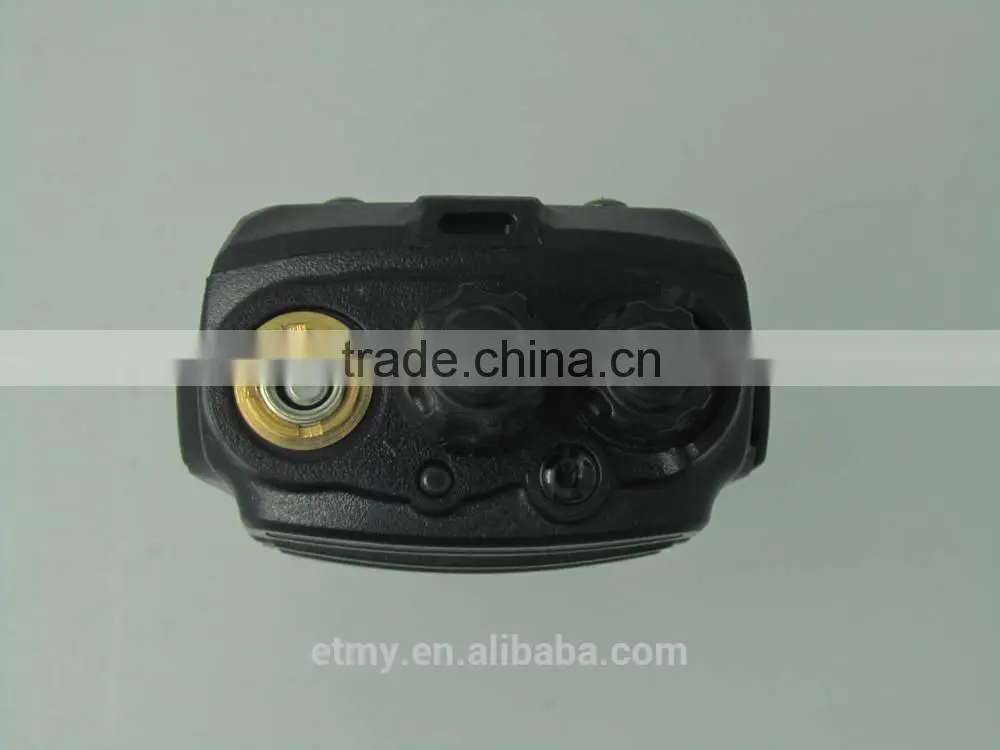

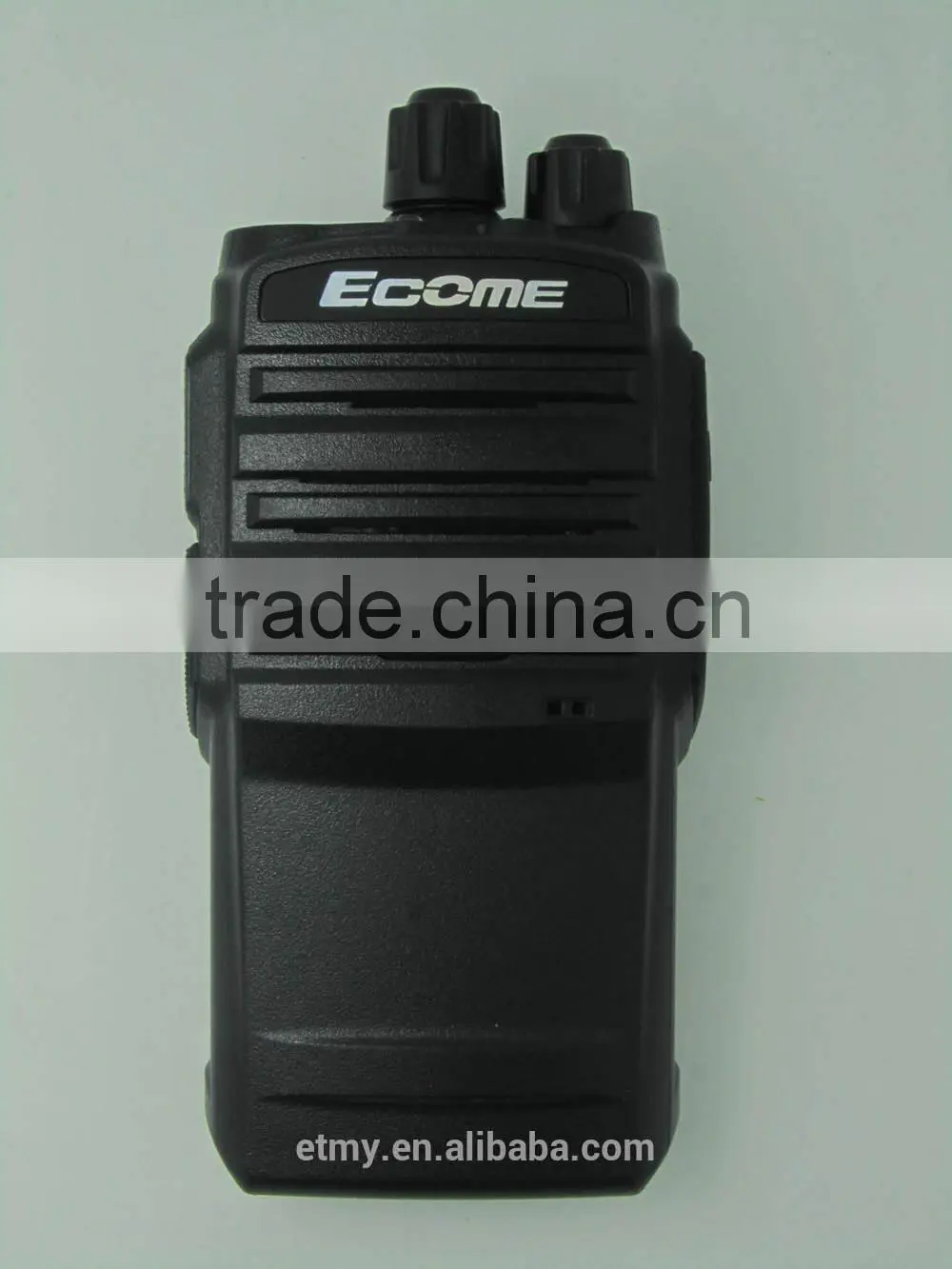

128 Channel Wireless Wokie Tokie ET-90 Made in China

Name: 128 Channel Wireless Wokie Tokie ET-90 Made in China
Brand: Ecome
SKU: 100512127
Availability: InStock

US$ 40 - 90 MOQ: 2 Pieces

Key Specifications

Place of Origin:

China

Brand Name:

Ecome

Model Number:

ET-90

Guangzhou Etmy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Ecome

Model Number ET-90

Type Handheld

Frequency Range vhf 136-174mhz ; uhf 400-480mhz

Storage Channel 128

Talk Range 3-8km

General

Frequency Range:	136.00-174.00 MHz
Frequency Range:	400.00- 520.00MHz
Storage Channel	128
Step Frequency	2.5/5/6.25/10/12.5/20/25KHz
Rated voltage	DC 7.4V
Frequency Stability	±2.5ppm
Work Temperature	-20 ℃to +60℃
Battery Capacity	H-1800m Ah (Li-ion Battery)
Battery Life	About 12 Hours
Frequency Combination	PLL frequency synthesis
Antenna Impedance	50 Ω
Wok Mode	Same Frequency simplex Operation or Different Frequency simplex Operation
Dimension	110x58x32 mm (Excluded Antenna)

Transmitter

Output Power	4W/1W
Modulation Mode(W/N Band)	FM (F3E)
Maximum Frequency Deviation (W/N Band)	≤5 KHz
Spurious Power	≤7.5 µW
Adjacent channel power	≤-65dB/≤-60dB
Audio Distortion	<5 %
SNR	≥-45dB/≥-40dB
CTSCC/DCS Frequency Deviation(W/N Band)	0.7±0.1KHz (W), 0.4±0.1KHz (N)
Modulation Sensitivity	8-12mV
Transmitting Current	≤1500mA

Receiver

Sensitivity	<0.20 µ V (12dB SINAD)
Audio Power	1 W
Inter modulation Interference Resistance	≥65dB (W), ≥55dB (N)
Adjacent channel Sensitivity (W/N Band)	≥65dB (W), ≥55dB (N)
Audio Distortion	5 %
Receiving Current	≤ 380m A
