HJBP China Factory Wholesales Non-rechargeable LIMNO2 3V CR14250SE Primary Lithium Battery With High Capacity
hot sale HJBP china factory wholesales non-rechargeable LIMNO2 3V CR14250SE primary lithium battery with high capacity
What Features and advantages of HJBP china factory wholesales non-rechargeable LIMNO2 3V CR14250SE primary lithium battery with high capacity?
- stable working voltage. Nominal voltage 3.0V,90% capacity output under the stable voltage.
- High capacity, the energy density can reach to 330wh/kg or 750wh//l.
- Widely using temperature range, can be operated in -40°C~+70°C.
- Power type can discharge by constant middle current and pulse big current.
- Excellent storage life and reliability. With low self-discharge, yearly selft-discharge rate≤1%.
- Stainless steel container and hermetically structure to make sure the battery could be stored more than 6 years in the room temperature.
- HJBP lithium batteries are environmentally friendly and pollutant free power, it's without mercury, cadmium,lead and other heavy metals.
What Specifications of HJBP china factory wholesales non-rechargeable LIMNO2 3V CR14250SE primary lithium battery with high capacity?
| Item | Parameter | Remark |
|---|---|---|
Material type | Lithium manganese dioxide battery (Li-MnO2 battery) | |
Type | Energy type | |
Model | CR14250SE | |
Cell size ref. | 1/2AA | |
Norminal voltage | 3.0V | |
Norminal Capacity | 1050mAh | cut-off voltage 2.0V |
Standard discharge current | 1mA | |
Constant discharge current(Max.) | 20mA | |
Pulse discharge current(Max.) | 100mA | |
Dimensive Diameter x Height mm | 14.0X25.0 | |
Weight | 10.0g |
What Applications of HJBP china factory wholesales non-rechargeable LIMNO2 3V CR14250SE primary lithium battery with high capacity?
- Smartcard Meter(water meter,ammeter,gas meter),Radio communications,taxi meters.
- Smoke & Anti Theft alarm, Life jacket light, Seismic equipment,CNC Maching.
- Special cordless power tools,Telephone set.
- Industry PC computer, computer RAM,CMOS memory backup power sources.
- Medical instruments.
- Underwater weapon, Military communication, Transmitter-receiver, Portable communication equipment, TPMS and so on.
What Available Termination Of HJBP china factory wholesales non-rechargeable LIMNO2 3V CR14250SE primary lithium battery with high capacity?
- -/P(AX) axial pins.
- -T/PT2(AV/VB/VBR/VX/VXR/VY/FT) radial pins.
- -/PT/TP(LD/LD) polarized tabs.
- JST/MOLEX series plug.
- Customized,special terminations can be made as requested.
What is HJBP lithium primary battery series(ENERGY TYPE Li-MnO2)?
Model | size ref. | Nominal voltage(V) | Nominal capacity(mAh) | nstant current(mA) | Max. Pulse current(mA) | Dimension Dia.×Hgt.mm | Weight (g) |
|---|---|---|---|---|---|---|---|
CR10450BL | AAA | 3.0 | 850 | 10 | 100 | 10.0×45.0 | 10 |
CR14250BL | 1/2AA | 3.0 | 900 | 7 | 70 | 14.5×25.2 | 11 |
| CR14335BL | 2/3AA | 3.0 | 1100 | 8 | 80 | 14.5×33.5 | 16 |
CR14505BL | AA | 3.0 | 1800 | 10 | 100 | 14.5×50.5 | 22 |
CR17335BL | 2/3A | 3.0 | 1800 | 10 | 100 | 17.0×33.5 | 22 |
CR17450BL | - | 3.0 | 2400 | 15 | 150 | 17.0×45.0 | 28 |
CR14250SE | 1/2AA | 3.0 | 1050 | 20 | 100 | 14.5×25.2 | 10 |
CR14505SE | AA | 3.0 | 2350 | 50 | 280 | 14.5×50.5 | 19.5 |
CR17335SE | 2/3A | 3.0 | 2100 | 25 | 150 | 17.0×33.5 | 17 |
CR15270SE | CR2 | 3.0 | 1000 | 8 | 80 | 15.5×27.0 | 13 |

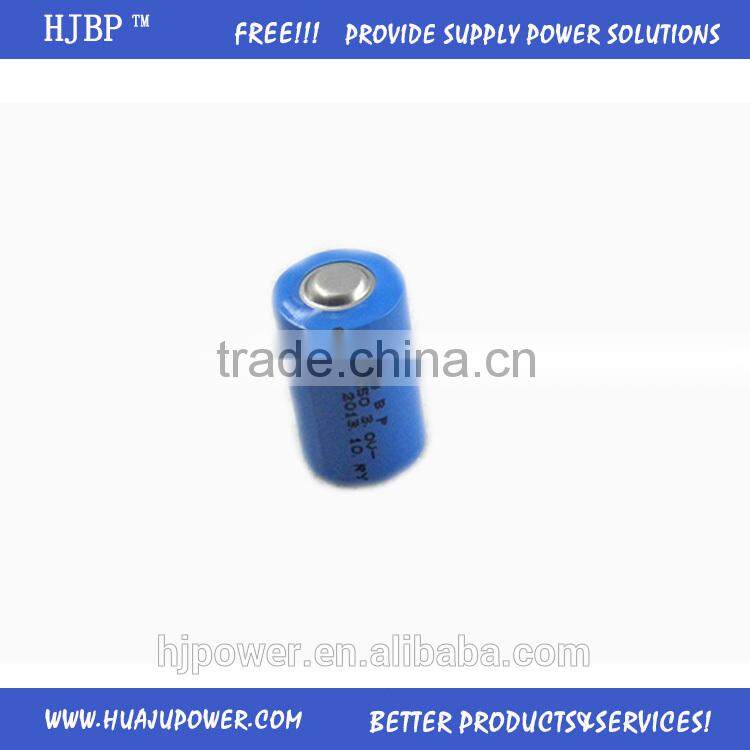

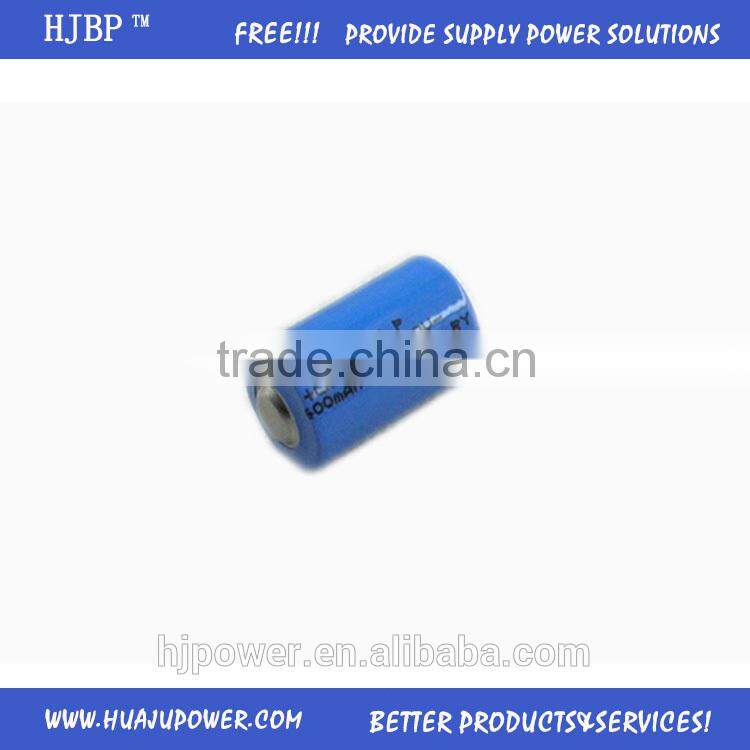

HJBP Product Photos

HJBP Certifications
HJBP Company View

HJBP Trading Process
HJBP Teamwork:
- Professional, our team can offer expertise and efficient services.
- Response promptly, all E-mail will be answered within 1 working day.
- Arrange quickly, orders will be arranged once payment or bank slip received.
- We will be 100% backup and provide excellent after sales service for our clients.
HJBP Trade Terms:
- Payment: T/T, Western Union, MoneyGram,PayPal(sample,small order);L/C
30% deposits,70% balance before deliverying(batch order). - Delivery Time: 7-10days(stock sample),10-15days(small order),35-40days(batch order)
- MOQ: 10pcs
- Package Informations:
Sample, within a single plastic bag, outside the carton, carton.
Batch, trays, plastic bags, carton.
Why Choose HJBP?
- Earliest Chinese lithium thionyl chloride battery factory.
- More than 20 years of experience in military technology and manufacturing.
- Plant Area: 10,000m2
- Certification: ISO9001:2008 certified,most of products are approved by CE,ROHS,UN38.3 and SGS.
- Best Quality & Best Service with Competitive price.
- Exported countries: North America,Southeast Asia,Western Europe,Africa,Russia,etc.
- Manufactured batteries to the highest standard and with 1 year warranty.
from the date of shipment. HJBP guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customers abuse and misuse. - Accepted SMALL order QTY to help you to open their markets.
- Arrange door to door service by DHL,FEDEX,UPE,EMS for sample and small order.
By Air or by Sea for batch goods or FCL; Airport/ Port receiving.
Assist customers with freight forwarder or goods transport method. - OEM & ODM service are welcomed.
HJBP FAQ?
- Q1: What's the MOQ?
A1: We can accept small MOQ at the beginning to help customer enter into market firstly. - Q2: What's your packing methods?
A2: Card Pack, Inner Box, Tray Carton, Shrink Pack, Carton Pack or upon to customers' requirements. - Q3: What's the delivery time?
A3: 7~10 days delivery time for battery samples, 15~30 days for formal battery orders. - Q4: What's the warranty?
A4: For the batteries, we have 1 year warranty. If any quality problems on our side occured during this warranty period, we will replace them at our cost (including the shipping cost). - Q5: What's the price?
A5:?We provide reasonable, competitive price and recommend suitable batteries to our customers. - Q6: What's the service?
A6: Our policy is to provide more faster & safer & easier service for our customers. - Q7: What's the marketing supports?
A7: We are willing to help you do the marketing together. We can provide different free promotions, and we can also support you do some attractive suitable local advertisement. - Q8: Can we visit your factory?
A8: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
