Two Way Radio Baofeng for UV-3R+ Walkie Talkie With 3W

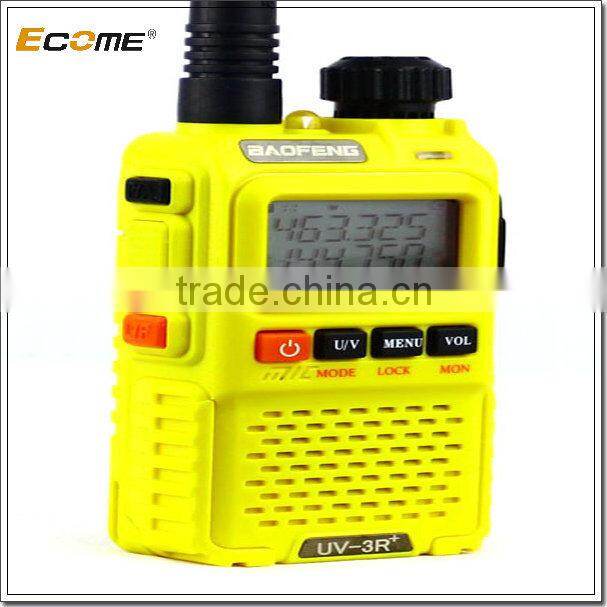

Two Way Radio Baofeng for UV-3R+ Walkie Talkie With 3W photo-1

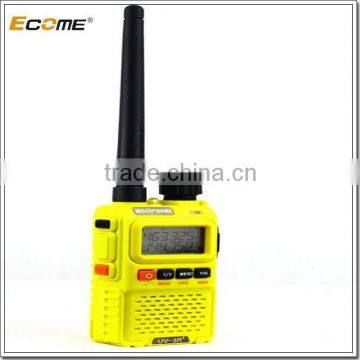

Two Way Radio Baofeng for UV-3R+ Walkie Talkie With 3W photo-2

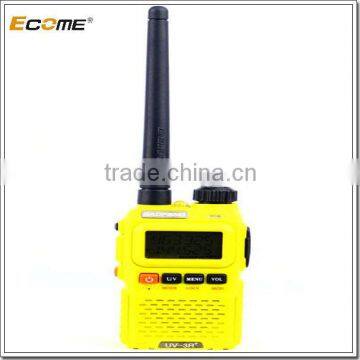

Two Way Radio Baofeng for UV-3R+ Walkie Talkie With 3W photo-3

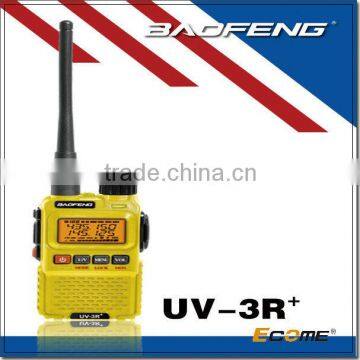

Two Way Radio Baofeng for UV-3R+ Walkie Talkie With 3W photo-4
US$ 9 - 30 MOQ: 10 Acres
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
BAOFENG
Model Number:
UV-3R+
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name BAOFENG
Model Number UV-3R+
Type Handheld
Dimensions 99x55x 30 mm (Excluded Antenna)
Frequency Range 136.00-174.00 MHz,400.00-470.00 MHz
Storage Channel 99, 99
Talk Range 5-10km
Product Description

Features

1)       Output:3W

2)       Frequency Range: 136.00-174.00 MHz

                     400.00-470.00 MHz

3)       PC or Manual Program

4)       BCL Function

5)       Battery Saving

6)       DTMF Code

7)       Dual Band, Dual Display and Dual Standby

8)       Emergency Alarm

9)       50 CTCSS and 104 DCS Codes

10)   Keypad Tone Setting

11)   VOX Function

12)   High &Low Power Switchover

13)   Priory Scanning Function

14)   Wide/Narrow Band Selection

15)   Time-out Timer (TOT)

16)   1750 KHz Relay Forwarding Confirmed

17)   FM Radio Function

18)   Different Frequency Setting

19)   Dimension: 99x55x30mm

20)   Packing Details: 50 Units/CTN, Carton Size: 51x45x71cm

                   N.W:22.5KGS,   G. W: 23.5KGS



Unity Section:



Frequency Range:

136.00-174.00 MHz

400.00- 470.00MHz

Storage Channel

99

Step Frequency

2.5/5/6.25/10/12.5/20/25KHz

Rated voltage

DC 3.7V

Battery Capacity

H-1500 mAh

Battery Life

About 10 Hours

Frequency Stability

±2.5ppm

Work Temperature

-20 to +60

Frequency Combination

PLL frequency synthesis

Antenna Impedance

50 Ω

Wok Mode

Same Frequency  simplex Operation or Different Frequency  simplex Operation

Dimension

99x55x 30 mm (Excluded Antenna)



Transmitter



Output Power

3W

Modulation Mode(W/N Band)

FM (F3E)

Maximum Frequency Deviation (W/N Band)

<5KHz(W), <2.5KHz(N)

Spurious Power

≤7.5 µW

Adjacent channel power

65dB (W) ,55dB (N)

Spurious Radiation

<-60 dB

Audio Distortion

<5 %

SNR

45dB(W), 40dB(N)

CTSCC/DCS Frequency Deviation(W/N Band)

0.7±0.1KHz (W), 0.4±0.1KHz (N)

Modulation Sensitivity

8-12mV

Transmitting Current

≤1500mA



Receiver



Sensitivity

<0.20 µ V (12dB  SINAD)

Audio Power

1 W

Inter modulation Interference Resistance

≥65dB (W), ≥55dB (N)

Adjacent channel Sensitivity (W/N Band)

≥65dB (W), ≥55dB (N)

Audio Distortion

5 %

Receiving Current

≤ 400m A





Two way radio Baofeng for UV-3R+ walkie talkie with 3W



Packaging & Shipping



Shipping & Payment:

MOQ:

1pc (small or trial order), 100pcs for bulk order

Packaging:

battery in Polybag and box packing, 100pcs /carton

Loading port:

HongKong or Guangzhou

Delivery date:

Within 2-5 days after payment confirmed

Terms of Payment:

T/T, Western Union, Paypal, Escrow

Warranty:

Six month







Delivery Time and Way:



Hong Kong Post
Singapore Post

DHL,UPS,
FedEx,EMS,TNT

Air
Transportation

Sea
Transportation

Sample Order Under 2KG

10-20 working days

5-7 working days

Inapplicability

Inapplicability

Other Order More Than 2KG

Inapplicability

5-7 working days

7-10 working days

15-25 working days



Two way radio Baofeng for UV-3R+ walkie talkie with 3W
