Help CenterStable Quality High Wear-resistant Cemented Carbide Wear Parts
Related Products
-
High Quality High Wear-resistant Cemented Carbide Wear PartsUS$ 61 - 109MOQ: 1 Kilogram -
Bottom Price High Wear-resistant Cemented Carbide Wear PartsUS$ 61 - 109MOQ: 1 Kilogram
-
High Wear Resistance Customized Tungsten Carbide Sand Blasting NozzleUS$ 61 - 109MOQ: 1 Kilogram
-
Hot Sale Customized Cemented Carbide Wear-resistant PartsUS$ 61 - 109MOQ: 1 Kilogram
-
Various Types Manufacture Supply Customized Tungsten Carbide Wear PartsUS$ 59 - 109MOQ: 1 Kilogram
Specification:
1. 100% raw material
2. 14 years experience
3. ISO 9001
4. OEM & ODM
5. Customized products are acceptable

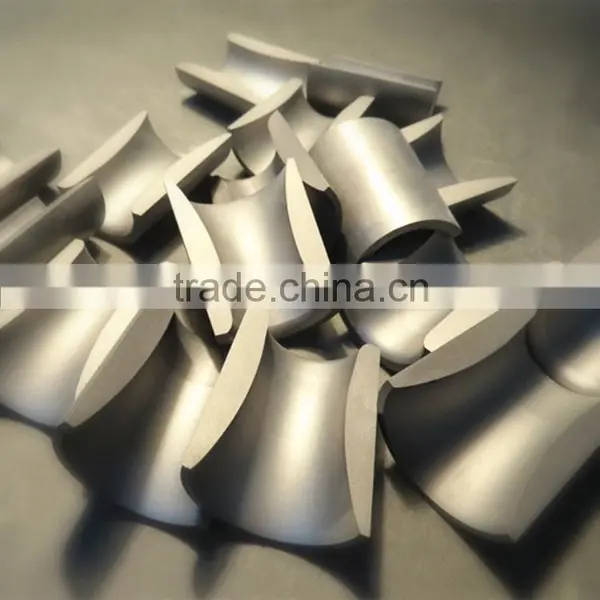

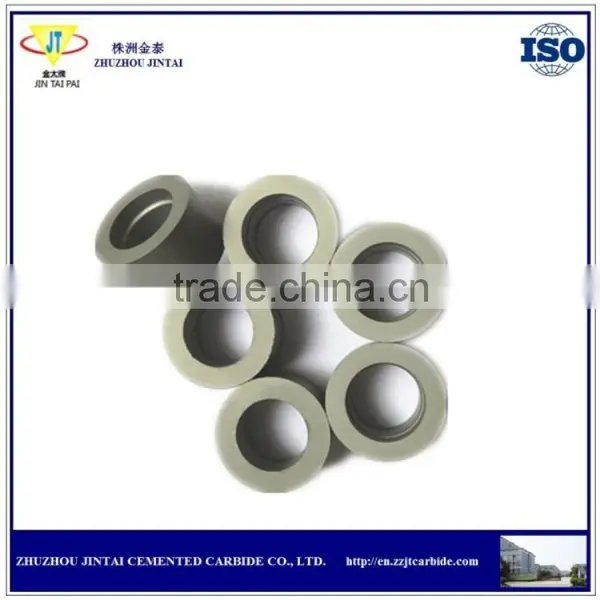

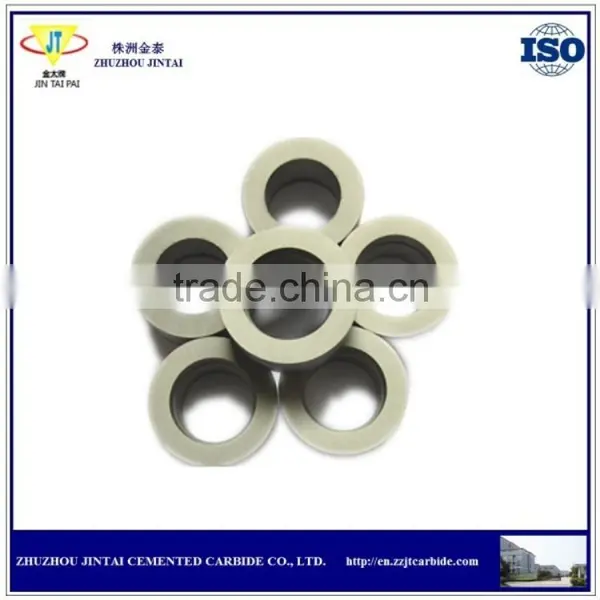

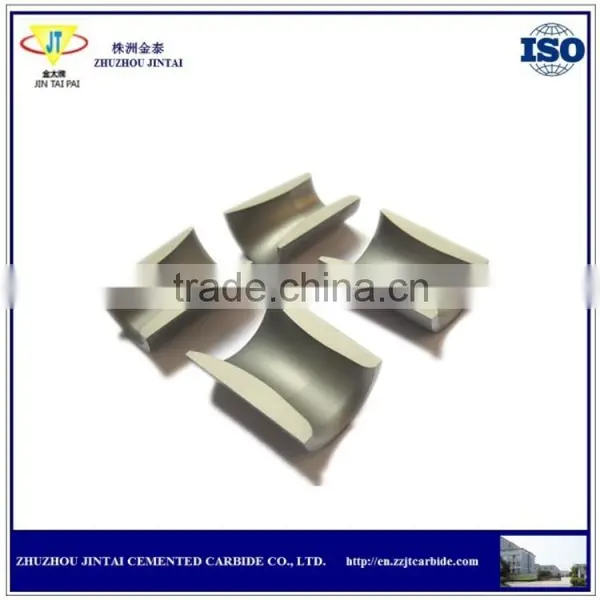

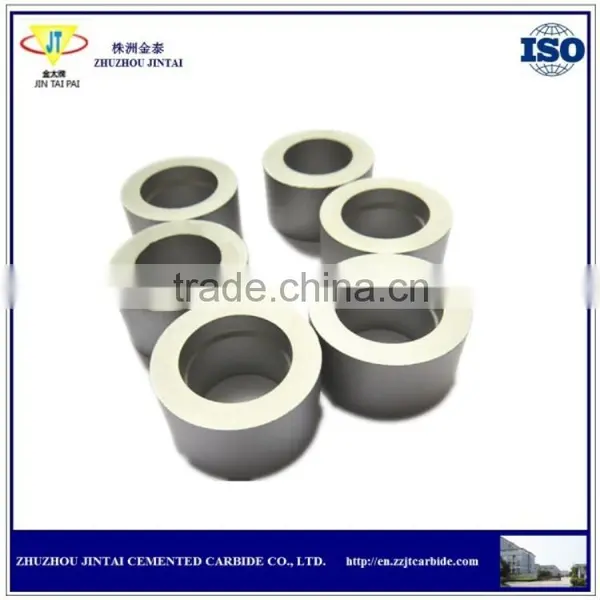

Display of Tungsten Carbide Wear Parts
Tungsten Carbide Wear Parts are of wide application, especially for wear resistance.
Customized Tungsten Carbide Wear Parts are available!
Tungsten Carbide Wear Parts with Common Grades
Grade |
Physical and Mechanical Properties |
Recommended Applications |
||
Density g/cm3 |
Hardness no less than HRA(HV) |
TRS Mpa |
||
YG6X |
14.8-15.1 |
91 |
1420 |
For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress. |
YG6 |
14.7-15.1 |
89.5 |
1520 |
For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm. |
YG8 |
14.6-14.9 |
89 |
1470 |
For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts. |
YG8C |
14.5-14.9 |
88 |
1710 |
Suitable set of percussive and rotating drilling and rotary impact masonry drill bit. |
YG11C |
14-14.4 |
86.5 |
2060 |
Suitable for large drill chisel Insert button bits of hard rock flake or column. |
YG15 |
13.9-14.2 |
86.5 |
2060 |
For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drinning and punching and impacting dies. |
YG20 |
13.4-13.8 |
83.5 |
2480 |
For making punching and impacting dies for watch parts and musical instrunments springs, batterles shells and tooth pastes shells, etc., Also for making punching and impacting dies for steel balls of small diameters, screws and nuts, etc. |
YG20C |
13.4-13.8 |
82 |
2480 |
For making cold heading and cold punching and impacting dies for standardized parts, bearings, bullets head and shell, etc. |
YK20 |
14.3-14.6 |
86 |
2250 |
For wrapped percussive-Rotary drilling bits, drill hard rock better than hard rock. |
Any Grade will be acceptable as your requirements!
The cost of new mold needs to be paid unless the order quantity is over 50kg.
Customer NOTICE
To save your value time, please inform us of the following information:
1. Grade
2. Type/Dimension/Clear Drawing
3. Available tolerance
4. Order quantity for each type
5. Blanks or finished products
6. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
Our Products Ranges
Tungsten Carbide Balls
Tungsten Carbide Rods
Tungsten Carbide Strips
Tungsten Carbide Plates
Tungsten Carbide Rollers
Tungsten Carbide Cutters
Tungsten Carbide Buttons
Tungsten Carbide Tire Studs
Tungsten Carbide Disc Cutters
Tungsten Carbide Drawing Dies
Tungsten Carbide Coal Drilling Bits
Tungsten Carbide Customized Molds
Tungsten Carbide Road-digging Teeth
Company Profile
Zhuzhou Jintai Cemented Carbide Co., Ltd
Packaging & Shipment
Contact Us
Pls contact us if you have any questions!
Send Inquiry to This Supplier
