Specification:
1. 100% raw material
2. 14 years experience
3. ISO 9001
4. OEM & ODM
5. Customized products are acceptable

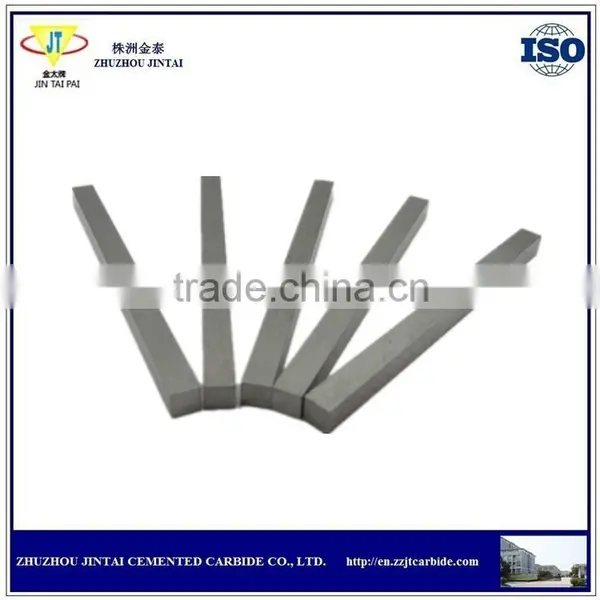

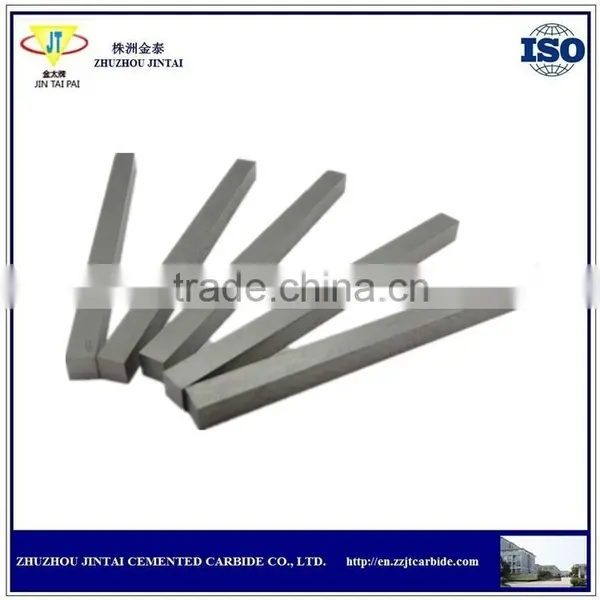

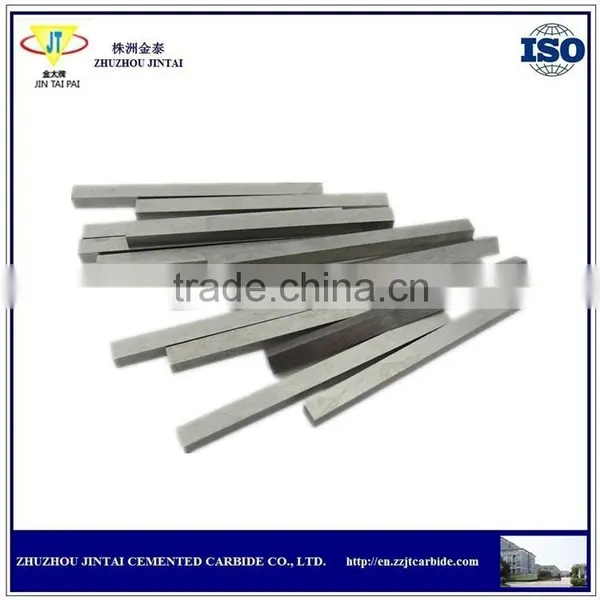

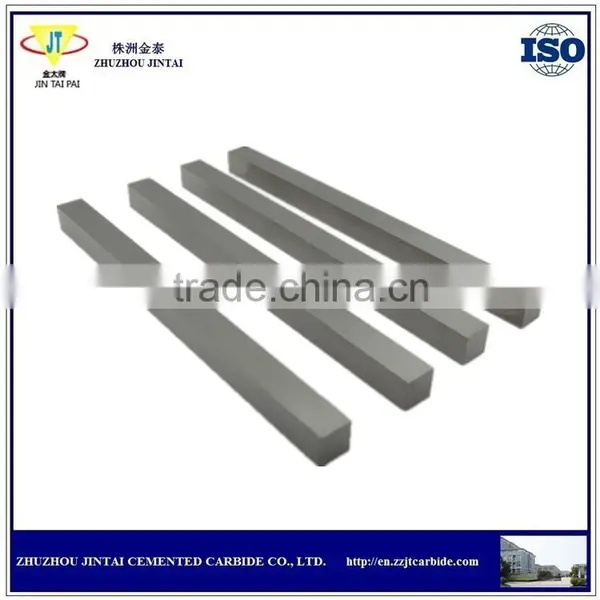

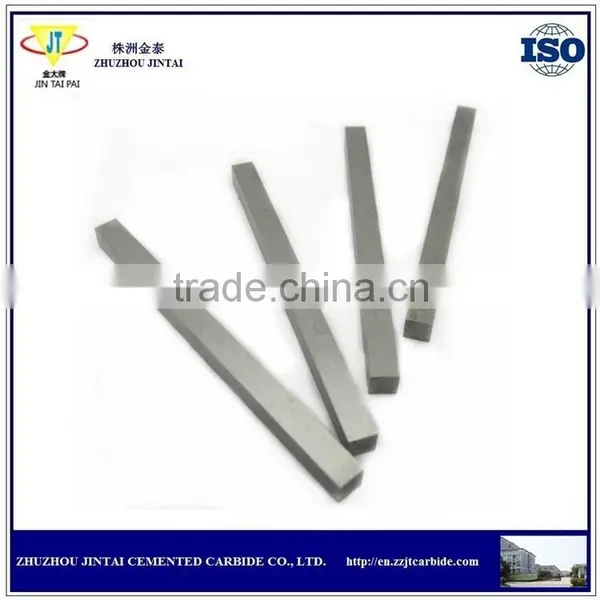

Display of Tungsten Carbide Square Bars
Tungsten Carbide Square Bars with Different Sizes
Customized Tungsten Carbide Square Bars are available!
Tungsten Carbide Square Bars with Common Grades
Grade |
Physical and Mechanical Properties |
Recommended Applications |
||
Density g/cm3 |
Hardness HRA(HV) |
TRS Mpa |
||
YG6X |
14.8-15.1 |
91 |
1800 |
It's suitable for drawing steel wire, nonferrous metal wire and rods with diameter less than 6.0mm under low-stress condition. |
YG6 |
14.7-15.1 |
89.5 |
1900 |
it's suitable for drawing steel , nonferrous metal and alloyed rods with diameter less than 20mm under low-stress condition. It is also suitable for drawing tubes with diameter less than 10mm. |
YG8 |
14.6-14.9 |
89 |
2000 |
It's suitable for drawing and adjusting steel, nonferrous metal and alloyed rods and tubes. It's also suitable for making mechanical parts, tools and quick-wear part (such as nozzle, bearing point, guide means, upsetting die and perforating tool)… |
YG15 |
13.9-14.2 |
86.5 |
2500 |
I't is suitable for drawing steel rods and tubes under high compression ratio. It's suitable for the upset forging, perforation presing tools working under high-press condition. |
YG20 |
13.4-13.8 |
85 |
2600 |
It's suitable for making impact dies such as impact watch parts, spring lamination of musical instrument, impact battery case, toothpaste case die. It's suitable for punching dies of small size steel spherr, bolt and screw cap. It's suitable for pressure pad of hot rolling spiral drill. |
YG20C |
13.4-13.8 |
82 |
2600 |
Suitable for making coldheading dies, cold press dies used in standard part, brearing and tool industries. Also suitable for making punching dies of warhead and cartridge case. |
Any Grade will be acceptable as your requirements!
Customer NOTICE
To save your value time, please inform us of the following information:
1. Grade
2. Type/Dimension/Clear Drawing
3. Available tolerance
4. Order quantity for each type
5. Blanks or finished products
6. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
