Superior Tungsten Carbide Solid Bars for Wholesale

Negotiable MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)

Key Specifications

Material:

100% virgin tungsten carbide

Zhuzhou Jintai Cemented Carbide Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Guangzhou Beijing

Delivery Detail:

Delivery time depends on order quantity.

Material 100% virgin tungsten carbide

Product Description

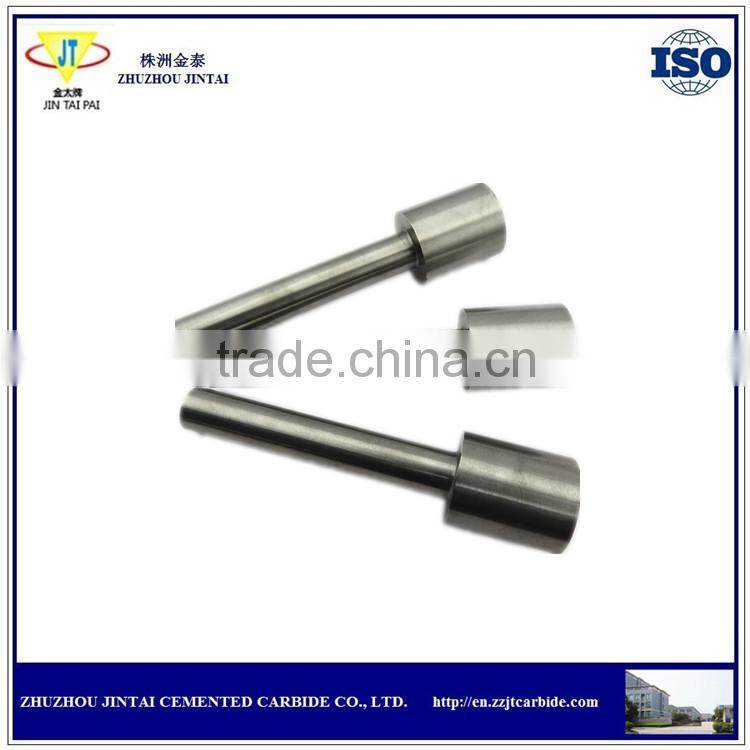

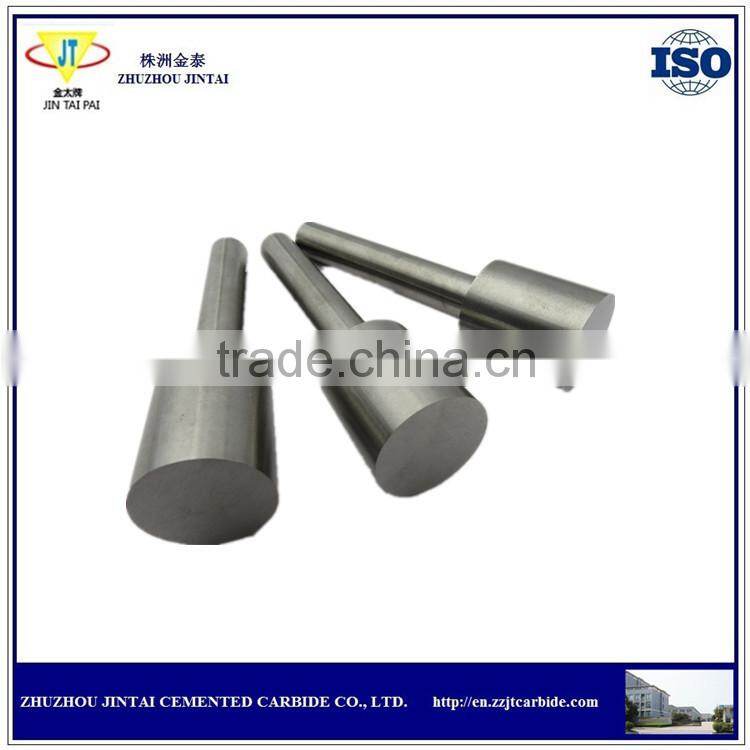

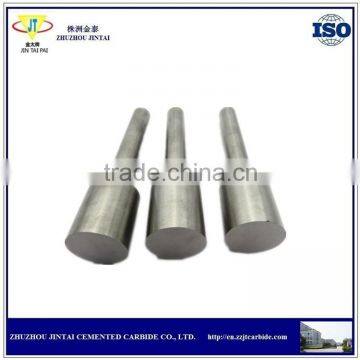

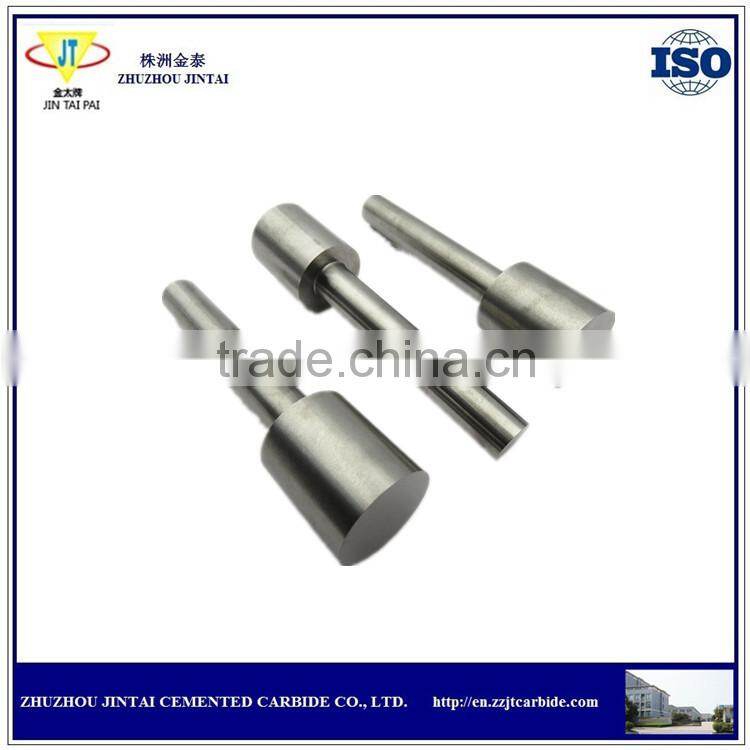

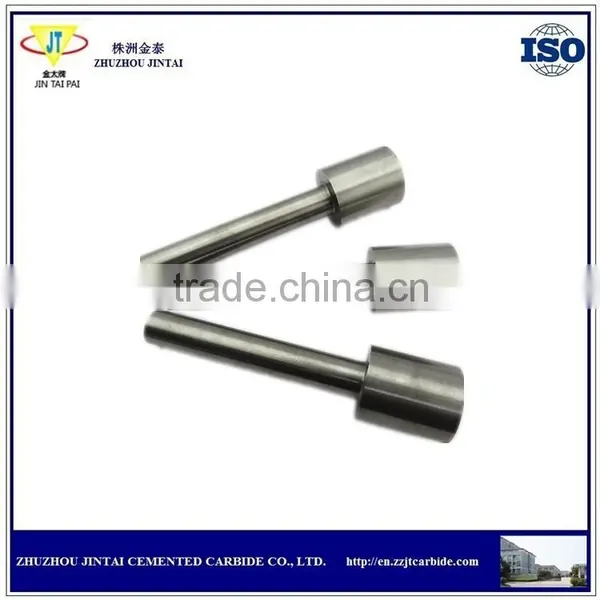

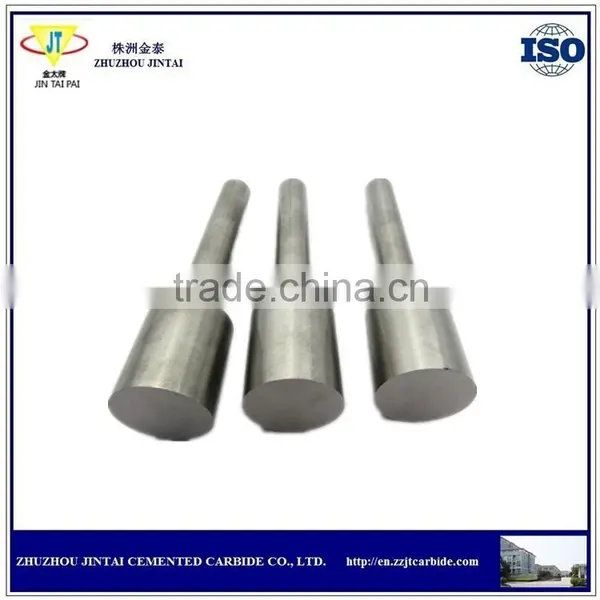

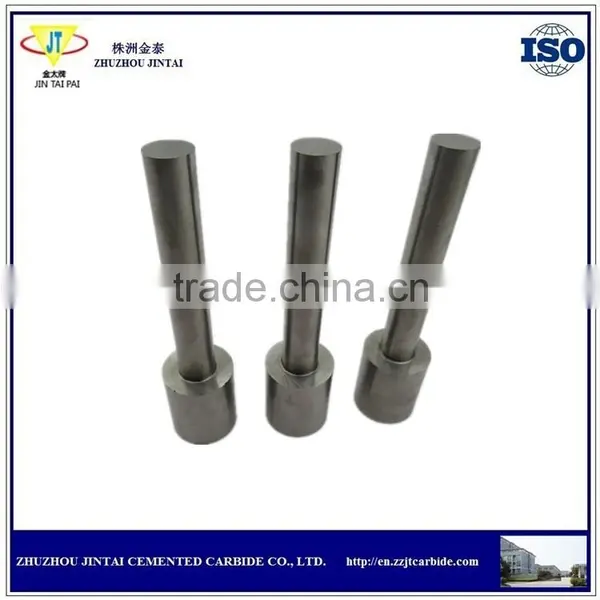

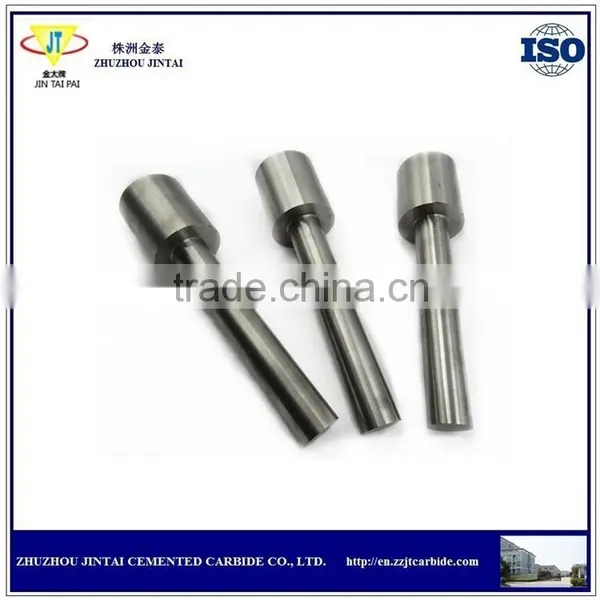

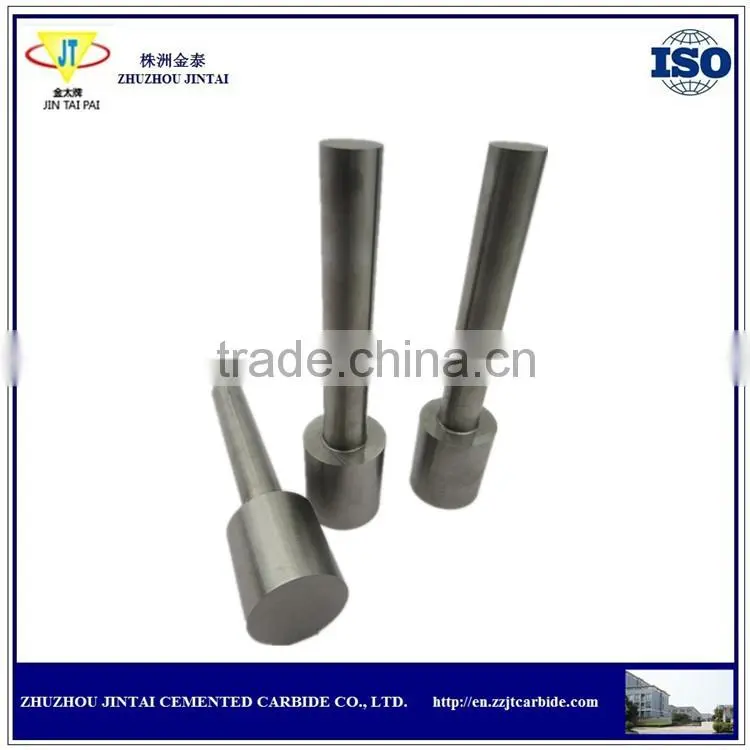

More photos of tungsten carbide solid bars

The size of tungsten carbide solid bars is Dia.26 *30mm, Dia.13*110mm.

Grade & Application of tungsten carbide solid bars

Grand	Physical and mechanical properties			Applications recommended
Grand	Density g/cm³	Hardness No Less Than HRA(HV)	TRS No Less Than (Mpa)	Applications recommended
YG6X	14.4-14.9	91	1700	It's suitable for the finish machining of chilled cast iron, ducttle cast iron, heat-resisting alloy steet, nonferrnous metal and nonmetal.
JL05	14.7-15.1	91.5	1800	It's suitable for the finish machining of chilled cast iron , ducttle cast iron , heat-resisting alloy steet, nonferrous metal and nonmetal, and it can make for the wear part with high quality requirement.
YG10X	14.3-14.6	90	2000	Good commonality, high hardness and loghness. It's suitable for manufacturing various kinds of intergral end mills. Such as integral drill, milling cutter, hote boring cutter, reamer bit and so on. It's mianly used for the finish machining of various kinds of cast iron and nonferrous metal.
JL10	14.2-14.5	90.5	2200	Good commonality, with high hardness and TRS. It's used for the semifinishing of varous steel and nonferrous metal.
JL15	14.5-15.0	91.5	2400	Fine particle size product, with good wear resistance and shock resistance. It is used for the semifinish and finish maching of various metal and nonmetal.
JL20	14.7-15.1	92.5	3000	Fine particle size product, with excellent wear resistance and shock resistance. It is used for the finish maching of various metal nonmetal. It also can be used for maching heat-resisted steel, stainless steel, nickel base, high-temperature alloy.
