Stamping die with high performance

FOB Price

USD $3 - $50 / Piece

10 Pieces(Min.Order)

Supply Ability 50 Ton / Tons per Month
Port Shanghai Guangzhou Beijing
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Hunan, China	Brand Name:	JINTAI PAI	Model Number:	various
Alloy Specification:	YG6C/YG8C/YG11C/YG15C/ZD15 etc.

Product Description

Specification:

1. 100% raw material

2. 14 years experience

3. ISO 9001

4. OEM & ODM

5. Customized products are acceptable

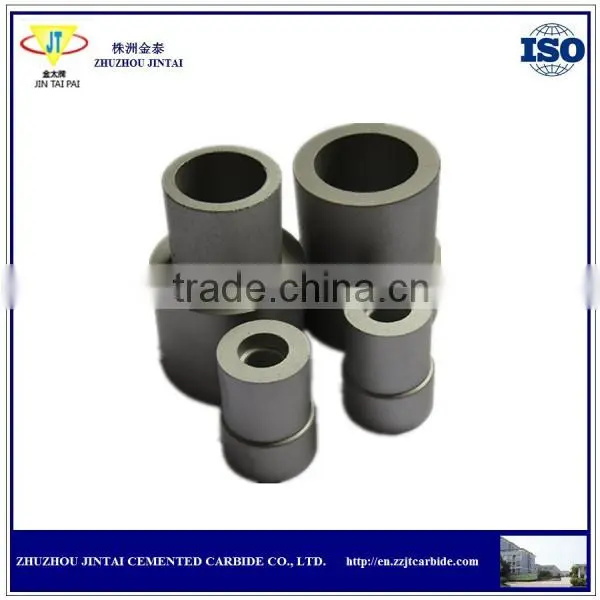

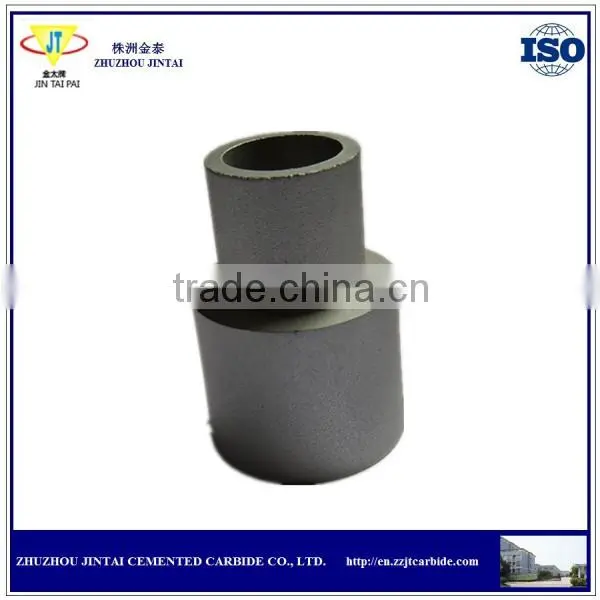

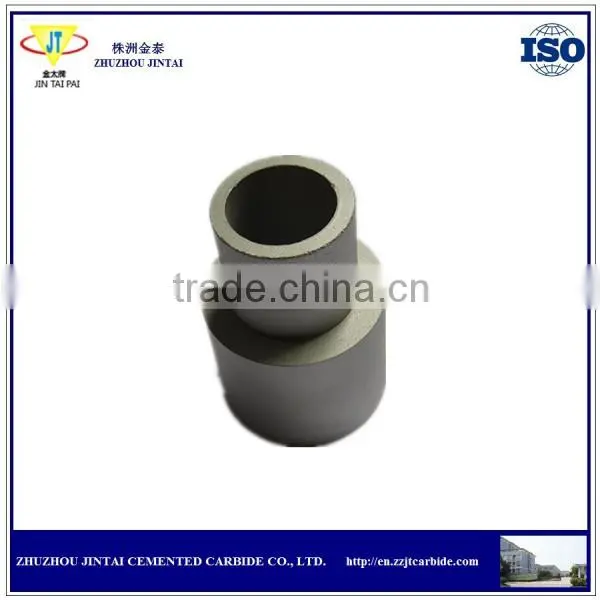

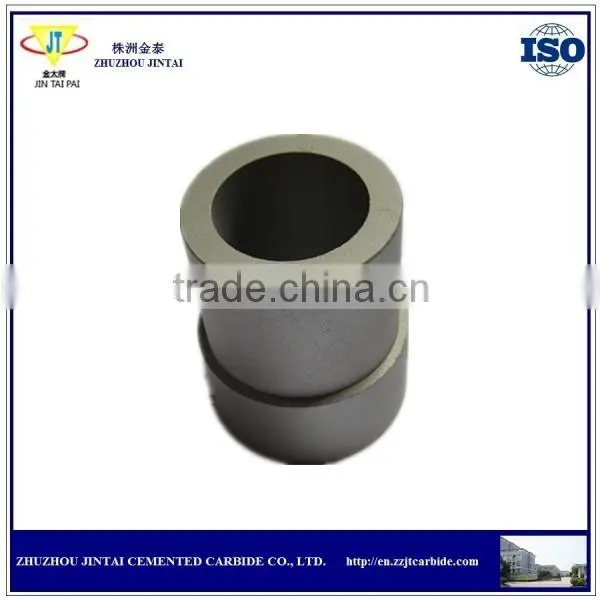

Display of Stamping Die

Customized Tungsten Carbide are available!

Stamping Die with Common Grades

Grade	Physical and Mechanical Properties			Recommended Applications
Grade	Density g/cm³	Hardness no less than HRA(HV)	TRS Mpa	Recommended Applications
YG6X	14.8-15.1	91	1420	For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress.
YG6	14.7-15.1	89.5	1520	For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm.
YG8	14.6-14.9	89	1470	For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts.
YG8C	14.5-14.9	88	1710	Suitable set of percussive and rotating drilling and rotary impact masonry drill bit.
YG11C	14-14.4	86.5	2060	Suitable for large drill chisel Insert button bits of hard rock flake or column.
YG15	13.9-14.2	86.5	2060	For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drinning and punching and impacting dies.
YG20	13.4-13.8	83.5	2480	For making punching and impacting dies for watch parts and musical instrunments springs, batterles shells and tooth pastes shells, etc., Also for making punching and impacting dies for steel balls of small diameters, screws and nuts, etc.
YG20C	13.4-13.8	82	2480	For making cold heading and cold punching and impacting dies for standardized parts, bearings, bullets head and shell, etc.
YK20	14.3-14.6	86	2250	For wrapped percussive-Rotary drilling bits, drill hard rock better than hard rock.

Any Grade will be acceptable as your requirements!

Customer NOTICE

To save your value time, please inform us of the following information:

1. Grade

2. Type/Dimension/Clear Drawing

3. Available tolerance

4. Order quantity for each type

5. Blanks or finished products

6. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
