Help CenterTop Quality Tungsten Carbide Drawing Die From Zhuzhou Manufacture
Related Products
-
Wear Resistant Tungsten Carbide Drawing Die From Zhuzhou ManufactureNegotiableMOQ: 1 Piece -
Hot Sale Tungsten Carbide Drawing Die From Zhuzhou ManufactureNegotiableMOQ: 1 Piece
-
Professional Manufacture Direct Sale Tungsten Carbide Drawing Die From Zhuzhou ManufactureNegotiableMOQ: 1 Piece
-
Various Tungsten Carbide Mould From ZhuzhouUS$ 3 - 50MOQ: 10 Pieces
-
Wholesale High Wear-resistant Tungsten Carbide Mould MakingUS$ 59 - 109MOQ: 1 Kilogram
More photos about tungsten carbide drawing die

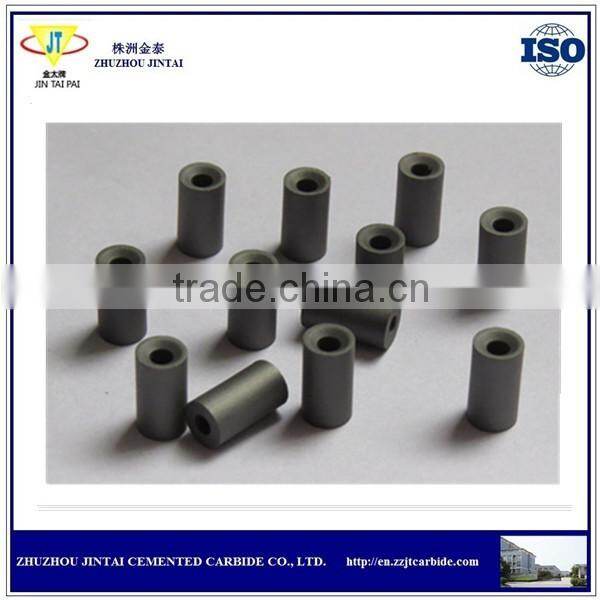

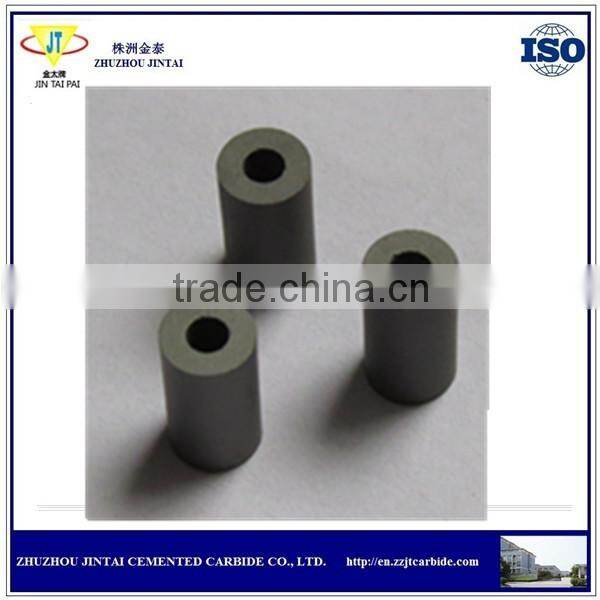

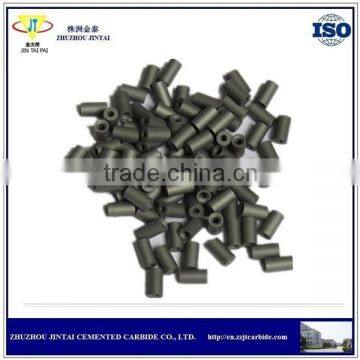

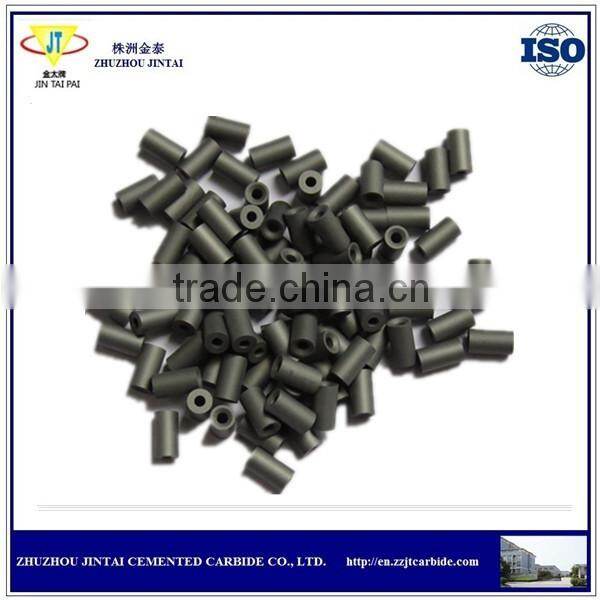

This is customerized tungsten carbide drawing die.
Grade & Application of tungsten carbide drawing die
Grand |
Physical and mechanical properties |
Applications recommended |
||
Density g/cm3 |
Hardness No Less Than HRA(HV) |
TRS No Less Than (Mpa) |
||
YG6X |
14.8-15.1 |
91 |
1420 |
For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress. |
YG6 |
14.7-15.1 |
89.5 |
1520 |
For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm. |
YG8 |
14.6-14.9 |
89 |
1470 |
For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts. |
YG15 |
13.9-14.2 |
86.5 |
2060 |
For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drinning and punching and impacting dies. |
HK12 |
14.2-14.7 |
87.5 |
2100 |
|
HY10 |
14.1-14.5 |
87.5 |
2060 |
|
YG20 |
13.4-13.8 |
83.5 |
2480 |
For making punching and impacting dies for watch parts and musical instrunments springs, batterles shells and tooth pastes shells, etc., Also for making punching and impacting dies for steel balls of small diameters, screws and nuts, etc. |
JL50 |
13.8-14.2 |
85 |
2300 |
|
TL40.5 |
13.0-13.6 |
81 |
2480 |
For making cold heading and cold punching and impacting dies for standardized parts, bearings, bullets head and shell, etc. |
YG20C |
13.4-13.8 |
82 |
2480 |
|
YG20D |
13.4-13.8 |
82 |
2300 |
|
YSN30 |
13.9-14.9 |
87 |
1900 |
It's a demagnetized cemented carbide suitable for manufacturing forming tools in industries of magnetism. |
Customer NOTICE:
To save your value time, please inform us of the following information:
1, Grade
2, Type
3, Dimension for each type
4, Blanks or finished products
5, If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
About Zhuzhou Jintai
Except for tungsten carbide drawing die, we are supplying following other items:
Tungsten Carbide Plates
Tungsten Carbide Strips
Tungsten Carbide Disc Cutter
Tungsten Carbide Balls
Tungsten Carbide Inserts
Tungsten Carbide Tips
Tungsten Carbide Rods
Tungsten Carbide Cutter Blades
Tungsten Carbide Coal Drilling Blades
Tungsten Carbide Teeth Balls
Tungsten Carbide Road-digging Teeth
Tungsten Carbide Drawing Dies
Tungsten Carbide Rollers
Tungsten Carbide Tungsten Carbide Buttons
Tungsten Carbide Tire Studs
Tungsten Carbide Non-standard Special-shaped Moulds
