Hot Sale Precision Tungsten Carbide Extrusion Dies

Name: Hot Sale Precision Tungsten Carbide Extrusion Dies
Brand: Jin Tai Pai
SKU: 100505299
Availability: InStock

US$ 60 - 109 MOQ: 1 Kilogram

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

Jin Tai Pai

Model Number:

OD26*ID11*7mm

Zhuzhou Jintai Cemented Carbide Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name Jin Tai Pai

Model Number OD26*ID11*7mm

Specification:

1. 100% raw material

2. 14 years experience

3. ISO 9001

4. OEM & ODM

5. Customized products are acceptable

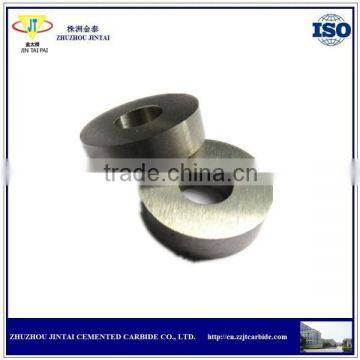

Display of Tungsten Carbide Extrusion Dies

Non-standard Extrusion Dies are customized as your requirements!

The cost of new mold needs to be paid unless the order quantity is over 50kg.

Cemented Carbide Extrusion Dies with Common Grades

Grade	Physical and Mechanical Properties			Recommended Applications
Grade	Density g/cm³	Hardness no less than HRA(HV)	TRS Mpa	Recommended Applications
YG6X	14.8-15.1	91	1420	For drawing steel and nonferrous wires or bars of less than Dia.6.00mm under not so much stress.
YG6	14.7-15.1	89.5	1520	For drawing steel , nonferrous alloy bars of less than Dia.20.00mm under more stuess and also for drawing tubes of less than Dia.10.00mm.
YG8	14.6-14.9	89	1470	For drawing steel and nonferrous bars and tubes, Also for manufacturing mechanical parts, tools and wear parts.
YG8C	14.5-14.9	88	1710	Suitable set of percussive and rotating drilling and rotary impact masonry drill bit.
YG11C	14-14.4	86.5	2060	Suitable for large drill chisel Insert button bits of hard rock flake or column.
YG15	13.9-14.2	86.5	2060	For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drinning and punching and impacting dies.
YG20	13.4-13.8	83.5	2480	For making punching and impacting dies for watch parts and musical instrunments springs, batterles shells and tooth pastes shells, etc., Also for making punching and impacting dies for steel balls of small diameters, screws and nuts, etc.
YG20C	13.4-13.8	82	2480	For making cold heading and cold punching and impacting dies for standardized parts, bearings, bullets head and shell, etc.
YK20	14.3-14.6	86	2250	For wrapped percussive-Rotary drilling bits, drill hard rock better than hard rock.
