Home > Products > Other Items > Air Release Valve Air Vent
Air Release Valve Air Vent
- 3200000 Piece / Pieces per Month
- Qingdao/Tianjin/qingdao/shanghai/guangzhou for air valve
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Standard or Nonstandard: | Standard | Structure: | Other, air valve | Pressure: | Medium Pressure |
Power: | Hydraulic | Material: | Casting | Temperature of Media: | Medium Temperature |
Media: | Gas | Port Size: | DN15-DN80 | Place of Origin: | Tianjin, China |
Model Number: | Air Release Valve Air Vent | Brand Name: | Jinerjian |
Product Description

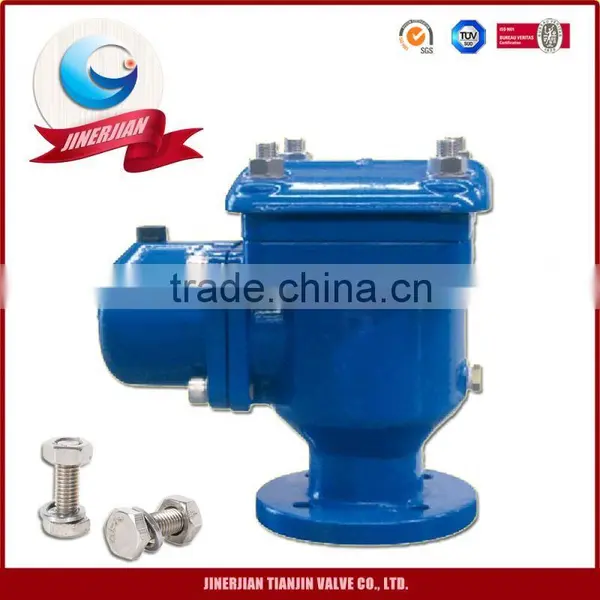

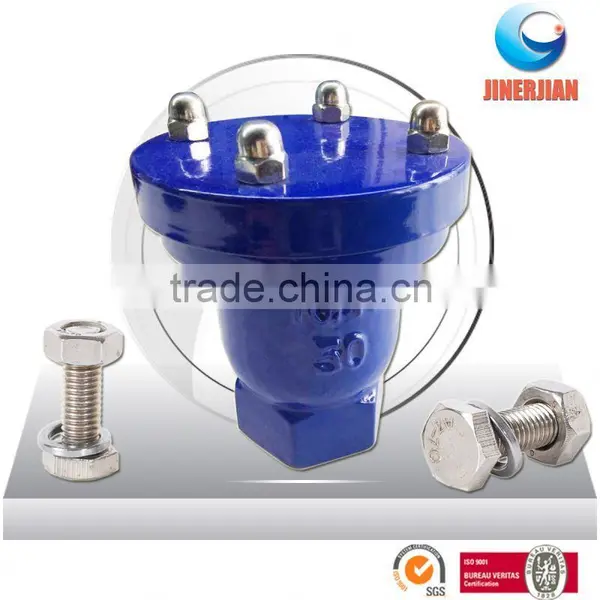

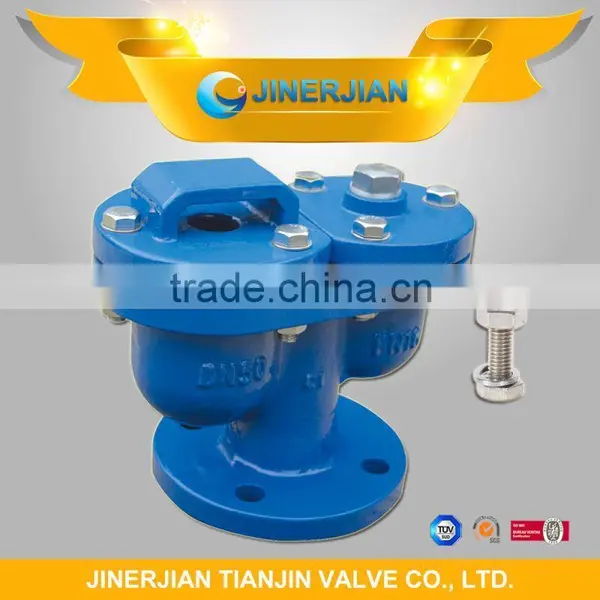

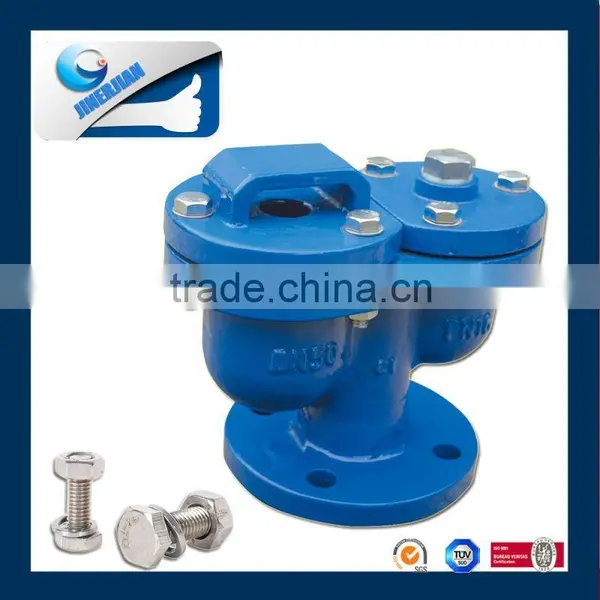

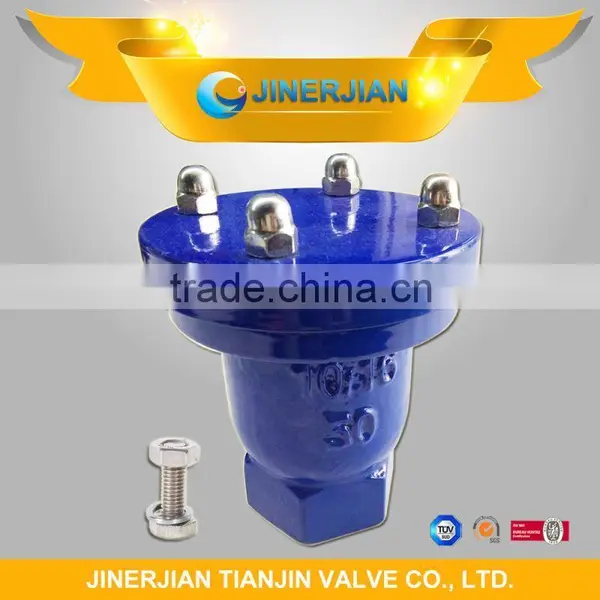

Air Release Valve Air Vent
Air Release Valve Air Vent
Size: 15-25mm
Valve seat:Gray iron
Piston:Ding clear rubber
Release lever:Stainless steel
Rod holder:Stainless steel
Suitable temperature:
70-95C
Working pressure:1.6MPa
Certificate:API, CE, TS, ISO, AZ
Air Release Valve Air Vent's Main Parts Of Materials
No. | Name | Material |
1 | Cap | Gray iron |
2 | Valve seat | Gray iron |
3 | Rod holder | Stainless steel |
4 | Piston | Ding clear rubber |
5 | Release lever | Stainless steel |
6 | Float ball | Stainless steel |
7 | Body | Stainless steel |
8 | Bolt | Stainless steel |
Air Release Valve Air Vent's Main Dimensions
Size (mm) | G | Outlet size | Exhaust outlet size(mm) | H |
DN15 | 1/2 | 1/4 | 1.6 | 127 |
DN20 | 3/4 | 1/4 | 1.6 | 127 |
DN25 | 1’’ | 1/4 | 1.6 | 127 |
Air Release Valve Air Ventused in the highest point of pipeline or where is air closed for central air-condition (make cold and heat), to exclude sewage pipe gas to clear the pipeline, but when pipeline in normal operation, internal of pipeline the medium of water containing 2 VOL of the chemical composition of natural gas will be produced. This gas will be enlarge slowly, that’s big effect for pipeline, it will happen air-close or turnoff, now the exhaust valve will exclude air on time, to enhance efficiency of pipeline cold and heat supply, can save energy, it’s the necessary products for central air-condition. Product using lift more than 5 years. Guarantee term of usage is 12 months.
About Jinerjian
Jinerjan (Tianjin) Valve Co., Ltd. is a manufacturer which is specialized in researching, producing and exporting wafer butterfly valves, flange butterfly valves, electric butterfly valves, pneumatic butterfly valves and dual plate check valves. Our business has expanded rapidly in the past 20 years.
Contact Us
- Henan Bundor Flow Control Co., Ltd.
- Contact nameMerlin Wu
- Phone0086-379-63150781
- Address2205R TRIUMPH BUSINESS CENTER OF JIANYE,ZHONGZHOU ROAD,XIGONG DISTRICT Luoyang,Henan
