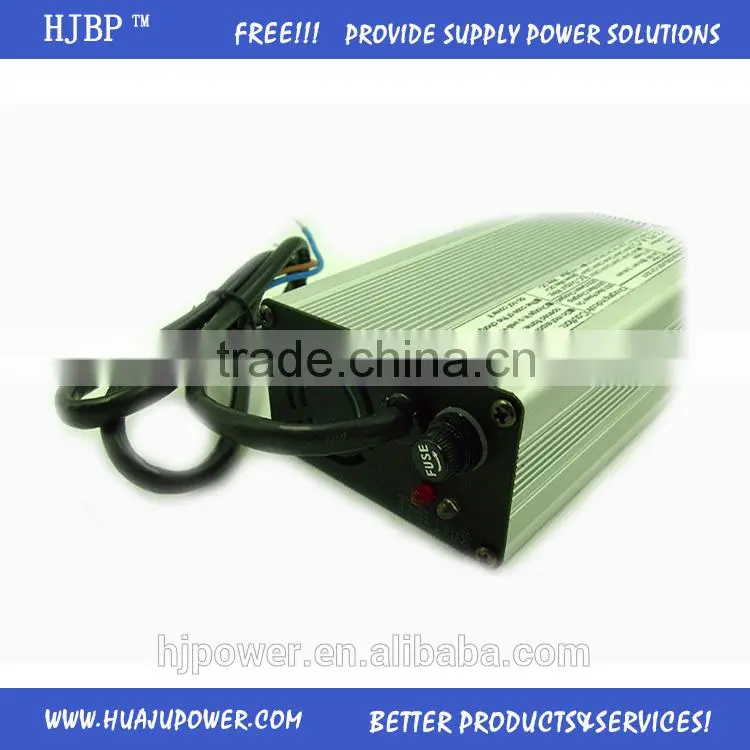

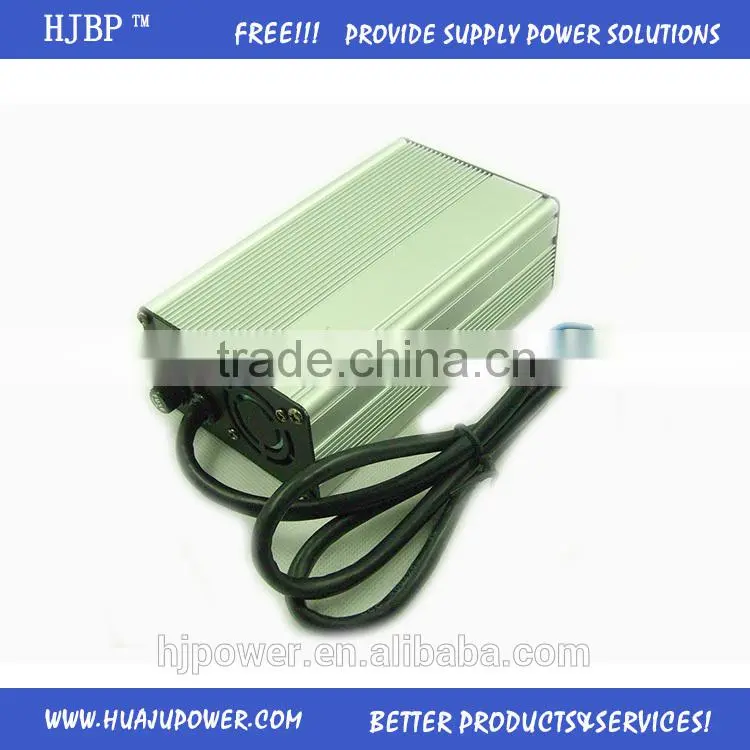

HJBP S Series 180W 24V6A (LiNiCoMn)O2 Nickel Cobalt Manganese Lithium Battery Charger for E-Bike 24V 20AH

HJBP S Series 180W 24V6A (LiNiCoMn)O2 Nickel Cobalt Manganese Lithium Battery Charger for E-Bike 24V 20AH thumbnail-1
HJBP S Series 180W 24V6A (LiNiCoMn)O2 Nickel Cobalt Manganese Lithium Battery Charger for E-Bike 24V 20AH thumbnail-2
HJBP S Series 180W 24V6A (LiNiCoMn)O2 Nickel Cobalt Manganese Lithium Battery Charger for E-Bike 24V 20AH thumbnail-3
HJBP S Series 180W 24V6A (LiNiCoMn)O2 Nickel Cobalt Manganese Lithium Battery Charger for E-Bike 24V 20AH photo-1
HJBP S Series 180W 24V6A (LiNiCoMn)O2 Nickel Cobalt Manganese Lithium Battery Charger for E-Bike 24V 20AH photo-2
HJBP S Series 180W 24V6A (LiNiCoMn)O2 Nickel Cobalt Manganese Lithium Battery Charger for E-Bike 24V 20AH photo-3
US$ 30 - 50 MOQ: 10 Units
Key Specifications
Get Latest Price
Brand Name:
HJBP
Model Number:
HJBP LC-S-24060
Use:
Standard Battery
Contact Supplier Request Quote Chat Now
Beijing Huaju New Power Technology & Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN QINGDAO HONGKONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HJBP
Model Number HJBP LC-S-24060
Use Standard Battery
Type Electric
Place of Origin Beijing, China

HJBP S series 180W 24V6A (LiNiCoMn)O2  Nickel cobalt manganese lithium battery charger for E-Bike 24V 20AH

Product Description

 1) MODEL: HJBP LC-S-24060

 2)Certificate: CEFCCROHSSB

 3)Warranty:2years

1. Charger specifications:



Nickel cobalt manganese lithium

battery  Li(NiCoMn)O2

Series connection

for quantity(S)

3S/4S

7S

10S

13S/14S

15S/18S

Voltage(V)

12.6/16.8

29.4

42

54.6/58.8

63/75.6

Phosphoric acid iron battery

LiFePO4

Series connection

 for quantity(S)

4S

8S

12S

16S

20S

Voltage(V)

12(14.6)

24(29.2)

36(43.8)

48(58.4)

60(73)

Series

Power(Max W)

Size(mm)

Weight
(kg)

<15V

<30V

<45V

<60V

<75V

A

A

A

A

A

W

120w

135×90×50

0.8

9A/7A/8A

    4A

2.5A

2A



S

180w

150×90×50

0.9

14A/10A/12A

6A

4A

3A



J

240w

170×90×50

1.0

18A/14A/16A

8A

5A

4A

3A

A

360w

180×90×63

1.2

28A/21A/24A

12A

8A

6A

5A

E

600w

220×120×70

2.5

46A/35A/40A

18A

12A

10A

8A

F

900w

230×135×70

3.0

35A

25A

18A

15A

12A

B

900w

260×150×88

3.5

40A

25A

18A

15A

12A

C

1200w

260×175×90

4.5

50A

30A

20A

18A

15A

D

1500w

300×175×90

5.5

80A

45A

30A

25A

20A

K

3000w

330×175×115

6.5

100A

60A

40A

30A

25A

G

4000w

380×240×150

10

150A

130A

80A

60A

50A

Q

5000w

420×280×180

12

-

-

110A

75A

60A

H

8000w

420×450×180

22

-

-

-

100A

90A

K

12000w

445×482×190

30

-

-

-

180A

150A

   2. Features:

     1.short-circuit protection,charger o/p current automatically when short-circuit.

     2.overload protection:charger o/p current limited automatically when overload.

     3.reverse polarity protection:it will shut down when the wire is connected,charge DC fuse or remove the fault.

     4.3-stage charging mode: CC(constant current), CV(constant voltage) and float stage.

     5. Reliable, elegant,Small size, light,

     6.charging state:two LED display.

     7.all kinds of production has passed the CE certification.

     8.Efficiency: ≥88 %( full capacity)

 3. Operate Condition:

     1.Temperature: -10~45 Degree

     2.Hi-pot: ≥AC1500 (P to S),≥AC1500 (P to FG)

     3.Life Expectancy: 50,000H at 25 Degree

 4. Application:

    1. Electrical forklift

   2. Electrical motorcycle

   3. Electrical tourist-car

HJBP S series 180W 24V6A (LiNiCoMn)O2 Nickel cobalt manganese lithium battery charger for E-Bike 24V 20AHHJBP S series 180W 24V6A (LiNiCoMn)O2 Nickel cobalt manganese lithium battery charger for E-Bike 24V 20AHHJBP S series 180W 24V6A (LiNiCoMn)O2 Nickel cobalt manganese lithium battery charger for E-Bike 24V 20AHHJBP S series 180W 24V6A (LiNiCoMn)O2 Nickel cobalt manganese lithium battery charger for E-Bike 24V 20AH



Packaging & Shipping

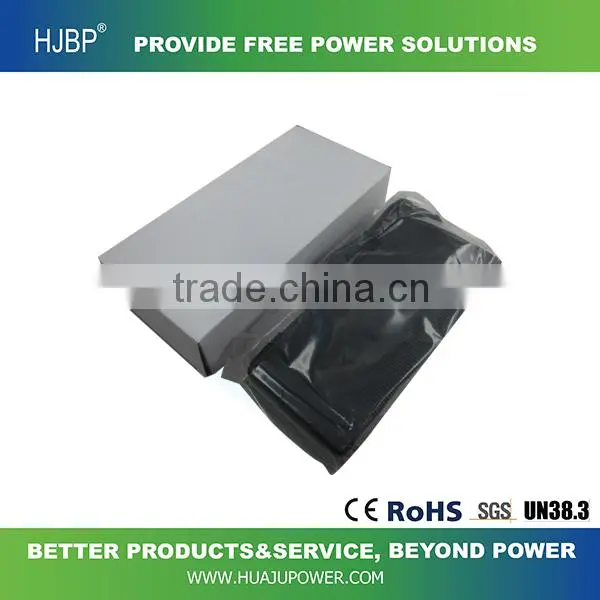

Packaging: inneral box,outside carton
