Best Price/Razor Wire

Specifications

Best Price Razor Wire
1.High quality low factory price
3.Own personal factory
4.Short delivery time
5.Long service life

Best Price/Razor Wire



Product Specialfication



BTO-10,12,18,22,30 CBT-60 CBT65

Hot dipped galvanized,Stainless Steel(430;304,316,316L)

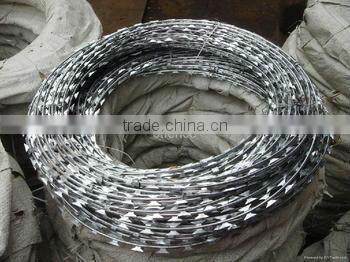

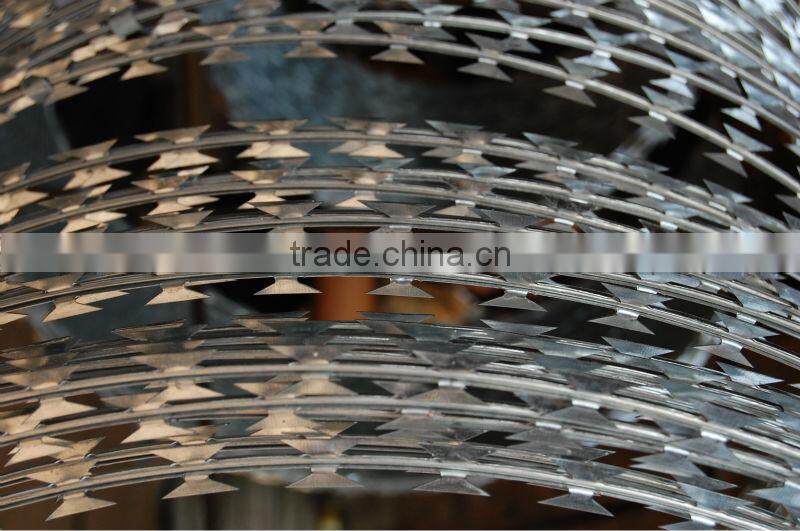

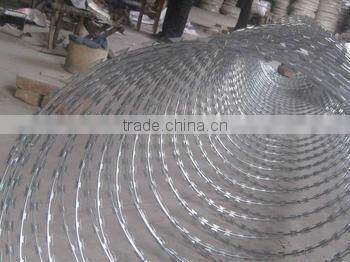

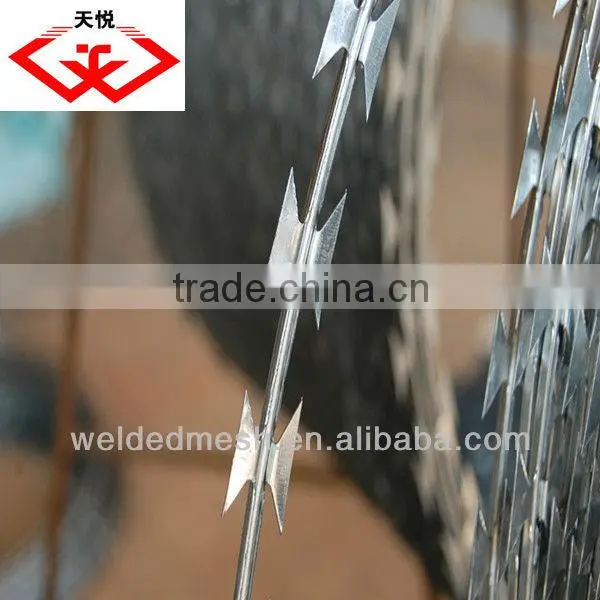

razor type barbed wire is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.





specification	thickness(mm)	wire dia. (mm)	barb length (mm)	barb width (mm)	barb spacing (mm)
BTO-10	0.4+/-0.05	2.5+/-0.1	10+/-1	13+/-1	26+/-1
BTO-12	0.5+/-0.05	2.5+/0.1	12+/-1	15+-1	26+/-1
BTO-18	0.5+/-0.05	2.5+/0.1	18+/-1	15+/-1	33+/-1
BTO-22	0.5+/-0.05	2.5+/0.1	22+/-1	15+/-1	34+/-1
BTO-28	0.5+/-0.05	2.5+/0.1	28	15	45+/-1
BTO-30	0.5+/-0.05	2.5+/0.1	30	18	45+/-1
BTO-60		2.5+/0.1	60+/-2	32+/-1	100+/-2
BTO-65		2.5+/0.1	65+/-2	21+/-1	100+/-2



outside diameter (mm)	No.of loops	standard length per  coil (mm)	TYPE	notes
400	33	7-8	CBT-60.65	SINGLE COIL
500	56	12-13	CBT-60.65	SINGLE COIL
700	56	13-14	CBT-60.65	SINGLE COIL
960	56	14-15	CBT-60.65	SINGLE COIL
450	56	8-9	BTO-12.22.25.30	CROSS TYPE
500	56	9-10	BTO-12.22.25.30	CROSS TYPE
600	56	10-11	BTO-12.22.25.30	CROSS TYPE
600	56	8-10	BTO-12.22.25.30	CROSS TYPE
700	56	10-12	BTO-12.22.25.30	CROSS TYPE
800	56	11-13	BTO-12.22.25.30	CROSS TYPE
900	56	12-14	BTO-12.22.25.30	CROSS TYPE
960	56	13-15	BTO-12.22.25.30	CROSS TYPE
980	56	14-16	BTO-12.22.25.30	CROSS TYPE

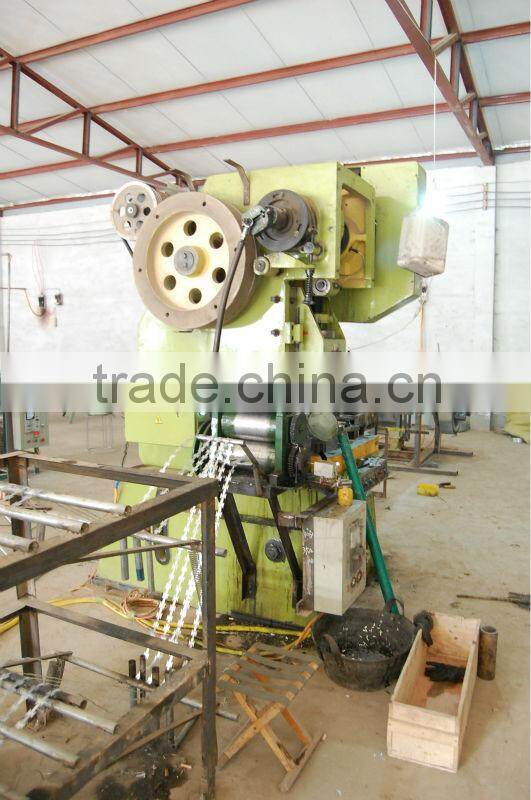

Factory & Certificates Show:
