CF8M Body/CS+STL Disc/stl Seat National Standard Globe Valve
- tianjin/shanghai/qingdao/ningbo
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
JINERJIAN Piston Forged Steel Globe Valve
-
JINERJIAN Socket Weld Globe Valve/3 Inch Globe Valve
-
JINERJIAN Ss316 Globe Valve/3 Inch Globe Valve
-
JINERJIAN Din Bellow Seal Oxygen Globe Valve
-
JINERJIAN Marine Cast Steel Astm A216 Wcb Cast Steel Globe Valve
-
JINERJIAN Flange Bellows Globe Valves of Throttle Globe Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Gate | |
| Pressure | Medium Pressure | Power | Manual | |
| Material | Casting | Temperature of Media | Medium Temperature | |
| Media | Water | Port Size | DN150 | |
| Place of Origin | Tianjin, China | Model Number | JEJ-03 | |
| Brand Name | JIENRJIAN |
Product Description
Description:
1.20 years experience.
2.Drawing is available.
3.Proffessional technicial specs.
4.API,CE certification.
5.GB,BS,API,ANSI,ASME,JIS,ISO,DIN standard.
Diagram:
| DESCRIPTION | DN | PN | QTY | BODY | Disc | Other | END | Face-to-face | Operation | Medium | Temperature | Testing |
| Globe Valve | 50 | 100 | 2 | LF2 | CS+STL | seat STL, stem F6 | flanges acc to EN 1092-1 | acc to EN 558-1 | manual | crude oil | from -29 to +50 deg C | DIN 3230T6 |
| Globe Valve | 50 | 100 | 2 | LF2 | CS+STL | seat STL, stem F6 | flanges acc to EN 1092-1 | acc to EN 558-1 | manual | crude oil | from -29 to +50 deg C | DIN 3230T6 |
| Globe Valve | 50 | 100 | 2 | CF8M | CF8M+STL | seat STL, stem F316 | flanges acc to EN 1092-1 | acc to EN 558-1 | manual | brine | from -29 to +50 deg C | DIN 3230T3 |
| Globe Valve | 50 | 100 | 2 | CF8M | CF8M+STL | seat STL, stem F316 | flanges acc to EN 1092-1 | acc to EN 558-1 | manual | brine | from -29 to +50 deg C | DIN 3230T3 |
| Globe Valve | 80 | 100 | 2 | LCB | CS+STL | seat STL, stem F6 | flanges acc to EN 1092-1 | acc to EN 558-1 | manual | hydrocarbons | from -29 to +50 deg C | DIN 3230T6 |
| Globe Valve | 50 | 100 | 2 | LF2 | CS+STL | seat STL, stem F6 | flanges acc to EN 1092-1 | acc to EN 558-1 | manual | hydrocarbons | from -29 to +50 deg C | DIN 3230T6 |
Function:
Flanged stop valve is used in petroleum, chemical, pharmaceutical, fertilizer, power industry and other working conditions of the pipe which nominal pressure is between 1.6 ~ 16MPa, working temperature is between-29 ~ 550 °C to cut off or connected to pipeline medium. Driven method is manual, gear transmission, electrical, pneumatic and so on.
Pictures:

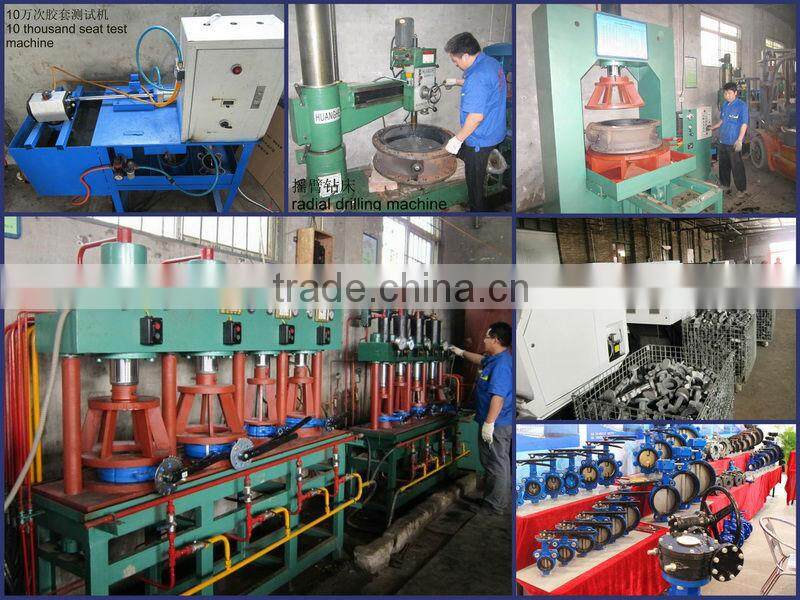

Assemble Proces:
....
