hot sale tungsten carbide inserts for cnc machine
- 50 Ton / Tons per Month
- Shanghai Guangzhou Beijing
- T/T L/C D/P D/A Credit Card PayPal
- Perkins T433072 - PISTON ASSEMBLY Genuine Engine Spare parts
- PERKINS Genuine part T409186 THRUST WASHER KIT suitable for PERKINS 1106A-70T(PP)
- Perkins Part Number: T422325 CRANKSHAFT Genuine C4.4 for industrial Engine
- T427328 Kit, Bearing Genuine Perkins Main Bearing Kit for Perkins 1200 Series 1204
- Caterpillar 1538455 153-8455 CAT Gasket-Manifold for Engine 3512B, 3516B, 793D, G3508,
- Caterpillar 2120136 212-0136 CAT FILTER, ELEMENT for Engine Articulated Truck 740C
Product Details
Place of Origin: | Hunan, China | Brand Name: | JINTAI PAI | Model Number: | Various |
Product Description
Specifications
1, 100% raw material2, 13 years of experience
3, ISO 9001
4, OEM & ODM
5, Customized products are acceptable

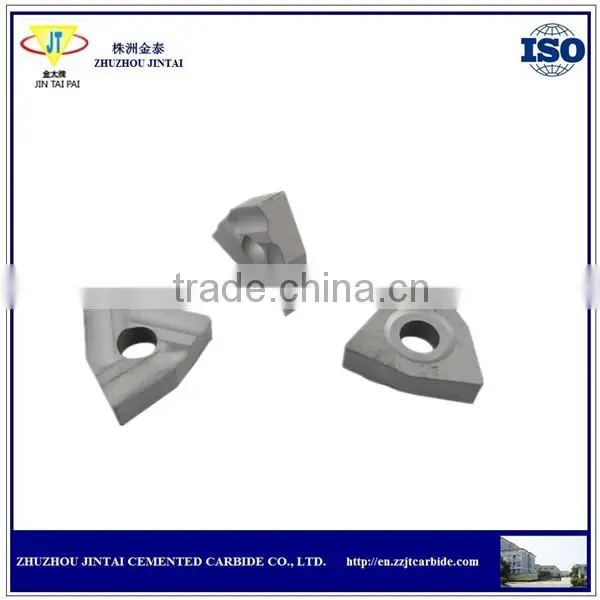

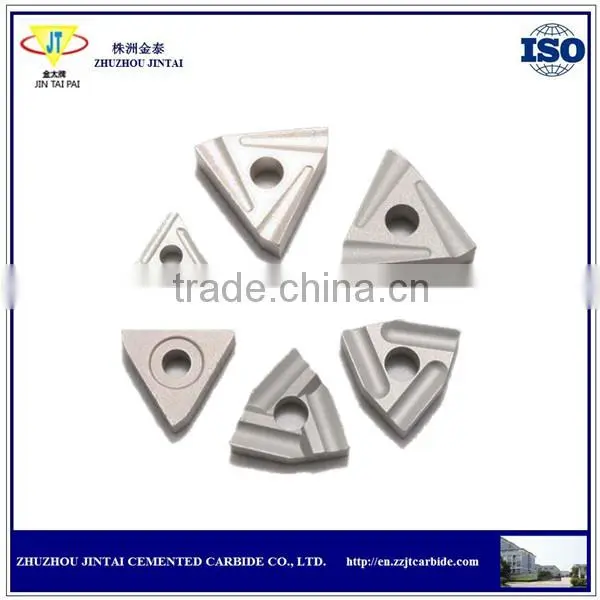

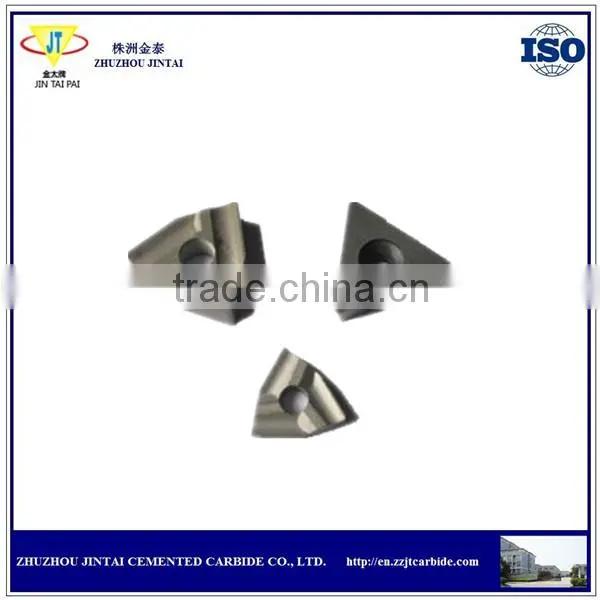

More photos of carbide CNC CNMG series inserts
Size of carbide CNC CNMG series inserts, and Customization is available.
Grade & Application of carbide CNC CNMG series inserts
ISO Code | Grand | Physical and mechanical properties | Applications recommended | ||
Density g/cm3 | Hardness No Less Than HRA(HV) | TRS No Less Than (Mpa) | |||
K05 | YG3 | 15 | 90.5 | 1300 | Suitable for finishing of cast iron and nonferrous metal. |
K10 | YG6X | 14.8 | 91 | 1560 | The finishing& semi-finishing of cast iron and nonferrous metals and also for the machining of manganese stell and hardening steel. |
YG6A | 14.7 | 91.5 | 1510 | ||
K15 | YG6 | 14.9 | 89.5 | 1670 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
K20 | YG8 | 14.6 | 89 | 1840 | Suitable for the roughing of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
M10 | YW1 | 13 | 91 | 1290 | Suitable for finishing and semi-finishing of stainless steel and conventional alloy steel |
YW3 | 12.9 | 92 | 1390 | ||
YW4 | 12.3 | 92 | 1390 | ||
M20 | YW2 | 12.9 | 90.5 | 1460 | The grade can be used for the semi-finishing of stainless steel and low-alloy steel and it is mainly used for the maching of railway wheel hubs. |
P10 | YT05 | 12.6 | 92.5 | 1260 | Suitable for the finihing and semi-finishing if steel and cast steel with a moderate feed rate and a rather high cutting speed. |
YT15 | 11.3 | 91 | 1300 | ||
P20 | YS14 | 11.4 | 91.5 | 1550 | Suitable for the finishing and semi-finishing of steel and cast steel. YS25 is specially used for the milling of steel and cast steel. |
YT14 | 11.4 | 90.5 | 1400 | ||
YS25 | 13 | 90.5 | 1780 | ||
P30 | YT5 | 12.8 | 89.5 | 1560 | Suitable for the heavy duty rough tuming of steel and cast steel with a big feed rate at a medium and low speed under unfavorable working conditions. |
K05-K10/M20 | YT26 | 14 | 92.5 | 1600 | Suitable for fine and semi-finishing machining of chilled cast iron and non ferrous metals with good performances of the mosetting and wear resistance, also suitable for turning and milling of manganese steel and hardened steel. |
K20 | YD201 | 14.9 | 91 | 1800 | Suitable for semi-finishing and the rouhhing of cast iron and light alloys ans also for the milling of cast iron ans low alloy steel. |
M05-M10 | YS8 | 13.9 | 92.5 | 1720 | It can be used for the finishing of iron based ans nickel based high -temperature alloys and high -strength steel and it can also be used for the finishing if chilledcast iron, heat resistant stainless steel, high manganese steel resistant stainless steel, high manganese steel and hardened steel. |
M10 | 60 | 12.8 | 92.5 | 1500 | Mainly used for threading of petroleum pipe, also used for fine machining of hardened steel. |
M20 | YM20 | 13 | 91 | 1750 | |
P30 | YC30S | 12.9 | 90 | 1600 | Used for the milling of steel, cast steel ans alloy steel. |
P35-P40 | YC40 | 12.9 | 91 | 2200 | Suitable for the heavy duty turning of steel and cast steel with a big steel rate under unfavorable working condifion. |
P40 | YM40 | 12.75 | 90 | 2100 | Suitable for the heavy duty turning of steel and cast steel with a big steel with a big steel rate and also for face milling. |
YC45 | 12.75 | 90 | 2300 |
Customer NOTICE:
To save your value time, please inform us of the following information:
1, Grade
2, Type
3, Dimension for each type
4, Blanks or finished products
5, If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
About Zhuzhou Jintai
Except for carbide CNC CNMG series inserts, We are spplying following other items
Tungsten Carbide Plates
Tungsten Carbide Strips
Tungsten Carbide Disc Cutter
Tungsten Carbide Balls
Tungsten Carbide Inserts
Tungsten Carbide Tips
Tungsten Carbide Rods
Tungsten Carbide Cutter Blades
Tungsten Carbide Coal Drilling Blades
Tungsten Carbide Teeth Balls
Tungsten Carbide Road-digging Teeth
Tungsten Carbide Drawing Dies
Tungsten Carbide Rollers
Tungsten Carbide Tungsten Carbide Buttons
Tungsten Carbide Tire Studs
Tungsten Carbide Non-standard Special-shaped Moulds
