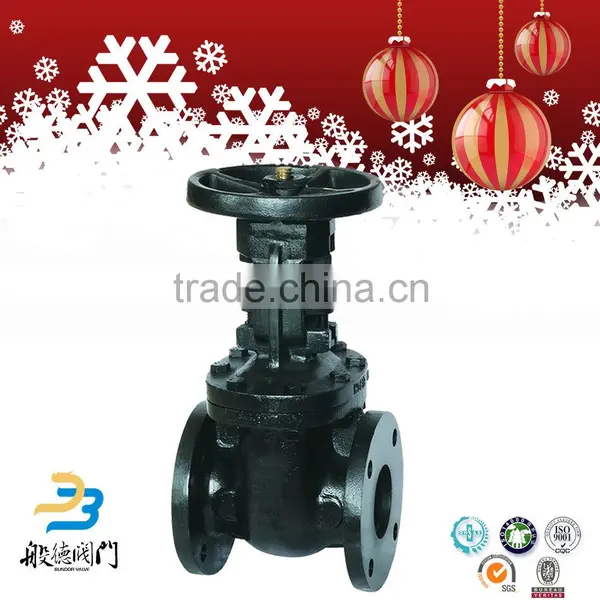

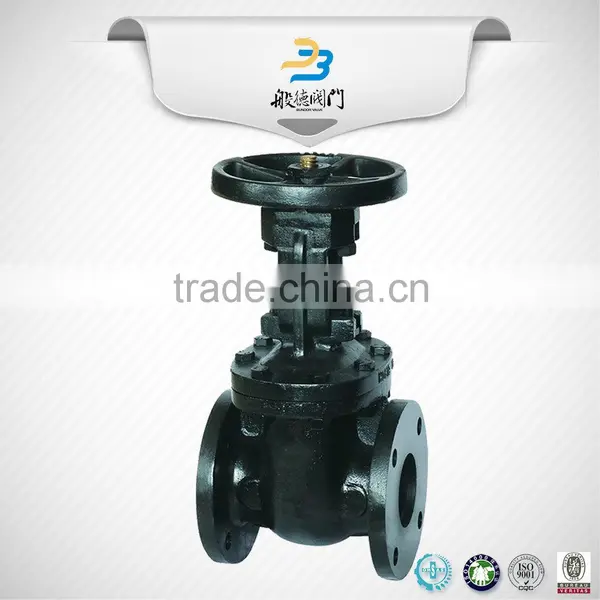

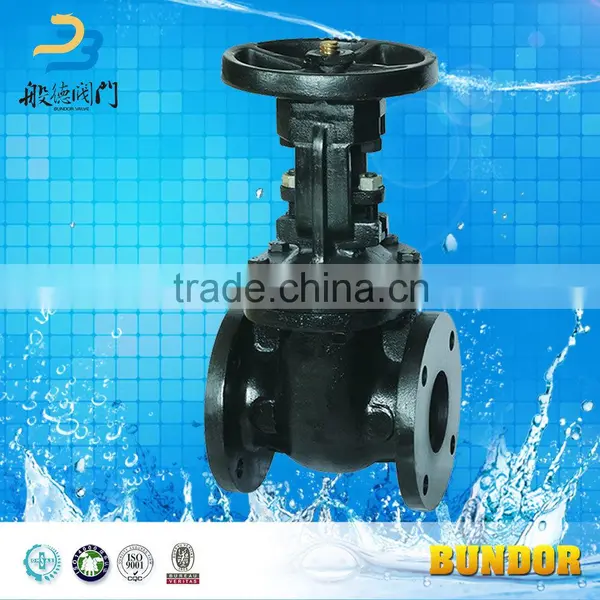

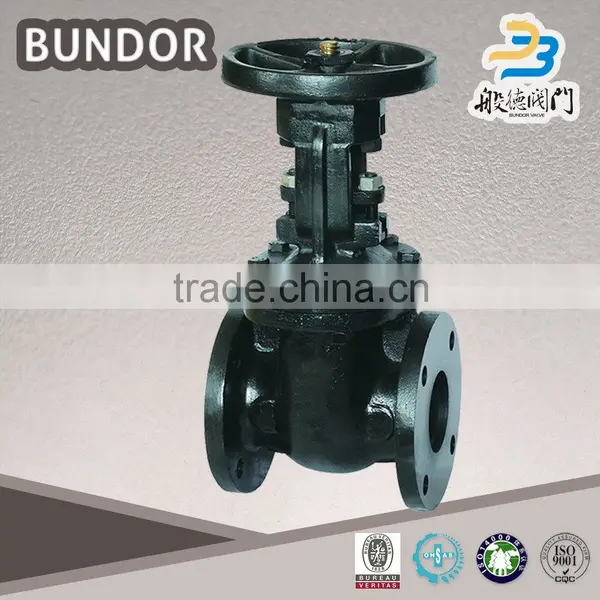

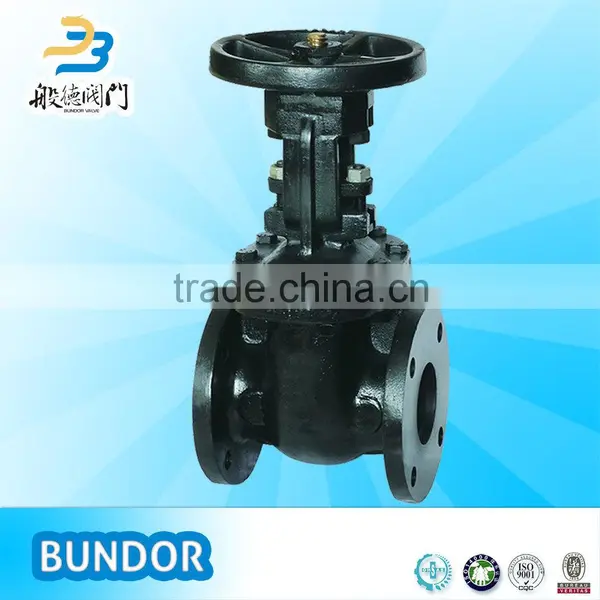

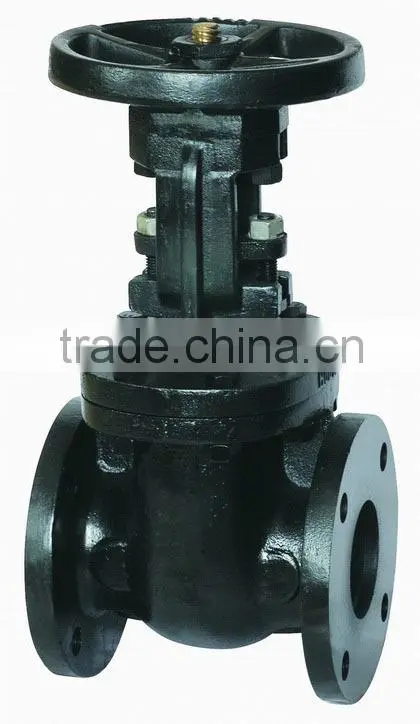

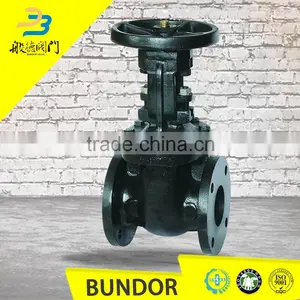

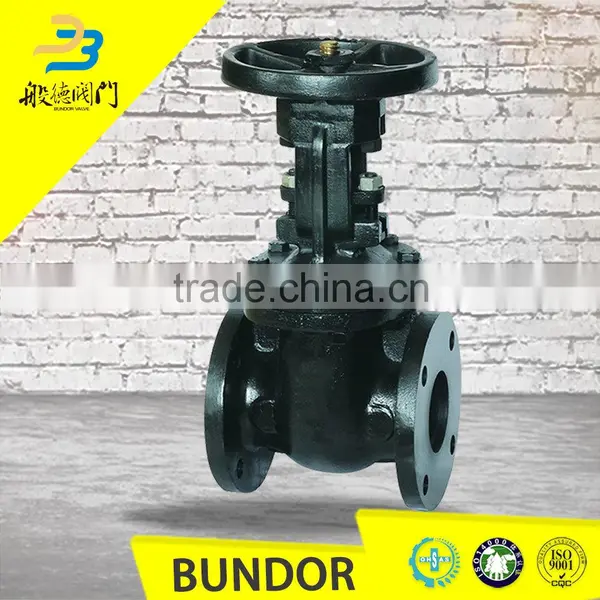

5 Inch Cast Iron Gate Valves For Hdpe Pipe
US$ 3.68 - 50
MOQ: 50 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Other, Standard or custom made
Structure:
Other, Gate for 5 inch gate valve
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao/Ningbo/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Other, Standard or custom made
Structure
Other, Gate for 5 inch gate valve
Pressure
Medium Pressure
Power
Manual
Material
Other, Casting for 5 inch gate valve, CI/DI/SS/WCB/Brass/Aluminium
Temperature of Media
Normal Temperature
Media
Other, Water,oil,steam,weak acid
Port Size
DN15-100mm for flat gate valve
Place of Origin
Tianjin, China
Model Number
Gate Valve
Brand Name
BUNDOR
Application
Other, General, Water,oil,steam,weak acid
5 Inch Cast Iron Gate Valves For Hdpe Pipe
 |
name | 5 Inch Cast Iron Gate Valves For Hdpe Pipe |
| Size Range: | DN50-300 | |
| Temperature | ≤150 ℃ | |
| Hand wheel | Ductile iron | |
| Disc | Copper, Grey iron | |
| Stem | Stainless steel, Copper | |
| Body,Bonnet | Grey iron |
Product Description
| Design Standard | |
| Face to face | MSS-SP-71 |
| Flange | ANSI B16.10 |
| Test | |
| Nominal pressure(PSI) | 125 |
| Shell test(PSI) | 350 |
| Seal test(PSI) | 200 |
| Dimension | |||||||||
| NPS | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 300 |
| L | 177.8 | 190.5 | 203.2 | 228.6 | 254 | 266.7 | 292.1 | 330.2 | 355.6 |
| H | 287.27 | 304.8 | 336.55 | 414.27 | 457.2 | 525.53 | 612.65 | ||
| D | 152 | 178 | 190 | 229 | 254 | 279 | 343 | 406 | 483 |
| D1 | 120.65 | 139.7 | 152.5 | 190.5 | 215.9 | 241.3 | 298.45 | 361.95 | 431.8 |
Product Process
Packaging & Shipping
Packaging and transportation
Company Information
Our history
Certifications
Product Certification
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 21 years, we have customers in many countries around the world.
