casting steel 2 inch gate valve ul fm gate valve
- 32000 Set / Sets per Month
- Tianjin/ Qingdao/ Shanghai/ Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Standard or Nonstandard: | Standard | Structure: | Gate | Pressure: | Other, Medium Pressure, PN1.0-1.6Mpa |
Power: | Manual | Material: | Casting | Temperature of Media: | Medium Temperature |
Media: | Other, Fresh water,sewage,sea water,weak acid,weak base etc | Port Size: | DN40-DN1200 | Place of Origin: | Tianjin, China |
Model Number: | Ul Fm Gate Valve | Brand Name: | Jinerjian |
Product Description

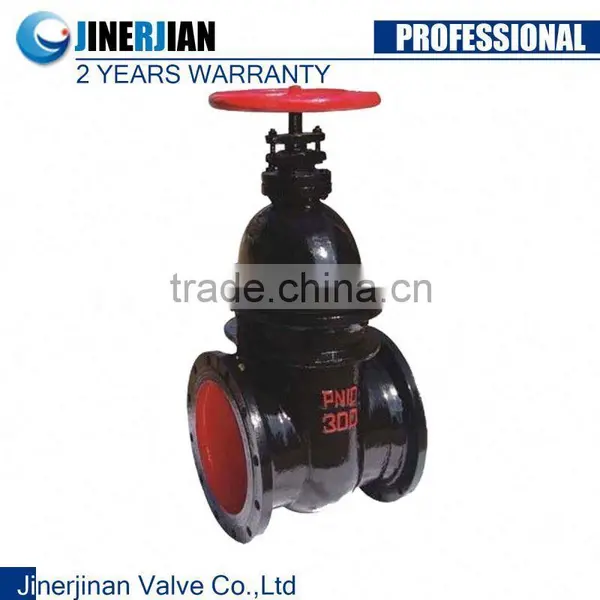

casting steel 2 inch gate valve ul fm gate valve
Name:casting steel 2 inch gate valve ul fm gate valve
Model: Z45T-10
Diameter:DN15-DN600
Medium:Fresh water,sewage,sea water,weak acid,weak base etc.
Temperature:-20-135 degree
Body material:Gray cast iron
Valve board:Gray cast iron+brass
Valve stem:Carbon steel
Hand Wheel:Gray cast iron
Stem nut:Bronze
Gasket:Asbestos plate
casting steel 2 inch gate valve ul fm gate valve Z45T-10 valve uses wedge-type elastic single gate structure, apply to the temperature less than or equal 135 degrees of water, steam, oil in pipeline and other media to open and close. Main features: body is made from precision casting, sleek style seat closed plate tightly ,reaching no leakage, no sediment, circulation, smooth, open and close flexibly.
Advantages of casting steel 2 inch gate valve ul fm gate valve:
1, Small fluid resistance >
2, A smaller external force required to open and close
3, Unrestricted flow of medium
4, The erosion of working medium in sealing surface is smaller than globe valve when open fully.
Specification:
Working medium: water, non-corrosive liquid, saturated vapor (≤ 0.6MPa)
Operating temperature: -20 °C ≤ t ≤ 135 °C
Stem: non-rising stem
Body material:Brass/Gray Cast Iron
Connection:flanged
Parts Name | Material Name | |
Z45T-10 | Z45W-10 | |
Body,Bonnet | Gray cast iron | Gray cast iron |
valve board | Gray cast iron+brass | Gray cast iron |
valve stem | carbon steel | carbon steel |
hand wheel | gray cast iron | gray cast iron |
stem nut | bronze | bronze |
gasket | asbestos plate | asbestos plate |
casting steel 2 inch gate valve ul fm gate valve Main features and usages:
1.Compact structure, reasonable design ,good rigidity , low flow resistance
2.Sealing surface is made of stainless and tungsten carbide, can serve a long life.
3.Use of flexible graphite packing ,sealing and reliable,easy operation
4.Drive mode support manual, electric, pneumatic, hydraulic, gear drive and so on.
5.Widely used in the petrochemical industry,power plants and other place which pipe media is oil,water,steam .Its function is connect or disconnect media.
In the 19 years, we have customers in many countries around the world.
...
