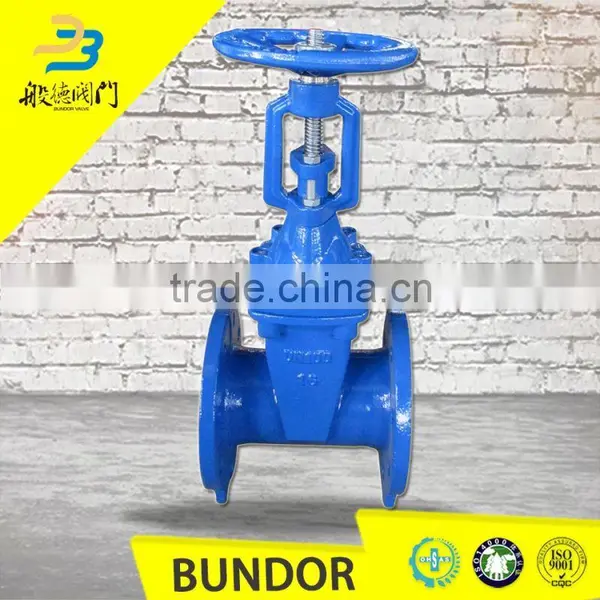

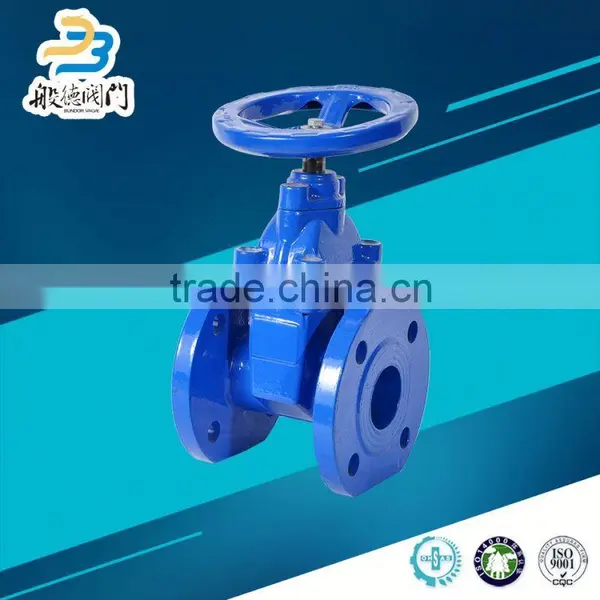

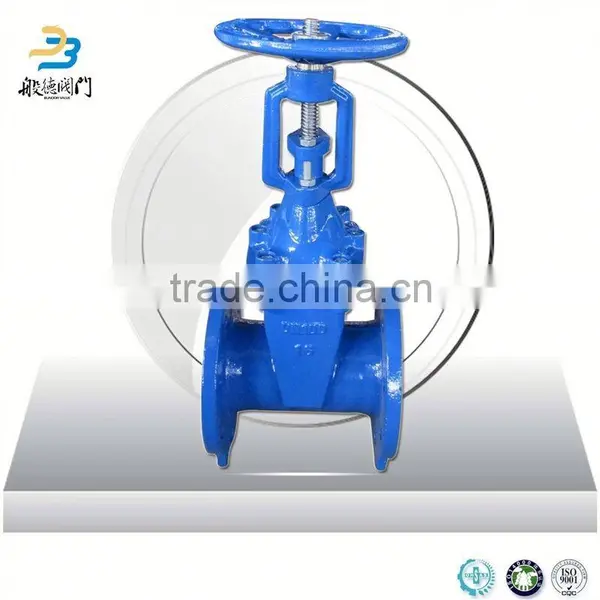

Di Resilient Seated Gate Valve 3 4
|
name | Di Resilient Seated Gate Valve 3 4 |
| Size Range | DN40-DN600 | |
| Pressure | PN1.0/1.6Mpa | |
| Application Temperature | 0-80 degree |
|
| Connection | Flange | |
| Disc | IGGG40 EPDM | |
| Body Material | GGG50/40 |
Product Description
Products Introduction
Di Resilient Seated Gate Valve 3 4 overcome the poor elasticity of the sealing and easy to rust defects etc. It will achieve a good seal by the compensate action,which caused by the elastic disc micro deformation.The valve has the advantages of light switch,reliable sealing and long service life etc.
| No. | Part Name | Material | No. | Part Name | Material |
| 1 | Body | EN-GJS-500-7 GGG50 | 11 | O-ring | EPDM/NBR |
| 2 | Disc | DI EPDM/NBR | 13 | Packing nut | Brass |
| 3 | Nut | Brass | 14 | packing gland | EN-GJS-500-7 |
| 4 | Shaft | ANSI420 | 22 | Position Indicator | Stainless steel |
Application
As a regulate and interception device on pipeline will be applicate to water,sewage,construction,food,electricity,medicine,metallurgy,textile,energy system etc.
Product Process
Packaging and transportation
Our history
Product Certification
1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 21 years, we have customers in many countries around the world.
