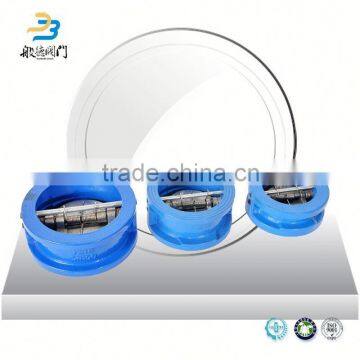

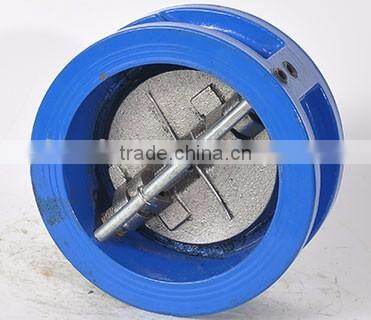

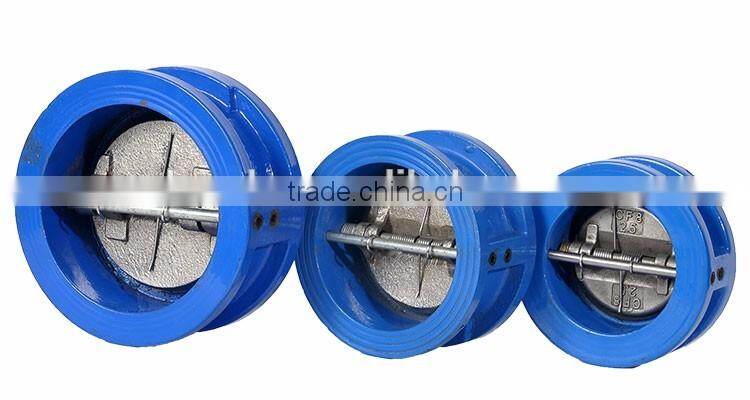

Cast Iron Butterfly Type Wafer Check Valve Dn100

Cast Iron Butterfly Type Wafer Check Valve Dn100 thumbnail-1
Cast Iron Butterfly Type Wafer Check Valve Dn100 thumbnail-2
Cast Iron Butterfly Type Wafer Check Valve Dn100 thumbnail-3
Cast Iron Butterfly Type Wafer Check Valve Dn100 thumbnail-4
Cast Iron Butterfly Type Wafer Check Valve Dn100 thumbnail-5
Cast Iron Butterfly Type Wafer Check Valve Dn100 thumbnail-6
Cast Iron Butterfly Type Wafer Check Valve Dn100 photo-1

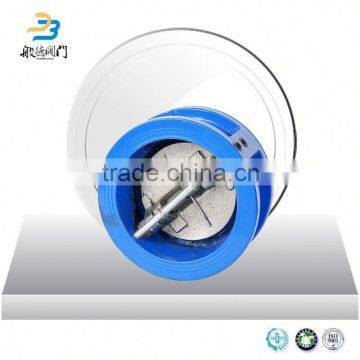

Cast Iron Butterfly Type Wafer Check Valve Dn100 photo-2

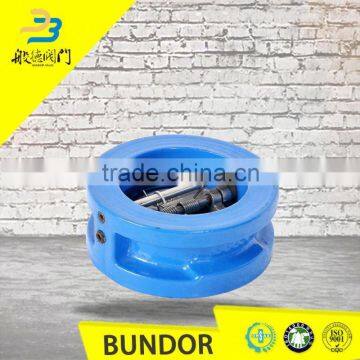

Cast Iron Butterfly Type Wafer Check Valve Dn100 photo-3
Cast Iron Butterfly Type Wafer Check Valve Dn100 photo-4

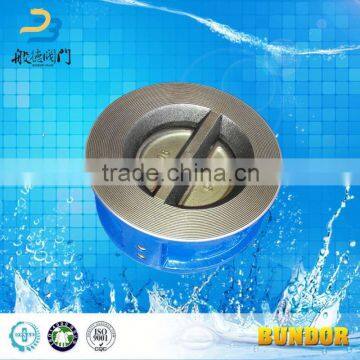

Cast Iron Butterfly Type Wafer Check Valve Dn100 photo-5

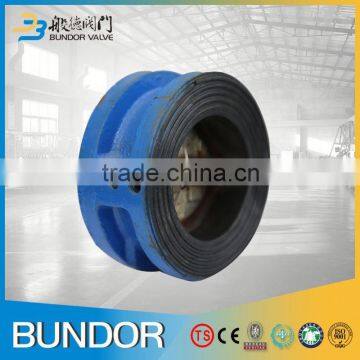

Cast Iron Butterfly Type Wafer Check Valve Dn100 photo-6
US$ 16 - 79 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Other, Low Pressure, PN10, PN16, Class125
Contact Supplier Request Quote Chat Now
Henan Bundor Flow Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Ningbo/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Check
Pressure Other, Low Pressure, PN10, PN16, Class125
Power Manual
Material Casting
Temperature of Media Normal Temperature
Media Water
Port Size DN50-DN600MM
Place of Origin Tianjin, China
Model Number Check Valve
Brand Name BUNDOR
Application General
Product Description

Standard Test:

Body Test: 1.5 times the working pressure with water. This test is performed after Cast Iron Butterfly Type Wafer Check Valve Dn100 assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.

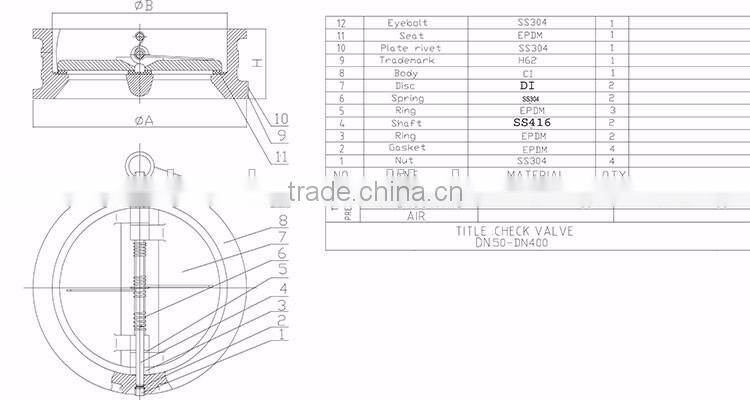

SPECIFICATIONS FOR Cast Iron Butterfly Type Wafer Check Valve Dn100
Size Range
2~24"(DN50~DN600)
Pressure
PN10, PN16, Class125
Body Materials
Cast Iron, Ductile Iron , WCB , Stainless Steel, Bronze
Seat Materials
NBR, EPDM
Disc Materials
Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
Stem Materials
SS416, SS304, SS316

Adoptive Standards:

Valve Design: API 609
Pressure Test: API 598
Flange end: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

Production Process

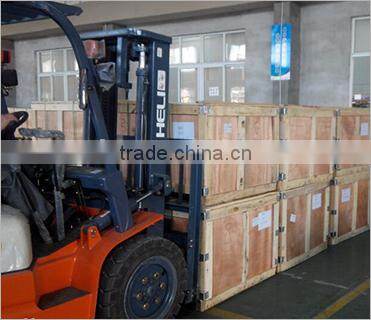

Packing & Delivery
Packaging
Size
110 (L) * 110 (W) * 78 (D)
Weight
800kg

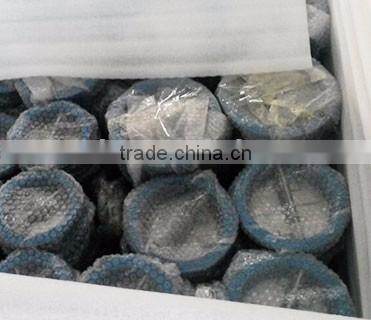

Packaging Details
Hard-to-hard-lay,Put sponge in each floor, 1.1*1.1*0.78m export plywood case;
Size
110 (L) * 110 (W) * 78 (D)
weight
About 800kg
Packaging Details
One 20' container can in bulk loaded on 24pcs plywood cases more or less.
We can pack according to specific customer requests.
Customers' logos are available on package
