US$ 4 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Other, PN10-PN16 for high demand products handle butterfly valve function
Contact Supplier Request Quote Chat Now
Henan Bundor Flow Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/shanghai/lianyugang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Butterfly
Pressure Other, PN10-PN16 for high demand products handle butterfly valve function
Power Manual
Material Casting
Temperature of Media Normal Temperature
Media Water
Port Size 40-600 of high demand products handle butterfly valve function
Place of Origin Tianjin, China
Model Number D41X
Brand Name BUNDOR
Application General
Product Description

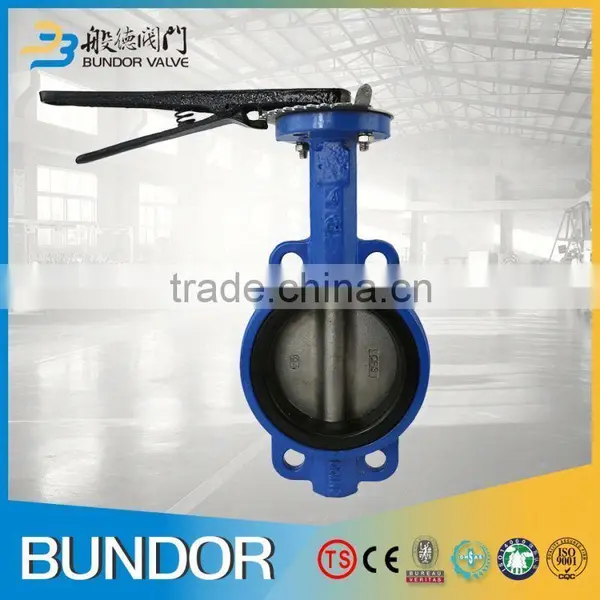

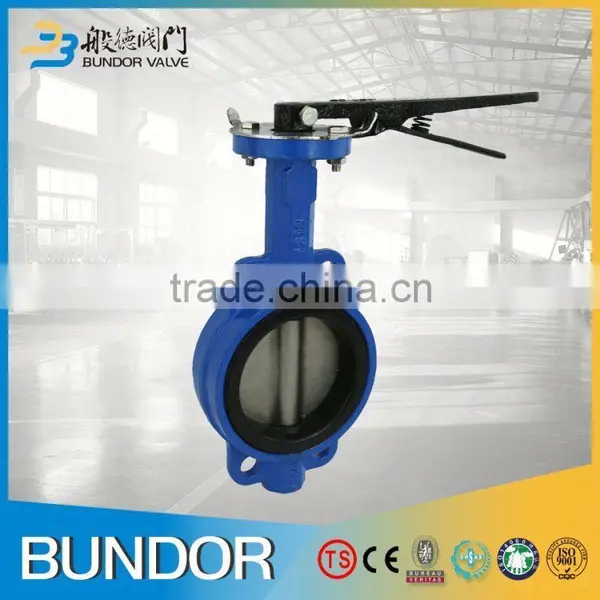

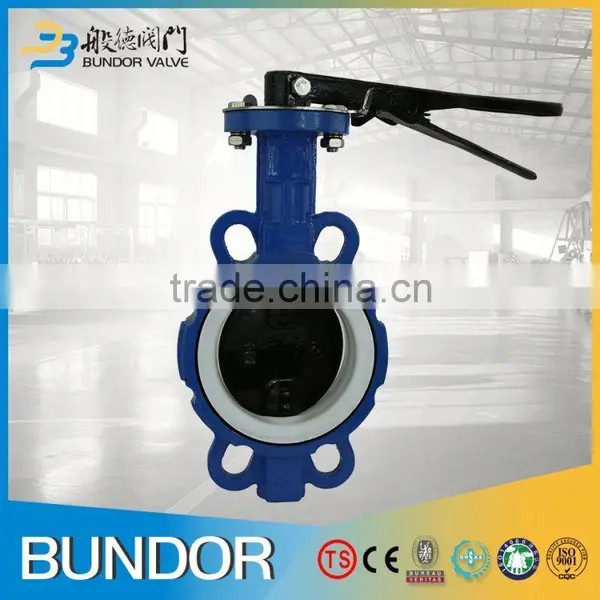

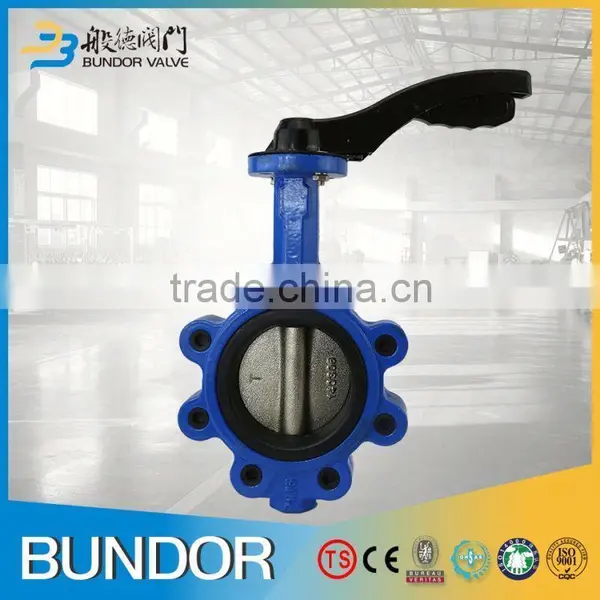

high demand products handle butterfly valve function

high demand products handle butterfly valve function name high demand products handle butterfly valve function
Body Cast Iron,Ductile Iron,Stainless Steel,Carbon Stee
Bushing Polymer water-proof materials ,Nylon, Bronze

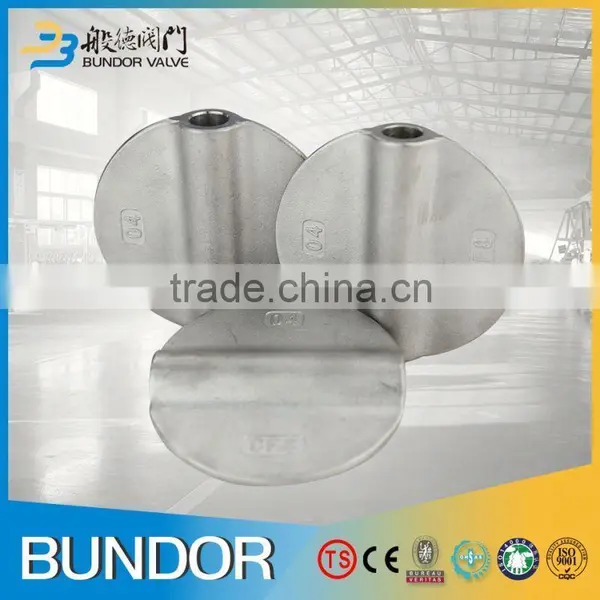

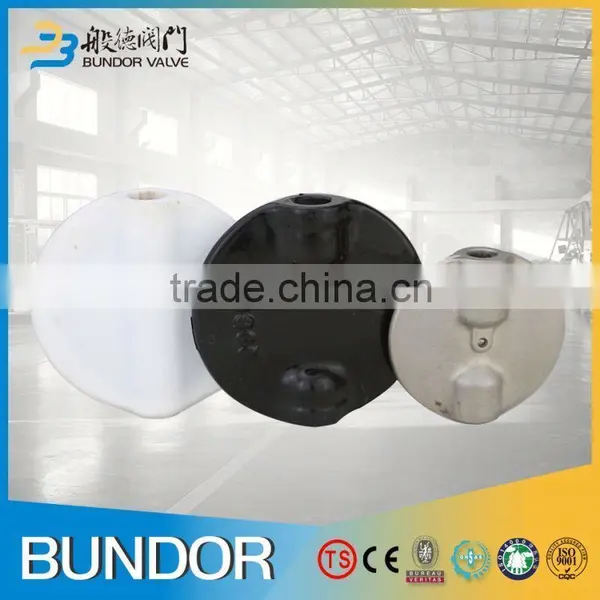

Disc

Ductile Cast Iron,Stainless Steel,CF8, CF8M, CF3, CF3M,AL-Bronze
Seat NBR, EPDM, Neoprene, PTFE, Viton
Stem SS416/SS304/SS316
Pin

SS316/SS416

Product Description

 high demand products handle butterfly valve functionhigh demand products handle butterfly valve function

 high demand products handle butterfly valve function

Size H1 H2 H3 L L1 φ1 φ2 N φ3
mm inch

ANSI

B16.1

DIN

PN10

DIN

PN16

 JIS5K

JIS

10K

 ANSI DIN JIS
40 1.5" 60 130 32 36 267 98.5 110 110 — — 82 4 17.46 18 —
50 2″ 76 162 32 45 267 120.65 125 125 105 120 88 4 17.46 18 15/19
65 21/2″ 89 175 32 48 267 139.7 145 145 130 140 108 4 17.46 18 15/19
80 3″ 95 181 32 49 267 152.4 160 160 145 150 118 4 17.46 18 19
100 4″ 114 200 32 55 267 190.5 180 180 165 175 156 4 17.46 18 19
125 5″ 127 213 32 58 267 215.9 210 210 200 210 181 4 20.64 18 19/23
150 6″ 140 225 32 59 267 241.3 240 240 230 240 210 4 20.64 22 19/23
200 8″ 177 260 45 64 356 298.45 295 295 280 290 260 4 20.64 22 23
250 10″ 203 292 45 70 356 361.95 350 355 345 355 321 4 23.81 22/26 23/25
300 12″ 242 337 45 80 356 431.8 400 410 390 400 384 4 23.81 22/26 23/25

Adoptive standard

1.Valve Design:MSS SP-67 for Casting steel,API609+ANSI B16.1 for DI/CI
2.Flange:ANSI B16.1 Class 125,DIN2501 PN10/16;BS4504 PN10/16
3.Face to face:BS EN 558-1;the length in BS EN558-1 is the same in DIN3202/API609/MSS SP-67:2002
4.Pressure test conform to API598

Product Process

Packaging and transportation

Our history

high demand products handle butterfly valve function

Product Certification

high demand products handle butterfly valve function

1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.

Our Customers

In the 21 years, we have customers in many countries around the world.

high demand products handle butterfly valve function
