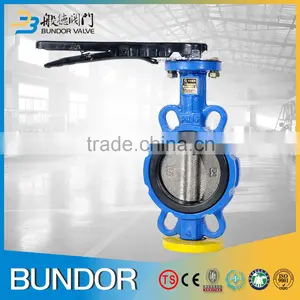

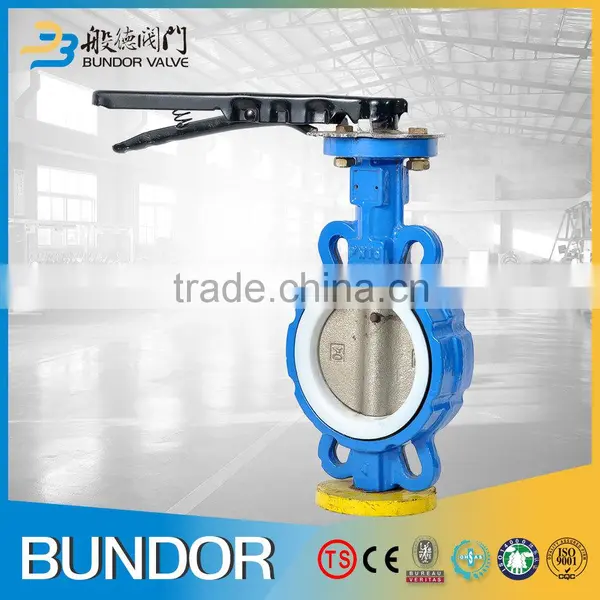

With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron

With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron thumbnail-1
With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron thumbnail-2
With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron thumbnail-3
With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron thumbnail-4
With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron thumbnail-5
With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron thumbnail-6
With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron photo-1

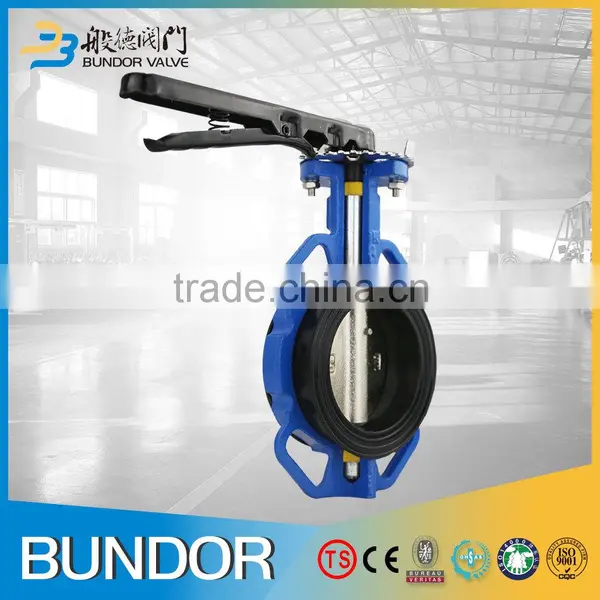

With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron photo-2

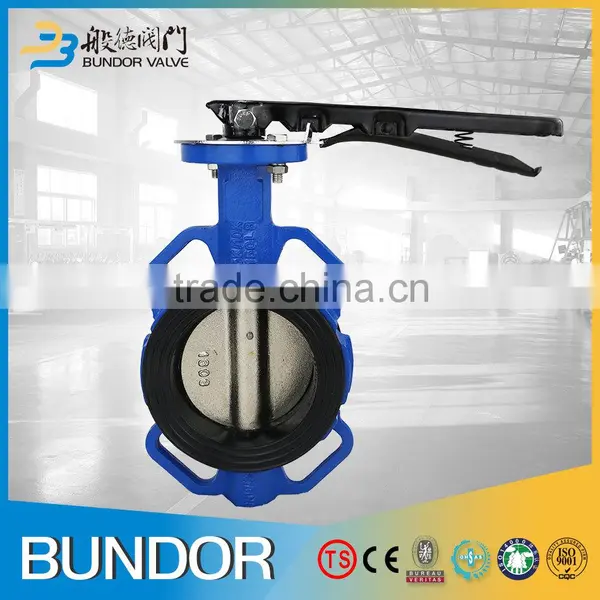

With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron photo-3

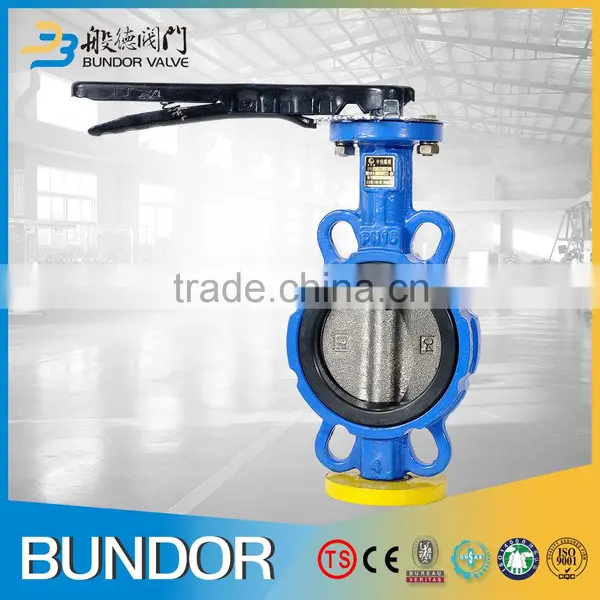

With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron photo-4
With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron photo-5

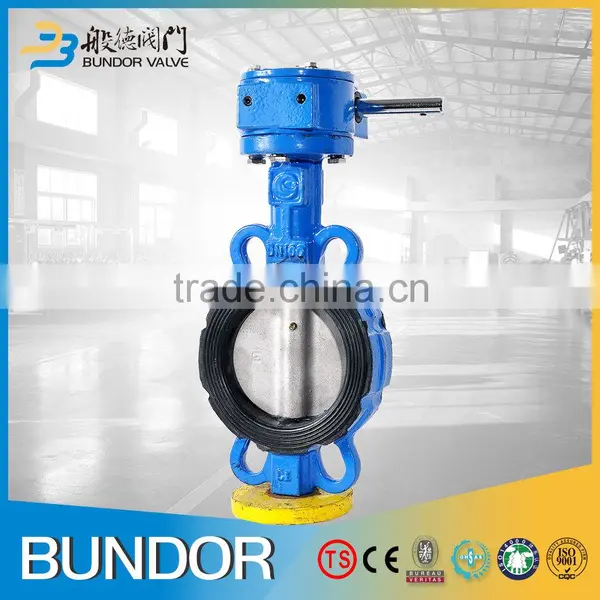

With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron photo-6
US$ 14 - 57 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Butterfly
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Henan Bundor Flow Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Butterfly
Pressure Low Pressure
Power Manual
Material Casting
Temperature of Media Low Temperature
Media Water
Port Size DN40-600mm
Place of Origin Tianjin, China
Model Number butterfly valve
Brand Name BUNDOR
Application General
Product Description
With-Pin Type Wafer Soft Seat Butterfly Valve Cast Iron
2~24"(DN50~DN600)
Pressure
PN10, PN16, Class125
Body Materials
Cast Iron, Ductile Iron , WCB , Stainless Steel, Bronze
Seat Materials
NBR, EPDM, VITON, PTFE
Disc Materials
Ductile Iron, WCB, CF8,CF8M, Al-bronze C958
Stem Materials
SS416, SS304, SS316
Disc type
With-pin, One stem no-pin, Double stem no-pin
Operate
Manual, Worm gear, Pneumatic, Electric-Motorized
End Connection
Wafer

Adoptive Standards:


Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211

Detailed Images

Machine Parts

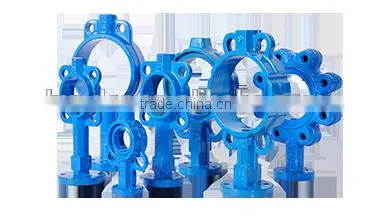

Name: BODY

Brand: BUNDOR

Original: Tianjin

Material: Cast Iron, Ductile Iron, WCB , Stainless Steel

Type:Lug,Wafer,Flange

Machine Parts

Name: Disc
Brand: BUNDOR
Original: Tianjin
Material:Ductile Iron, WCB, CF8,CF8M, Al-bronze C958

Type:With-pin, One stem no-pin, Double stem no-pin

Machine Parts

Name: Stem
Brand: BUNDOR
Original: Tianjin
Material:SS416, SS304, SS316,45#

Machine Parts

Name: Seat
Brand: BUNDOR
Original: Tianjin
Material:NBR, EPDM, VITON,PTFE

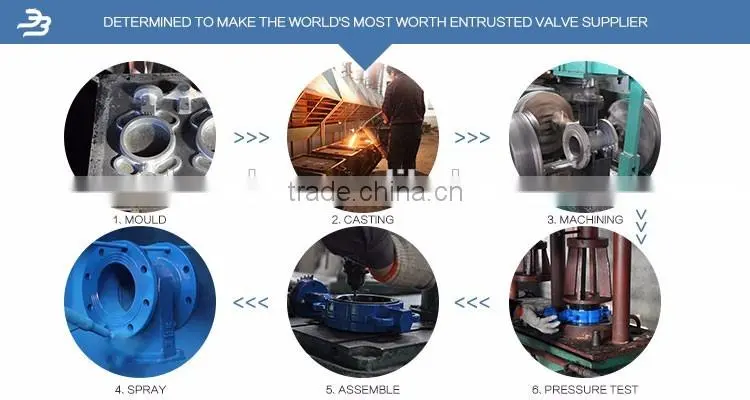

Production Process
