Specifications
Screen casing pipeDiameter ranging from 25 mm to800 mm
Lengths up to 6 meters
Material: Low carbon steel , ss wire andso on
Screen casing pipe/Johnson screen pipe/Galvanized water well screen/ Continuous-slot screen pipe/ Oil casing pipe
Slot size (mm):0.10, 0.15,0.2, 0.25,0.30-3,also achieved upon customer request.
Open area up to 60%.
Material: Low Carbon , Low Carbon Galvanized steel (LCG),, steel treated with plastic spraying, Stainless Steel( 304,etc.)
Lengths up to 6 meters.
Diameter ranging from 25 mm to800 mm
End Connection : Plain beveled ends for butt welding or threaded.
Characteristics: The screen pipes consist of wedge or v-shape profile wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so it has sturdy constriction and good mechanical property.
The wedge or V-shape section plane can avoid blockage and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure. So it can filter sand better.
Specification:
Screen Size | Inside Diameter | Outside Diameter | OD of Female Threaded End | ||||
in | mm | In | mm | in | mm | In | mm |
2 | 51 | 2 | 51 | 25/8 | 67 | 23/4 | 70 |
3 | 76 | 3 | 76 | 35/8 | 92 | 33/4 | 95 |
4 | 102 | 4 | 102 | 45/8 | 117 | 43/4 | 121 |
5 | 127 | 5 | 127 | 55/8 | 143 | 53/4 | 146 |
6 | 152 | 6 | 152 | 65/8 | 168 | 7 | 178 |
8 | 203 | 8 | 203 | 85/8 | 219 | 91/4 | 235 |
10 | 254 | 10 | 254 | 103/4 | 273 | 113/8 | 289 |
12 | 305 | 12 | 305 | 123/4 | 324 | 133/8 | 340 |
14 | 356 | 131/8 | 333 | 14 | 356 | — | — |
16 | 406 | 15 | 381 | 16 | 406 | — | — |
20 | 508 | 18 3/4 | 476 | 20 | 508 | — | — |
Our porudcts
1.Factory

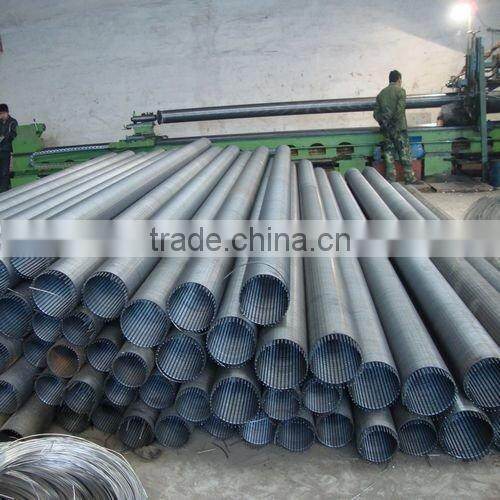

2.Finished products

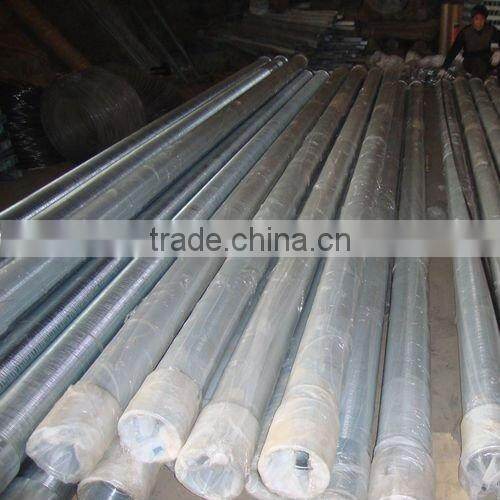

3.Packing
