5.3mm super narrow bezel 46" lcd video wall screen
Features:

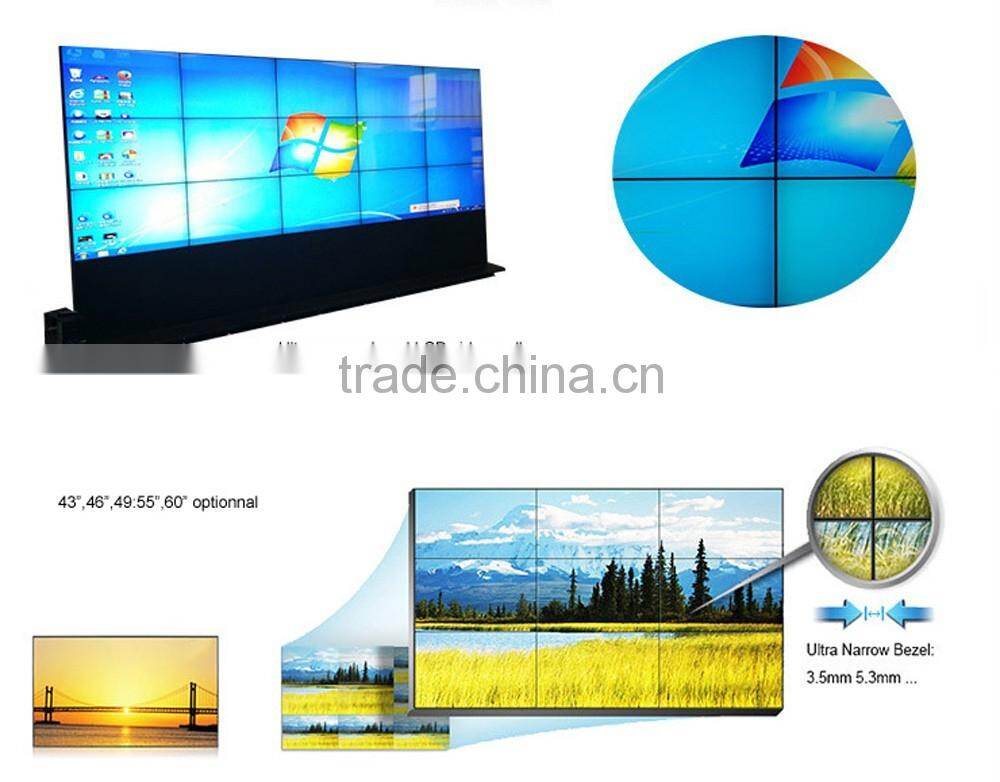

Ultra-narrow border design of the current width of only 5.3mm double edge
Industrial grade professional DID LCD screens, designed for industrial monitoring and multimedia information display
Various display modes such as Full screen display, Display separately on each screen, Free combining display, Picture roaming, Picture overlying, Picture stretch
Support 7x24 hours, 365 days of continuous power-on, high reliability and stability, product life up to 60,000 hours

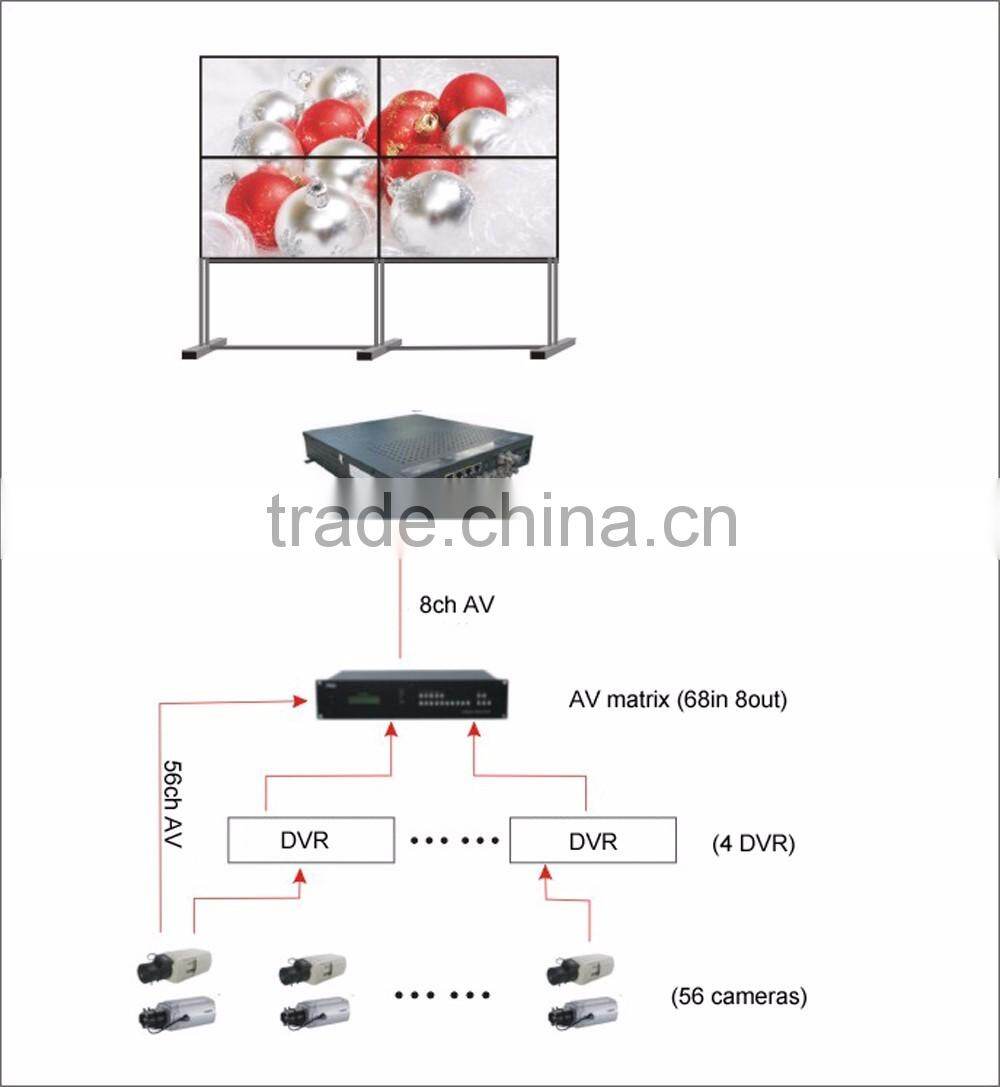

All screens can display the same or different signal sources on a single screen
Combinations :2x2, 2x3, 3x3, 3x4, 4x4, 5x4, 5x5 or any combination customized
Performance:
Response time is less than 6ms, which is prompt
Embedded 3D digital signal noise reduction, support 1920*1080 resolution.
Signal interface --- RS232, HDMI, DVI, VGA, YPbPr, AV
RS232 control, easy operation for the system by control software
Specs |
Model No. |
XS-4600HD-SNL2 |
Panel type |
SAMSUNG TFT-LED |
|
Resolution |
1920x1080 |
|
Bezel |
5.3mm (UP:3.6mm; DOWN:1.7mm; LEF :3.6mm; RIGHT:1.7mm) |
|
Display area |
1018.08(W)*572.67(H) |
|
Pixel pitch (HxV) |
0.177(H)*0.530(V) |
|
Brightness |
500cd/m2 |
|
Contrast |
3500:1 |
|
Viewing angle(H/V) |
178/178(H/V) |
|
Response Time |
6ms |
|
Input and output |
VGA input |
1 |
DVI input |
1 |
|
HDMI input |
1 |
|
BNC input |
2 |
|
BNC output |
1 |
|
RS232 output |
1 |
|
Power supply |
AC voltage |
AC100~240V;50/60HZ |
Power consumption |
≤180W |
|
Standby |
<3W |
|
Temperature |
0℃-40℃ |
|
Physical |
Weight |
30KG |
Menu language |
Chinese / English |
|
Body dimension(Wx H x D)mm |
1023.98mm(W)x578.57mm(H)x79.5mm(D) |
|
Installation |
Wall-mounted, floor stand, cabinet installation optional |
1. Q: Are you a factory or trading company?
A:We are a factory
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen, China, about 15mins by taxi from Baoan airport. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: How can I get some samples?
A: We are honored to offer you samples.
4. Q: How does your factory do regarding quality control?
A:Quality is priority. Shenzhen people always attach great importance to quality controlling from the very beginning to the very end.
5. Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
6. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5.3mm super narrow bezel 46" lcd video wall screen
5.3mm super narrow bezel 46" lcd video wall screen
5.3mm super narrow bezel 46" lcd video wall screen
