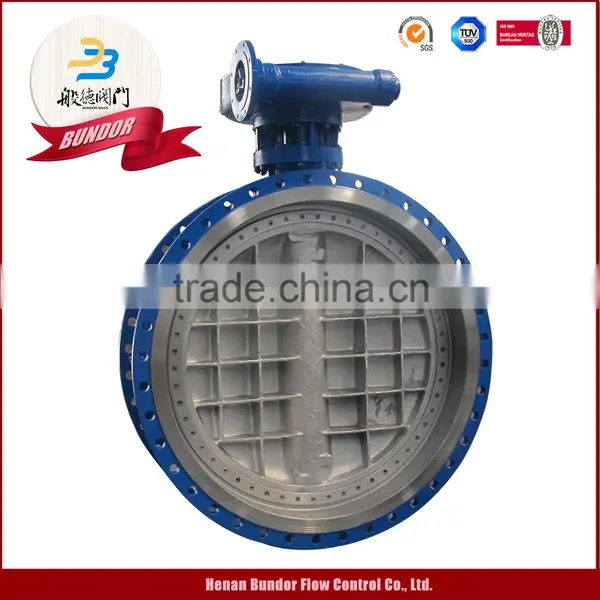

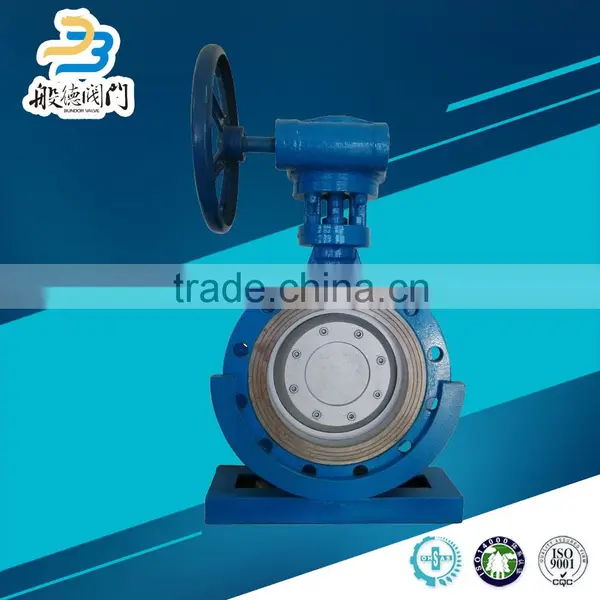

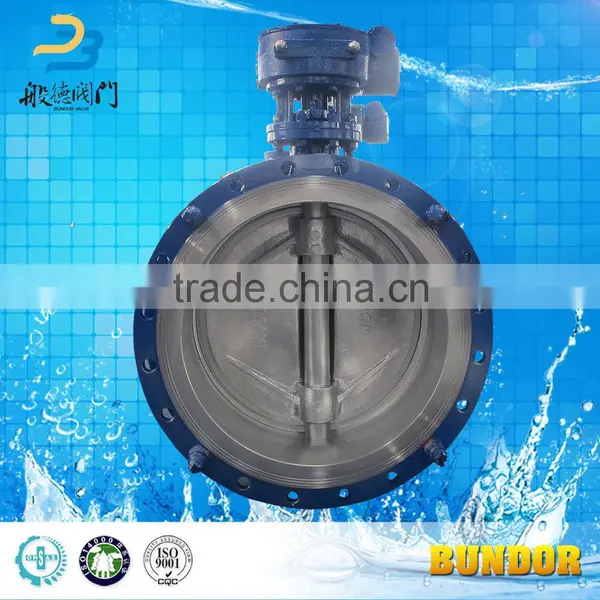

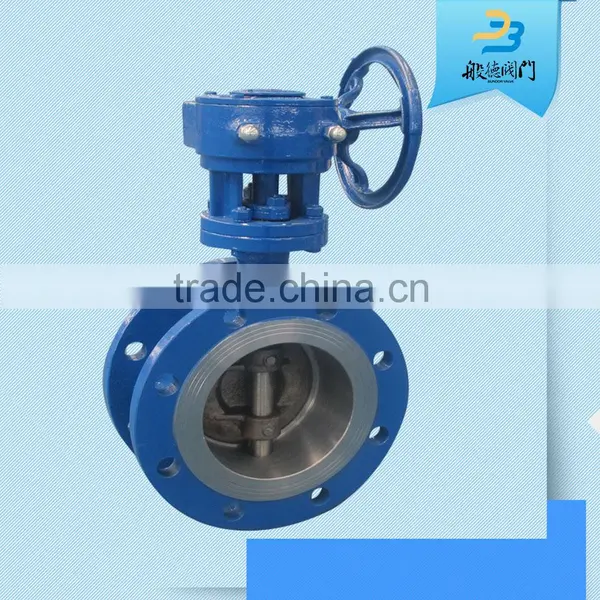

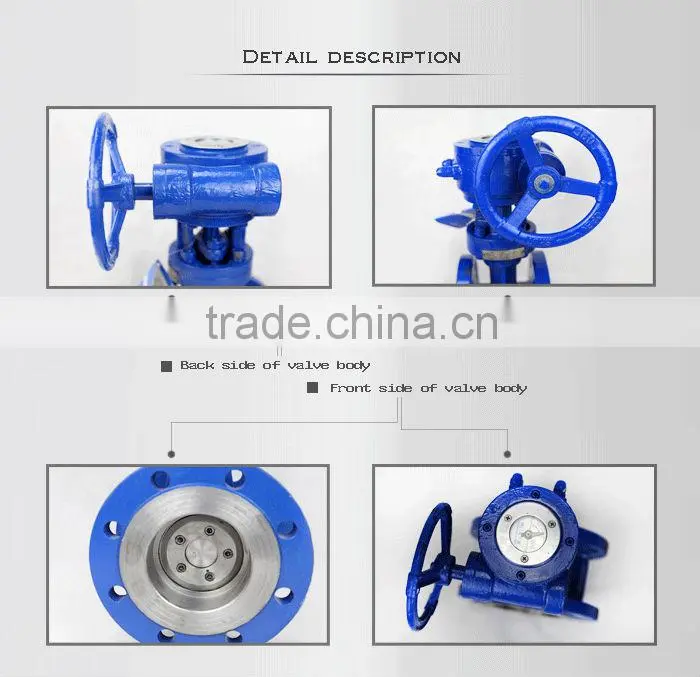

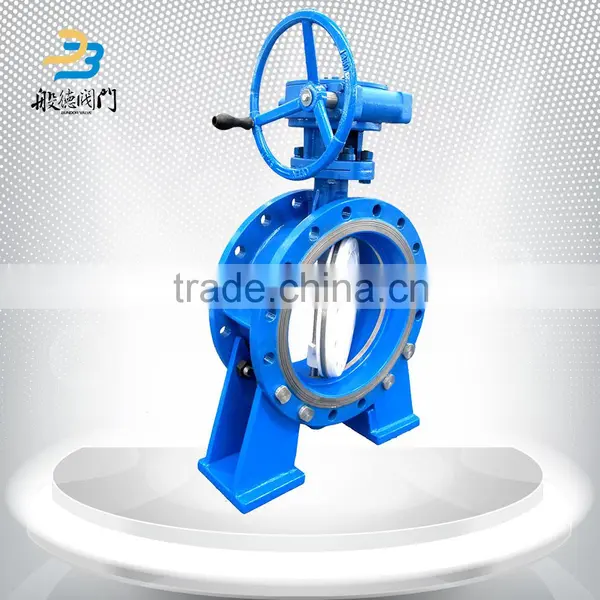

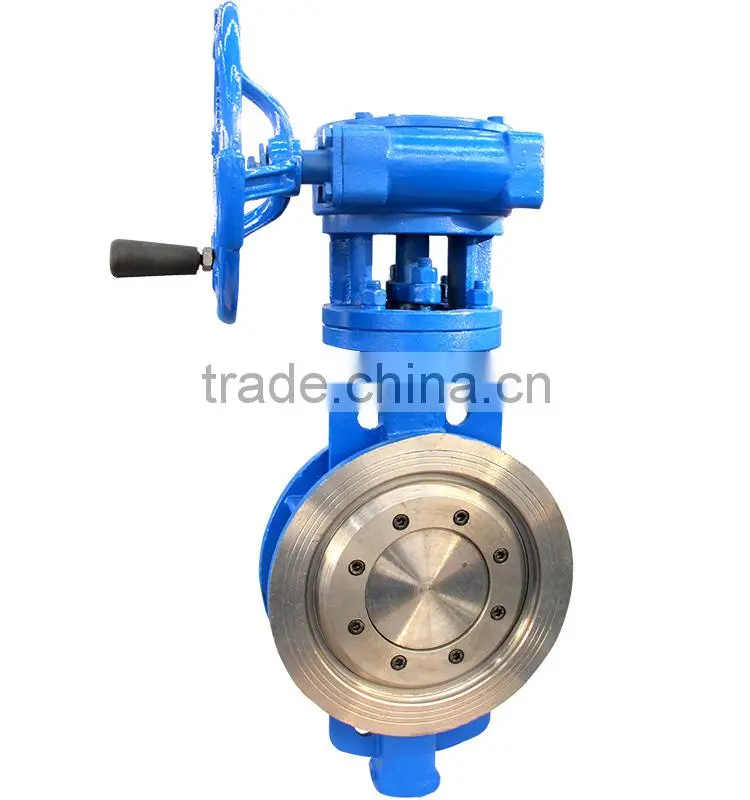

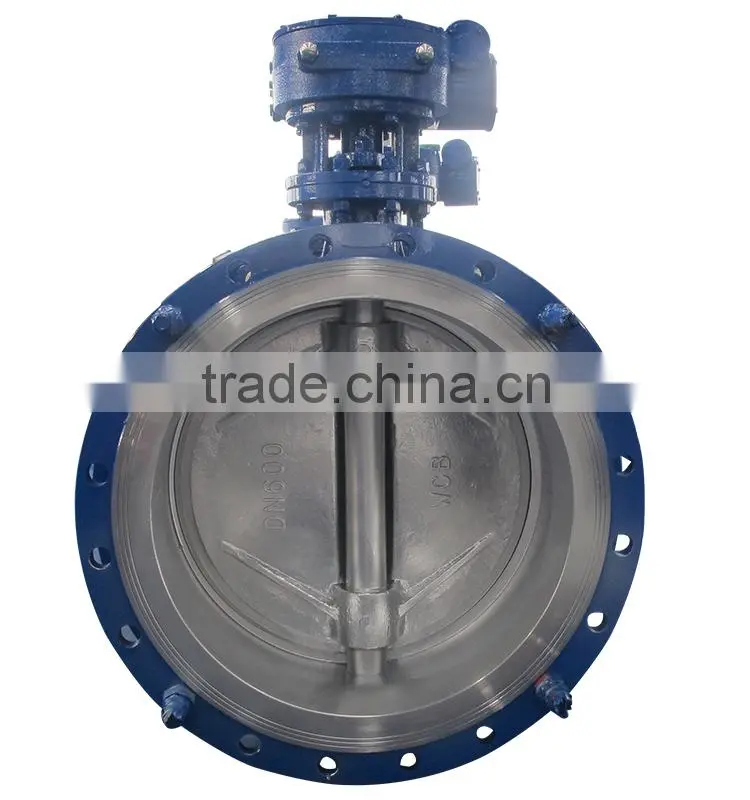

Help CenterHigh Performance 10 Inch Flange Connection Worn Gear Operated Metal Hard Sealing Butterfly Valve
Related Products
-
China Supplier High Performance Casting Iron Ptfe Seat Handle Worm Gear Operated Wafer Type Butterfly ValveUS$ 3.68 - 98.68MOQ: 1 Set -
China Suppliers Dn100 Stainless Steel Eccentric Metal Hard Seal Butterfly ValveUS$ 51 - 169MOQ: 1 Set
-
Casting Iron Manual Operated Lug Type Two Pieces Stem Butterfly Valve Without PinUS$ 14 - 57MOQ: 1 Set
-
Chemical Industry Dn100 Inox Stainless Steel Manual Eccentric Metal Seal Butterfly ValveUS$ 51 - 169MOQ: 1 Set
-
China Supplier High Performance Casting Ptfe Seat Handle Operated Wafer Type Butterfly ValveUS$ 3.68 - 98.68MOQ: 1 Set
Abz Butterfly Valve South Africa Design
|
name | Abz Butterfly Valve South Africa Design |
| Size Range | 2~32"(DN50~DN800) | |
| Pressure | PN10, PN16, Class150 | |
| Body Materials | WCB , Stainless Steel |
|
| Seat | Stainless steel | |
| Disc Materials | WCB, CF8,CF8M | |
| Operate | Manual, Worm gear, Pneumatic, Electric-Motorized |
Product Description
| DN | L | D1 | Z-Φd | H1 | H |
| 50 | 43 | 125 | 4-18 | 112 | 350 |
| 65 | 43 | 145 | 8-18 | 115 | 370 |
| 80 | 64 | 160 | 8-18 | 120 | 380 |
| 100 | 64 | 190 | 8-22 | 132 | 420 |
| 125 | 70 | 220 | 8-26 | 164 | 480 |
| 150 | 76 | 250 | 8-26 | 175 | 550 |
| 200 | 89 | 320 | 12-30 | 200 | 660 |
| 250 | 114 | 385 | 12-33 | 243 | 735 |
| 300 | 114 | 450 | 16-33 | 265 | 895 |
Adoptive Standards:
Valve Design: API 609, MSS SP-67
Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
Pressure Test: API 598
Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
Top Flange: ISO5211
Standard Test :
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
Features:
Anti-Blow Out Stem
Bi-Directional
Fire safe Design
Low Friction Body Seat
Zero Leakage
Product Process
Packaging and transportation
Our history
Product Certification
1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.

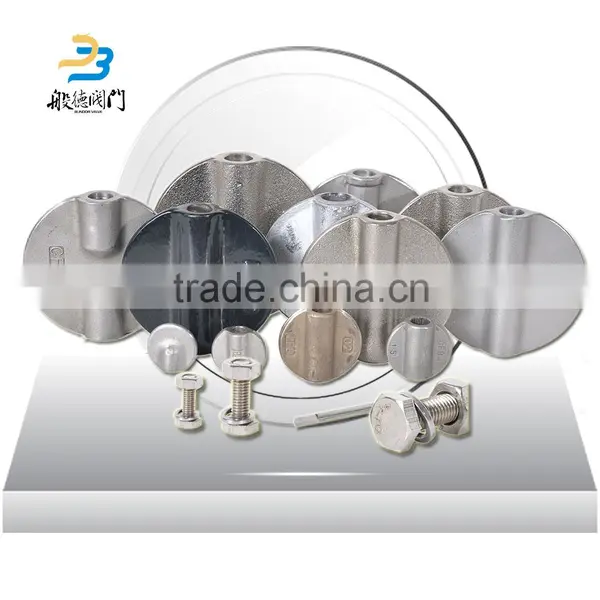

3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 21 years, we have customers in many countries around the world.
