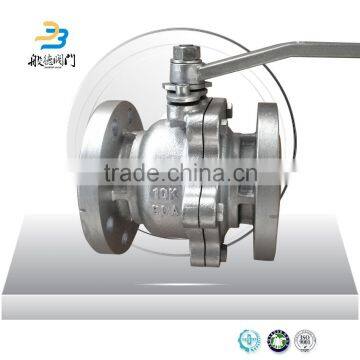

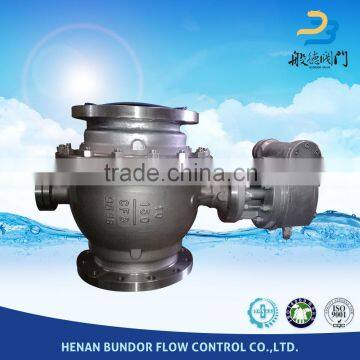

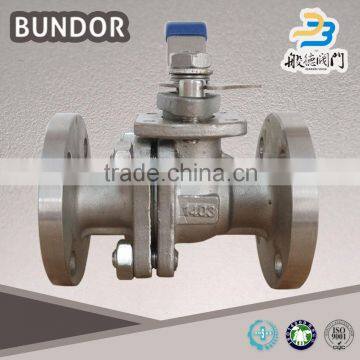

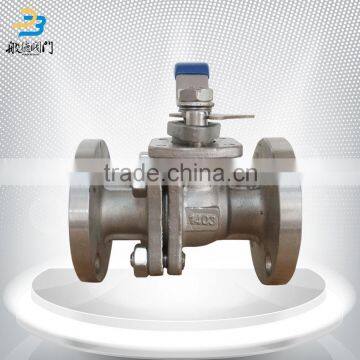

Hs Code 800Lb Forged Steel Ball Valve
|
|
name | Hs Code 800Lb Forged Steel Ball Valve |
| Diameter | DN15-DN200 | |
| Pressure | 1.0Mpa/1.6Mpa/2.5Mpa |
|
| Temperature | -10-150C | |
| Medium | Water, steam,Oil products,nitric acid,acetic acid. | |
| Body Material | Cast Steel, SS304,SS316,WCB |
|
| Connection | Flange |
Product Description
| Material Name | Carbon Steel | Stainless Steel |
| Body | A216 WCB | A351 CF8M |
| Bonnet | A216 WCB | A351 CF8M |
| Ball | A276 304/A276 316 | |
| Stem | 2Cr13 /A276 304 /A276 316 | |
| Seat | PTFE,RPTFE | |
| Gland Packing | PTFE/Flexible Graphite | |
| Gland | A216 WCB | A351 CF8 |
| Bolt | A193-B7 | A193-B8M |
| Nut | A194-2H | A194-8 |
Features
1.Floating Ball Type
2.Split Body, End Entry
3.2-Piece or 3-piece Body
4.Full Port for Pigging Operation
5.Fire Safe
6.Anti static Design
7. Anti-blowout.
8.Gear Operation or Actuator Availabl
Application:
Widely used in petroleum, chemical, power plants, oil, water, steam pipeline connect or disconnect the line of medium lifting device.
Product Process
Packaging and transportation
Our history
Product Certification
1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 21 years, we have customers in many countries around the world.
