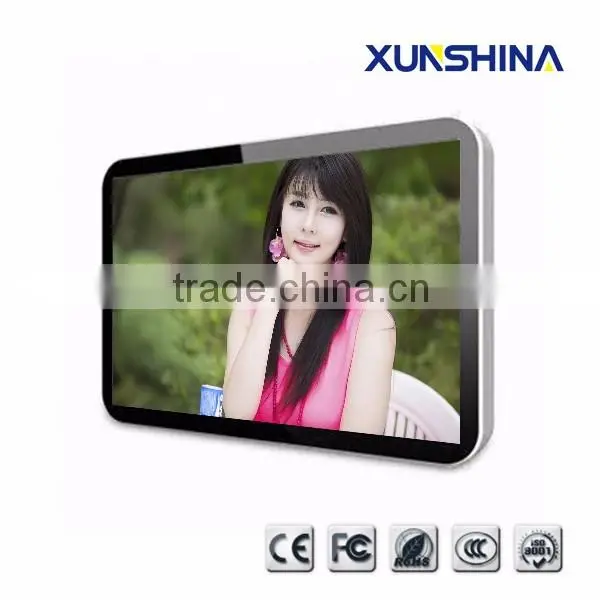

22 inch 3G wifi lcd digital advertising player wall mounted
Chinese/English OSD menu, easy to operate |
Aluminium alloy frame, ultra-thin design, easy to use, fashionable appearance |
Adopt the latest 3D digital decoding and image de-noising technology |
Automatic elimination of ghosting function, protecting long-term use of LCD screen |
A variety of digital images to correct circuit, minimize image distortion |
16.7M color depth, image is more natural and smooth |
6ms fast response time, no shadow or tail in picture |
Built-in power supply, low consumption, longer life time |
Equipped with sensitive infrared receiver, can adjust the parameters of the display via remote control |
Full metal frame structure design, strong anti-electromagnetic disturbance, no radiation |
Display |
Model No. |
XS-2200HD-WNA |
Panel |
LG panel |
|
Screen Size |
22” |
|
Display Area |
478.4(W)x270mm(H) |
|
Resolution |
1680(H)x1050(V) |
|
Brightness |
250cd/m2 |
|
Viewing Angle |
H178º/V178º |
|
Color |
16.7M |
|
Contrast |
1000:1 |
|
Response Time |
8ms |
|
Hardware |
CPU |
A20, dual-core 1GHZ |
Software |
B/S structure, multimedia information distribution system |
|
Memory |
1G |
|
SD Card |
Compatible SD and TF card |
|
Built-in Memory |
4G |
|
Serial Port |
x3 |
|
Interface |
1xRJ45, 2xUSB |
|
|
Supported Formats |
Operation System |
Android 4.2.2 |
Video Decode |
Real-time video decoding, MPEG-1,NPEG-2,MPEG-4 |
|
Decoding Resolution |
H.264, MVC.VP8 |
|
Video Code |
Maximum support 1080P@60fps |
|
Picture Format |
JPG, JPEG, BMP, PNP, GIF |
|
Play Mode |
Loop play, time play, spots playing and other play modes |
|
Text Format |
TXT(doc) |
|
Video Format |
MPEG1, MPEG2, MPEG4, SP/AP GMC, XVID, H.263, H.264. BP/MPHP, WMV7/8WMV9/VC1, BP/P/AP, VP6/8, AVS, JPEG/MJPEG |
|
Audio Format |
MP3,WMA,MP2,0GG, AAC, M4A, FLAC,APE,3GP,WAV |
|
3G Module |
1xPCIE slot, 1xUSB port |
|
LVDS Output |
Supported |
|
|
Additional Functions |
RTC |
Supported |
Timer Switch |
Supported |
|
System Upgrade |
USB upgrade, network upgrade |
|
|
Complete Machine |
Front Panel |
Ultra-high-quality black tempered glass (transmittance of >=98%) |
Frame |
High strength aluminum frame (tensile strength>480 MPa) |
|
Rear Cover |
Cold-rolled steel, black paint |
|
Body Dimension |
530mm(W)x353mm(H)x40mm(D) |
|
Power Supply |
AC100-240V |
|
Power Consumption |
50W |
|
Working Temperature |
0℃-50℃ |
|
|
Trouble-free work hours |
28000hrs |
|
Life |
40000hrs |
The reason why choose us?
1, We are professional manufacturer for digital signage, lcd video wall,cctv lcd monitor, touchscreen all-in-
one, etc.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service
online 24 hours for customers.
3, We have a very strong quality control.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
5, Experienced R&D and QC staffs guarantee the product quality and keep updating products and technology.
6, Warranty (1-3 year)
22 inch 3G wifi lcd digital advertising player wall mounted
22 inch 3G wifi lcd digital advertising player wall mounted
22 inch 3G wifi lcd digital advertising player wall mounted
