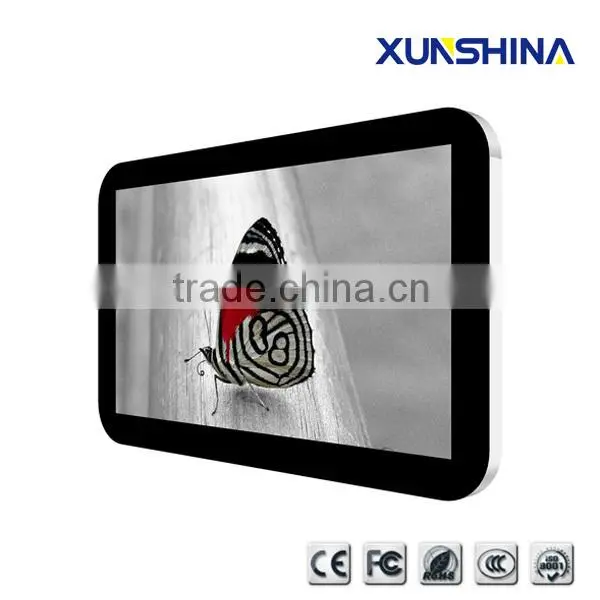

55 inch Wall-mounted Android Network LCD Digital Signage Player

Chinese/English OSD menu, easy to operate

Aluminium alloy frame, ultra-thin design, easy to use, fashionable appearance

Adopt the latest 3D digital decoding and image de-noising technology

Automatic elimination of ghosting function, protecting long-term use of LCD screen

A variety of digital images to correct circuit, minimize image distortion

16.7M color depth, image is more natural and smooth

6ms fast response time, no shadow or tail in picture

Built-in power supply, low consumption, longer life time

Equipped with sensitive infrared receiver, can adjust the parameters of the display via remote control

Full metal frame structure design, strong anti-electromagnetic disturbance, no radiation

Main Hardware

Model No.

XS-5500HD-WNA

Panel

LG panel

Size

55”

Body Dimension

1310(W)x781(H)x60.5(D)mm

Body Material

Tempered glass+Al alloy

Frame Surface

Tempered glass

Display Color

16.7M(8-bit)

Response Time

6ms

Brightness

350cd/m2

Viewing Angle

178º/178º

Display Ratio

16:9

Display Area

1209.6x680.4mm(H*V)

Backlight Life

30000H

Backlight Type

LED

Scan Frequency

60HZ

Resolution

1920x1080

Power

200W

Contrast

3000:1

Voltage

110-240V ( AC)

Net Weight

50KG

Panel

Operation System

Android 4.2.2

CPU

Allwinner A20, dual-core 1GHZ

RAM

1G(optional)

Nand Flash

4G(optional)

Decoding Resolution

1080P

Play Mode

Support loop play, time play, spots playing and other play modes

Network

Support 3G, Ethernet, WIFI, wireless peripheral expansion

Video Format

Support WMV, AVI, FIV, RM. MVB, MPEG, TS, MP4, etc.

Image Format

Support BMP, JPEG, PNG, GIF

USB2.0 Port

x2

Serial Port

x3

Ethernet

x1, 10M/100M self-adaptive

SD Card

Compatible SD and TF card

SATA Port

Support built-in SATA hard disk

LVDS Output

x1, Can directly drive 50/ 60HZ LCD screen

HDMI Output

x1, Support 1080P output(At present, only quad-core motherboard supports LVDS and HDMI dual output)

Audio/Video Output

Support CVBS output, left and right channel output, built-in dual-channel 4R/20W, 8R/10W amplifier

RTC

Supported

Timer Switch

Supported

System Upgrade

Support USB upgrade, network upgrade
