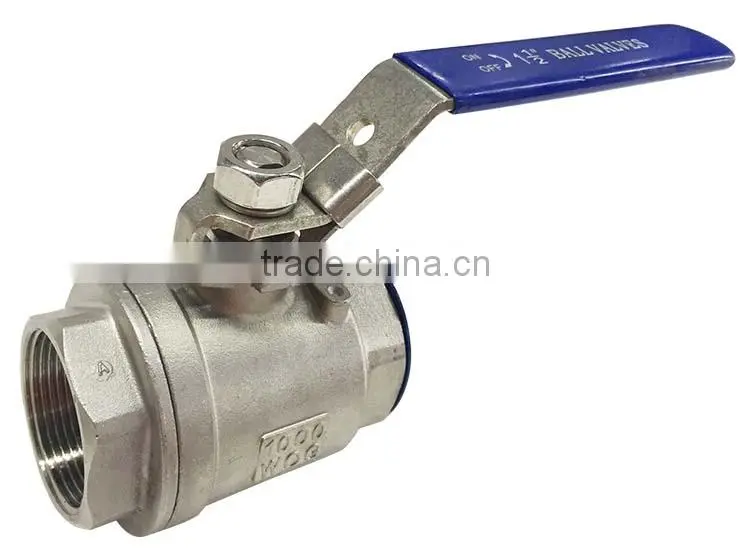

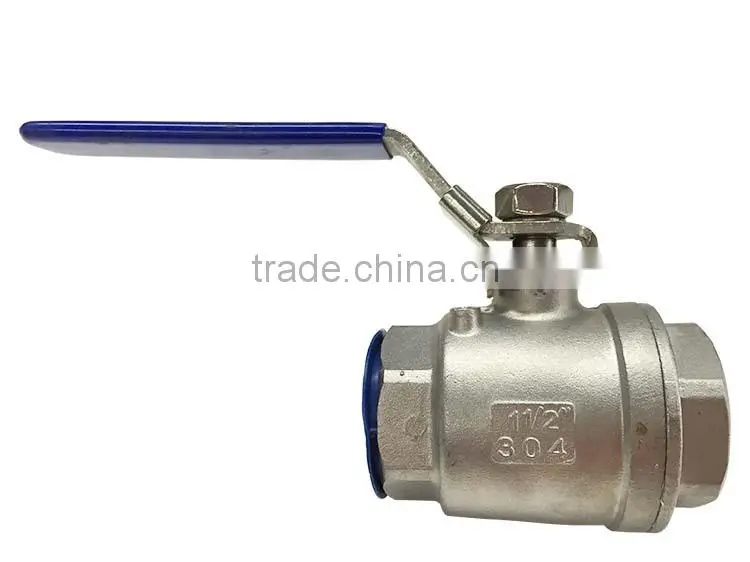

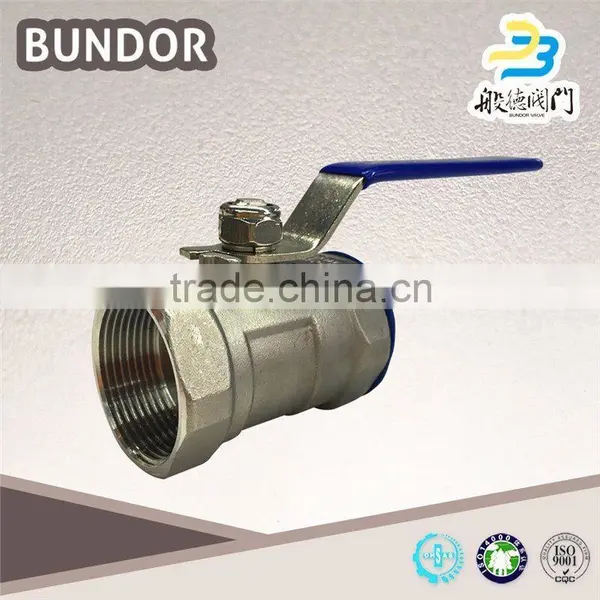

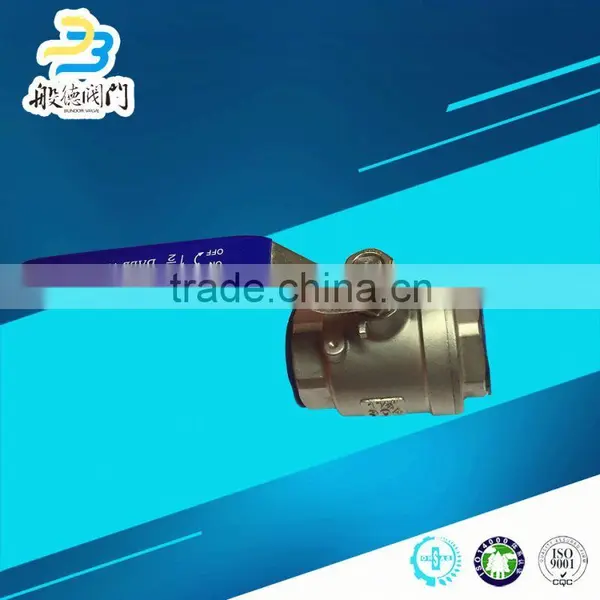

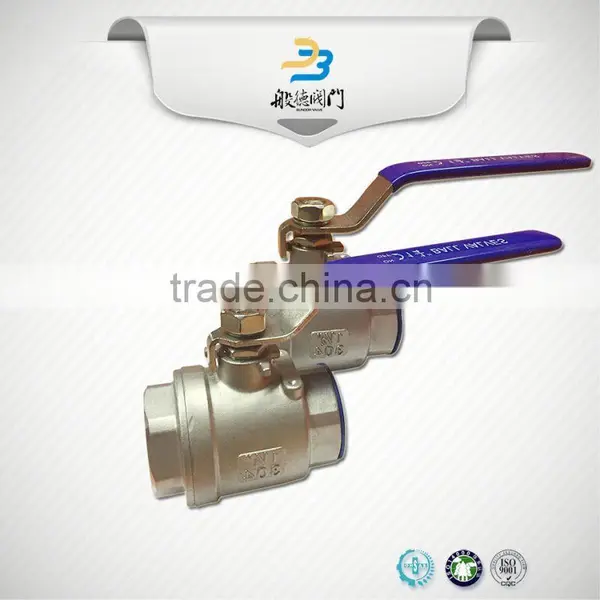

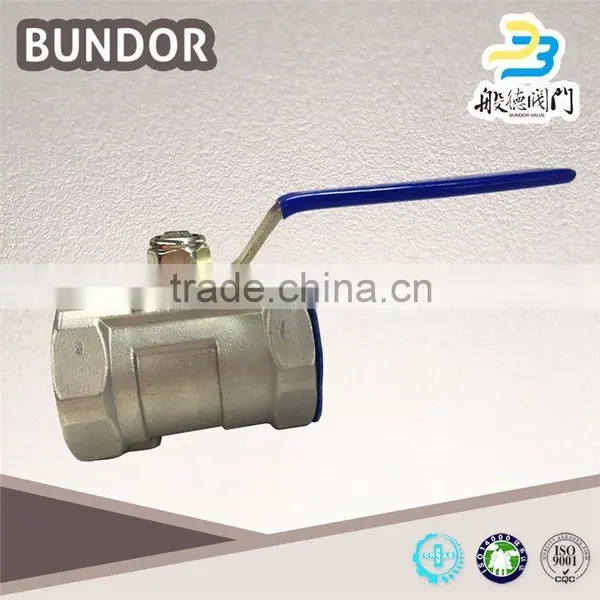

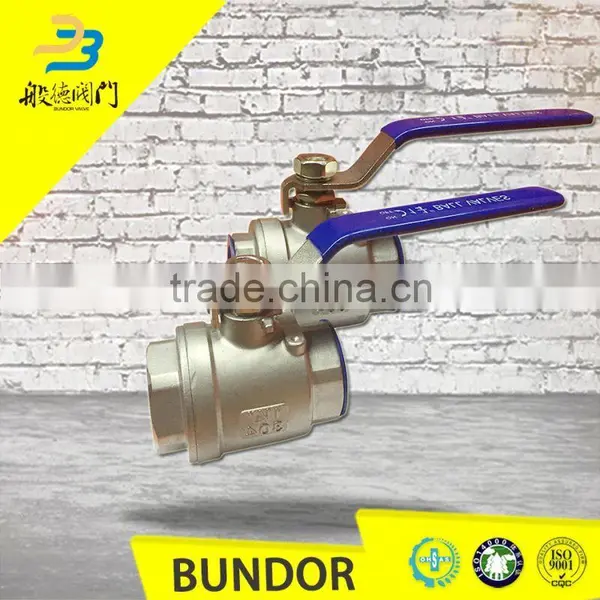

Actuator Mini Ball Valve Handles
|
|
name | Actuator Mini Ball Valve Handles |
| Diameter | 3/8"-2" | |
| Pressure | PN10-PN64 |
|
| Temperature | -40 150.C | |
| Medium | Water, steam,Oil products,nitric acid,acetic acid. | |
| Body Material | 304,316,WCB,1000WOG |
|
| Standard | ISO,API,GB,BS |
Product Description
| Nominal pressure | PN | 1.6,2.5,4.0,6.4 | mpa |
| Strength testing pressure | PT | 2.4,3.8,6.0,9.6 | |
| Seat testing pressure(low pressure) | 0.6 | ||
| Seat testing pressure(high pressure) | 1.8,2.8,4.4,7.1 | ||
| Applicable medium | Q 11F -(16-64)C | Q11F-(16-64)P | Q 11F -(16-64)R |
| Water, oil, gas | Nitric acid | Acetic acid | |
| Applicable temperature | -40 -180 centigrade | ||
Features of Actuator Mini Ball Valve Handles
1.Small fluid resistance, the drag coefficient is equal to the same length of pipe.
2. Simple structure, small size and light weight. 3. Solid and reliable, the material sealing surface is currently widely used of plastic, sealing well, has also been widely used in the vacuum system
Application:
Widely used in petroleum, chemical, power plants, oil, water, steam pipeline connect or disconnect the line of medium lifting device.
Product Process
Packaging and transportation
Our history
Product Certification
1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 21 years, we have customers in many countries around the world.
