Specifications
1.Stainless steel water candle filter2.OEM service
petitive price

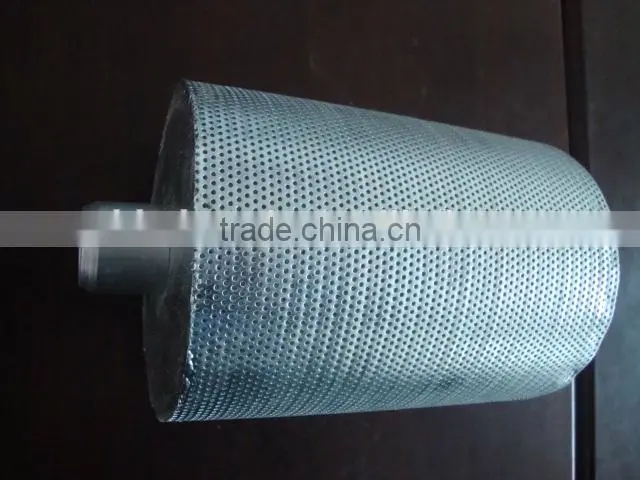

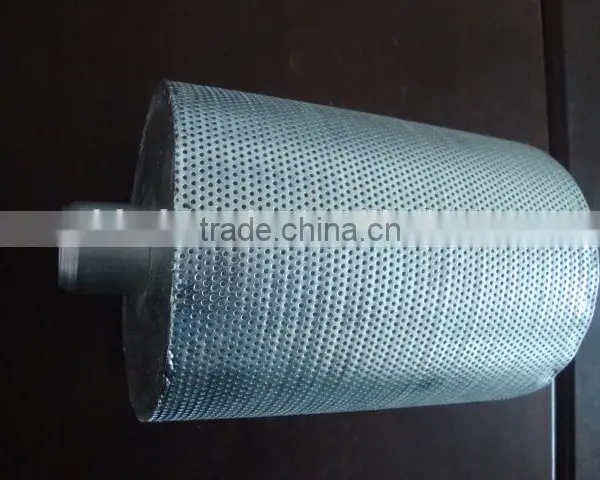

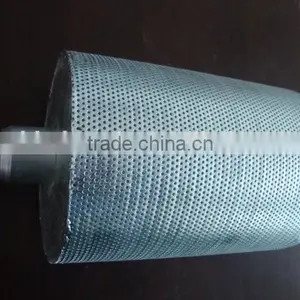

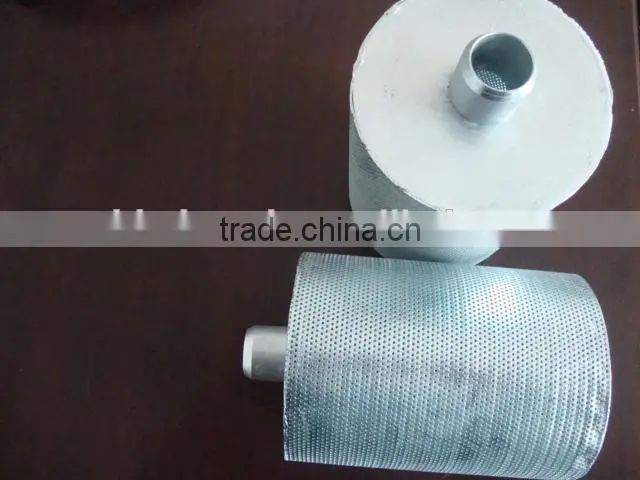

Stainless steel water candle filter cartridge
stainless steel cartridges provide the optimum filtration solution for fluids and gases in high temperature and high flow rate
Applications
Available in a cylindrical or pleated design, cleanable stainless steel cartridges are the logical choice when natural and synthetic media cartridges cannot meet aggressive process conditions.reusable 304 and 316 grade stainless steel cartridges offer versatility of choice with fourteen nominal particle removal ratings, six standard lengths and a variety of end configurations and seal materials.
Benefits
1.temperature capability up to 500° F with synthetic seals; up to 1500°F with nPt connections
2.Available in 304 and 316 stainless steel for compatibility choice with aggressive chemicals
3.Available in fourteen nominal ratings from 2 to 840 microns for a wide range of particle size removal
4.dimensional integrity of stainless steel media accomodates high flow rate and high temperature systems
5.cartridges may be cleaned and reused
6.Available with a wide range of grommet and o-ring materials to optimize fluid and temperature compatibility
7.variety of seal configurations allow retrofit in many filter vessel designs
8.welded and crimped construction eliminates the need for adhesives which can be a contaminant source and limit temperature range
9.Pleated surface maximizes filtration area for longer service life
10.Plain (cylindrical) surface provides ease of cleaning
11.optional perforated stainless steel pleat protectors minimize handling damage
12.Meets FdA guidelines for use with potable and edible liquids
dimensions:
outside diameter: 2-5/8 in (67 mm)
Inside diameter:1-1/16 in (27 mm)
Lengths (nominal):10, 20 and 30 in
