Specifications
pact structure, high efficiency;2.stable quality, good exchangeability;
3.high reliability, beautiful layout.

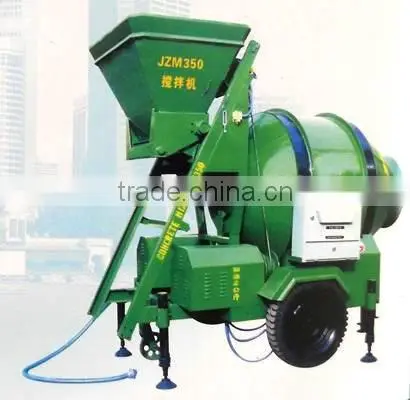

JZM Concrete Mixer
JZM series mixer is a gravity type of double-conic reversing drum concrete mixer, the drum transit by gear or friction wheel, the drum rotates clockwise during mixing and anti-clockwise during discharging. It is portable and movable. The mixer can mix plasticity and damp half-dry concrete. The JZM series concrete mixer can be used in mixing dry hardness, plastic light aggregate concrete with ash, lime mortar widely used in building sites, road, bridges and concrete component factories.
Main Features:
compact structure, high efficiency;
stable quality, good exchangeability;
high reliability, beautiful layout.
Specification:
Main Technical Parameters: | ||
JZM350 |
JZM500 |
|
Discharge Volume (L) |
350 |
500 |
Charge Volume (L) |
560 |
800 |
Max. Productivity (m³/h) |
13 |
18~20 |
Max. Aggregate Size (mm) |
60 |
60 |
Rotating Speed (r/min) |
15 |
15 |
Water Feeding Precision |
≤2% |
≤2% |
Mixing Motor (KW) |
5.5 |
2×5.5 |
Lifting Motor (KW) |
4.5 |
4.5 |
Water Pump Motor (KW) |
0.55 |
1.1 |
Tire Size |
6.50-16 |
7.00-16 |
Max. Dragging Speed (km/h) |
20 |
20 |
Dimension (L×W×H) (mm) |
3800×2050×2690 |
5710×2350×5050 |
Overall Weight (kg) |
1970 |
4100 |
