Specifications
Dongfeng U-Vane Series Ambulance:1. Engine type:Cummins EQB235-20
2. Emission : Euro III
3. Gearbox: Hyundai 6 gears
4x2 Ambulance
1. Introduction
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in South Africa in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.
We export commercial vehicles cover all series of Dongfeng Brand.
- Dump Truck Series
- Cargo Truck Series
- Tractor Series
- Special Purpose Vehicles
- Military Vehicle Series
- Passenger Vehicles Series
2. Feature
- The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfort ability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also brings down the drag coefficient to reduce the fuel consumption.
- The engine: The tractors used Cummins engine which provide excellent grade ability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.
- The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent traffic ability and adaptability to various vile roads.
- The gearbox: The Fast Brand gearbox adopts serration processing technology to lower the noise and vibration and increase the reliability.
3. Specification
Warranty Period: 24 months(calculating from the date the vehicle arrives at the destination port) or 50,000 kilometers, whichever comes first..
Dimensions |
Ward (Monitorning) Type |
Transit Type |
Model |
DFA5040XJH3A1M |
DFA5043XJH3A1M |
Overall Length |
5750 mm |
5750 mm |
Overall Width |
2001 mm |
2001 mm |
Overall Height |
2645 mm |
2625 mm |
Wheelbase |
3610 mm |
3610 mm |
Curb Weight |
3200kg |
3100kg |
Gross Vehicle Weight |
3600kg |
3600kg |
Seats Capacity |
3~6 |
3~7 |
Tyre |
215/75 R16C |
215/75 R16C |
Max Speed |
150km/h |
150km/h |
Driving Mode |
Front Driving |
Front Driving |
|
|
|
Engine and Gear Box |
|
|
Engine Model |
Cummins EQB235-20 |
|
Engine Type |
4 Stroke in Line, High Pression Common Rail, High Pressure Inner-Cooled Engine |
|
Position/Fuel |
Rear/Gasoline |
|
Max Output |
173 kw |
|
Max Power |
100/3600 Kw/rpm |
|
Max Torque |
280/180-3000Nm/rpm |
|
Displacement |
3.0 L |
|
Emission Standard |
Euro III |
|
Gear Box |
Hyundai 6 gears |
|
Transmission ratio |
1st-6th |
3.875, 2.13, 1.324, 0.977, 0.939, 0.814 |
Final |
1st~4th:4.5;5th~6th and reveres:3.706 |
|
Rev. |
4.413 |
|
Blue blasting flash lights and Warning light alarm controller |
|
|
Headlight night traffic light box |
Stainless steel waste bucket |
Dc electric fan |
Tail rescue astern high brightness light |
Bench Seat(with storage combinet) |
Spot Light |
Tail bar blue blasting flash lights |
Central oxygen system |
Muti functional Electial Clock |
Blasting flash square lamp |
Window patch |
Former aft talkback system |
Roof pod and on both sides of the Guardrail |
Easy clean easy disinfection PVC floor |
Additional Battery and Start cell automatic switching system |
Guardrail site light |
Body novel appearance |
|
Front/Rear Independent A/C system |
Fire extinguisher |
|
Easy cleaning environmental protection a forming polymer interior |
10L oxygen cylinder |
|
Ceiling type luxury infusion hook |
Automatic car stretcher |
|
With observation window full isolation of the diaphragm |
Shovel Stecher |
|
Combination condole ark |
1KVA UPS Electrial Power System |
|
Oxygen cylinder, shovel type stretcher combination |
1.5KW Inverter power supply system |
|
Muti-Funtional Strengthen equipment support |
External power supply system |
|
Medicine storage combination cabinet |
Emergency bin ac/dc power supply socket |
|
Electricial hand washingbasin and first-aid box combination cabinet |
20m Movable Cable(230V/16A Waterproof) |
|
Liquid soap container and carton |
20W ultraviolet air sterilization lamp |
|
Clean water supply, sewage recovery system |
Power control panel |
|
Luxury folding monitoring seat |
Vehicle power supply system |
|

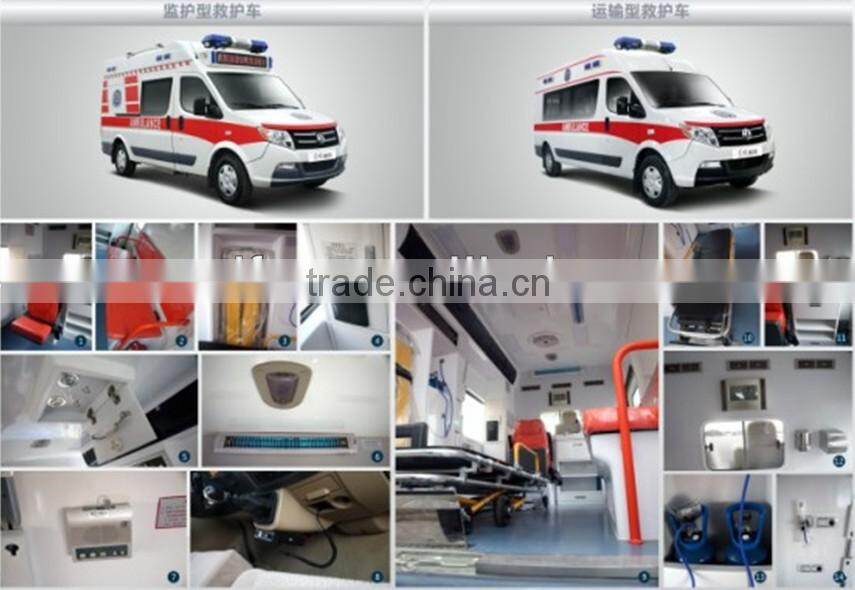

4. Other Picture:
