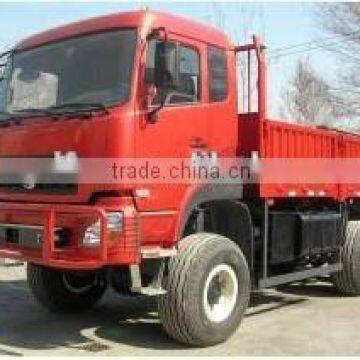

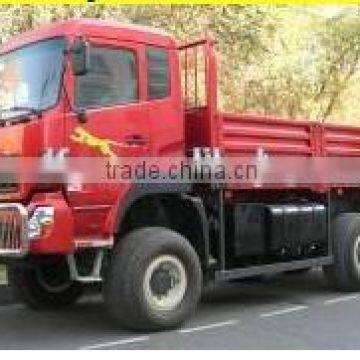

Hot sale Dongfeng 6x6 offroad truck EQ2250AX
Dongfeng Mid-south Enterprise Co.,Ltd. as the subsidiary company of Dongfeng group, is specialized in exporting Dongfeng commercial vehicles, auto components and maintenance equipment of vehicles. For 45
years development, Dongfeng commercial vehicle has cooperated with Japan’s Nissan, Renault, ZF gearbox, France Fusite, PAS in France and the Cummins, Fast of the United States and other international auto
giants to carry out the strategic development of the products.
Here, we enclose our product list as followings for your reference.
Dump Truck Series:
6×4, 8×4 ---Heavy duty tipper Dongfeng T-Lift with loading capacity 20 to 55Ton,
6×4, 4×2--- Medium duty tipper Donfeng Kingrun with loading capacity 15 to 20Ton,
4×2--- Light duty tipper truck Dongfeng Rituo with loading capacity from 3Ton to 14Ton.
Tractor Series: 4×2,6×4 Dongfeng Kinland Tractor Head Special suit for middle and long distance transport.
Cargo Truck Series:
Dolica 4x2 ---light cargo truck with capaity from 2 to 10 ton,
Capation 4x2 ---high end light cargo truck with capacity from 2-10 ton,
Kingrun 4x2 ---Medium duty cargo truck with capacity from 13-20 ton,
Kingland 6x2, 6x4 and 8x4 ---Heavy duty cargo truck with capacity from 20-40 ton.
Special Purpose Vehicle Series: . Concrete Mixer Trucks, Suction Sewage Trucks, Sweeper Trucks, Fuel Tanker, Water Tanker, Refrigerated Trucks, High Platform Truck, Garbage Trucks, Fire Fighting Trucks, Truck Crane and So on.
Auto Spare Parts: Series Auto Parts of Series Vehicle and Machinery, like filter, PTO
Specification:
| No. | item | Date& notes in explanation |
| 1 | ||
| 2 | Overall dimensions (L×W×H) mm | 8470×2500×3520 |
| 3 | Cargo internal dimensions (L×W×H) mm | --------- |
| 4 | G.V.W. Kg | 24995 |
| 5 | Rated Loading Weight Kg | 12870 |
| 6 | Curb Weight Kg | 11950 |
| 7 | Axle Loading Capacity T | 7~10~10 |
| 8 | Front/Rear Tread mm | 2110 / 2110 |
| 9 | No. of Alex/Wheelbase mm | 3 / 3800+1400 |
| 10 | No.of Spring Leaf | 9/10 |
| 11 | Driving Mode and Working Condition | 6×6,Be in the desert , the Gobi Desert , dust , fields on a hill and muddy , rugged proper road surface school assignment |
| 12 | Driving Axle | Pair of level reduces the speed (take the wheel edge to reduce the speed) , takes the wheel room and the axis room to dispatch the fast function |
| 13 | Driver's cab | “D310” closely cropped hair once arranges half , entire metal , curved surface overall view style keeps out the wind , wide vision, finishes sealing up completely |
| 14 | Angle of approach/departure (°) | 30 ° / 22° |
| 15 | Front/Rear Suspension mm | 1770 / 1500 |
| 16 | Max Speed km/h | 76 |
| 17 | Steering and Min Turning Radius m | Steering wheel (power steering) 10.5 m |
| 18 | Max.Gradebility | 60% |
| 19 | Min.ground clearance mm | 430 |
| 20 | Max Depth mm | 900 |
| 21 | Engine Manufacturer type , pattern | Cummins ISLe 310 30 disesl engine ,Six-sylinder in line turbocharged middle is cooled, |
| 22 | Engine Power kw | 275/2100 |
| Rated torque (N.m/rpm) | 1550/1100-1400 | |
| Engine bore , stroke mm | 114×145 | |
| discharge volume ml | 8900 | |
| 23 | Fuel | diesel oil |
| Fuel tank volume L | 400 | |
| Tire off-highway tire/ desert tire | 14.00R20 / 20.00-20 | |
| Brake system | The double return route compresses , the spring appliesthe brake the air chamber, the engine exhaust applies the brake,manually controlled valve parking brake | |
| Transmission case | 9 blocks machinery style , hydraulic pressure renders help | |
| Clutch | The monolithic does the dyadic friction clutch 430 | |
| Empty space is filtered | Three-level air admission of multitube whorl stream style system may have an effect to prevent extremely minute dust from entering an engine | |
| Carriage section | Stamp the width riveting structure , the carriage outside 860, | |
| mm | 300×80×8+8 |
