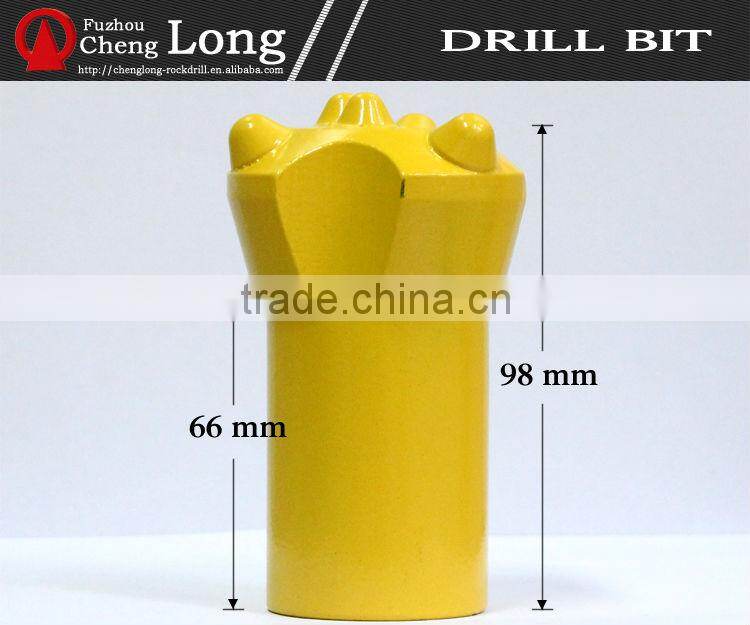

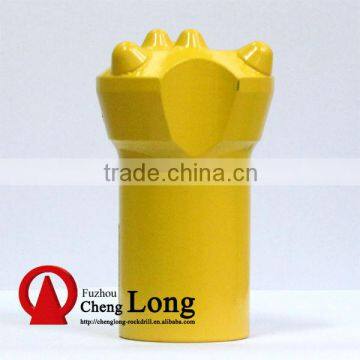

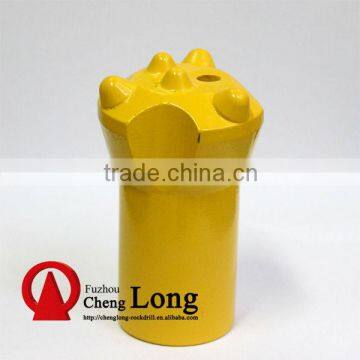

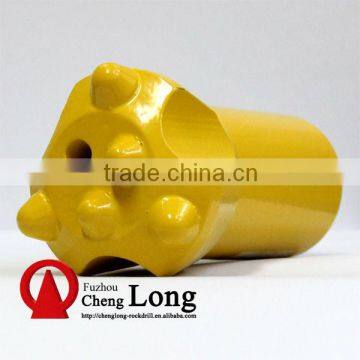

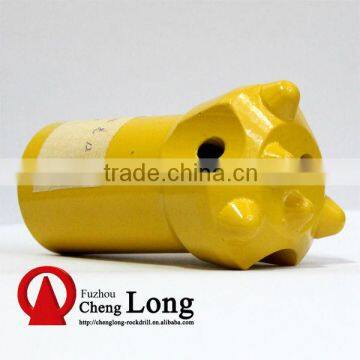

0.51in Impact Drill
US$ 1 - 30
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Chenglong
Model Number:
CL-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Fujian, China
Brand Name
Chenglong
Model Number
CL-01
Type
Drill Bit
Machine Type
Drilling Tool
Certification
API
Material
Carbon Steel
Processing Type
Forging
Use
Coal Mining
Specifications
1.High quality alloy forged2.Scientific and rational design

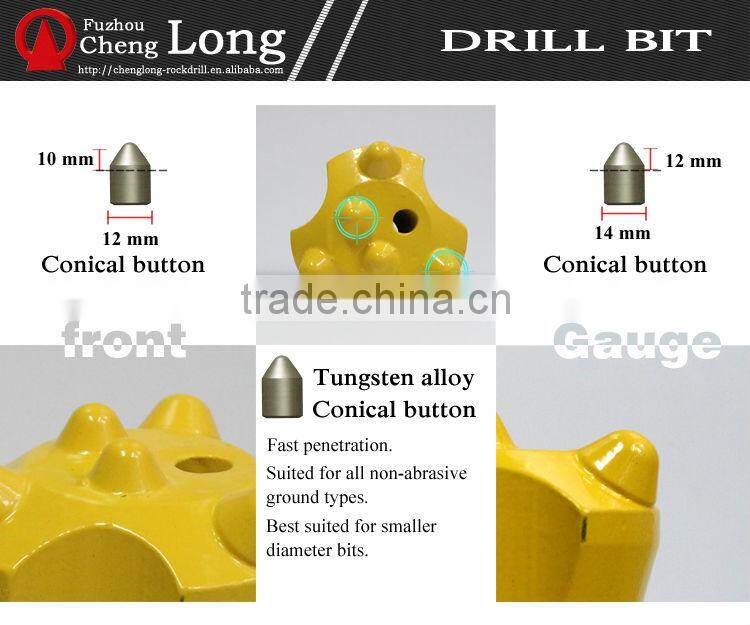

3.Alloy cold pressing and embedding
4.We can provide all size
0.51in impact drill
We are a manufacturer specializes in producing kinds of rock drilling tools includes taper chisel bits, cross bits, button bits, tapered drill rods, integral drill steels, plug hole integral steels, pick rods, thread cross bits, thread button bits, retrac button bits, extension rods, shank adapter, coupling sleeve, etc.
All the products adopt the best alloy and high-intensity steel as material according to the different working conditions.
All the products adopt the best alloy and high-intensity steel as material according to the different working conditions.
Rock Drill Tool.
The chisel bit is made from grade hard alloy and special steel, generally matched with the light-duty rock drill, to drill the rock hole within diameter of 50mm.
It is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc,.
It is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc,.
Drill Type |
Bit diamater (D) |
Taper |
Whter hole |
(d)
mm
|
Part on |
|
mm |
in |
|||||
Chisel Type Bits |
30 |
1 3/16 |
7° |
2 |
22 |
Y130-722 |
32 |
1 17/64 |
7° |
2 |
22 |
Y132-722 |
|
34 |
1 11/32 |
7° |
2 |
22 |
Y134-722 |
|
36 |
1 27/64 |
7° |
2 |
22 |
Y136-722 |
|
38 |
1 1/2 |
7° |
2 |
22 |
Y138-722 |
|
40 |
1 37/64 |
7° |
2 |
22 |
Y140-722 |
|
42 |
1 21/32 |
7° |
2 |
22 |
Y142-722 |
|
43 |
1 11/16 |
7° |
2 |
22 |
Y143-722 |
|
44 |
1 47/64 |
7° |
2 |
22 |
Y144-722 |
|
46 |
1 13/16 |
7° |
2 |
22 |
Y146-722 |
|
