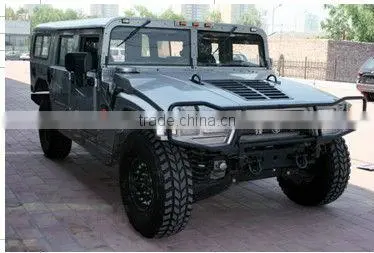

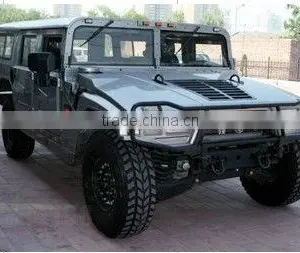

Dongfeng RHD 4*4 Military Truck

Dongfeng RHD 4*4 Military Truck thumbnail-1
Dongfeng RHD 4*4 Military Truck photo-1
US$ 35,000 - 103,400 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Convertible
Fuel:
Diesel
Gear Box:
Manual
Contact Supplier Request Quote Chat Now
Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Convertible
Fuel Diesel
Gear Box Manual
Made In China
Steering Left
Drive AWD
Brand Name Dongfeng
Place of Origin Hubei, China
Model EQ2050B
Year 2015
Month 8

                               Dongfeng RHD 4*4 Military truck



Dongfeng Mid-south Enterprise Co.,Ltd. as the subsidiary company of Dongfeng group, is specialized in exporting Dongfeng commercial vehicles, auto components and maintenance equipment of vehicles. For 45

years development, Dongfeng  commercial vehicle has cooperated with Japan’s Nissan, Renault, ZF gearbox, France Fusite, PAS in France and the Cummins, Fast of the United States and other international auto

giants to  carry out the strategic development of the products.


Here, we enclose our product list as followings for your reference.


Dump Truck Series:
6×4, 8×4 ---Heavy duty tipper Dongfeng T-Lift with loading capacity 20 to 55Ton,
6×4, 4×2--- Medium duty tipper Donfeng Kingrun with loading capacity 15 to 20Ton,
4×2--- Light duty tipper truck Dongfeng Rituo with loading capacity from 3Ton to 14Ton.



Tractor Series: 4×2,6×4 Dongfeng Kinland Tractor Head Special suit for middle and long distance transport.



Cargo Truck Series:
Dolica 4x2 ---light cargo truck with capaity from 2 to 10 ton,
Capation 4x2 ---high end light cargo truck with capacity from 2-10 ton,
Kingrun 4x2 ---Medium duty cargo truck with capacity from 13-20 ton,
Kingland 6x2, 6x4 and 8x4 ---Heavy duty cargo truck with capacity from 20-40 ton.



Special Purpose Vehicle Series: . Concrete Mixer Trucks, Suction Sewage Trucks, Sweeper Trucks, Fuel Tanker, Water Tanker, Refrigerated Trucks, High Platform Truck, Garbage Trucks, Fire Fighting Trucks, Truck Crane and So on.



Auto Spare Parts: Series Auto Parts of Series Vehicle and Machinery, like filter, PTO

<

<

Specification
Drive mode 4×4
Mass G.V.W(Kg) 5800
Payload(Kg) 2000
Towed weight(Kg) 2000
Passenger capacity 4
Dimension L×W×H(mm) 5137×2250×1995
Wheel base(mm) 3390
Track(mm) 1914
Trafficability Side Slope >40%
App./Dep. angel (°) 55/52
Ramp angle(°) 40
Min.ground clearance(mm) 440
Vertical barrier Crossing(mm) 550mm
Min.turning diameter(m) 14
Others Wall crossing(mm) 450
Fording Capablity(mm) 1000
Trench crossing(mm) 750
Max.speed(km/h)(full load) 120Km/h
Main Fuel Tanker (L) 140
Auxilary fuel tanker 50
Climbing Ability 100%
Cruising Range(Km) 900
Altitude (m) <5500
Enviroment humidity <95%
Engine 3.2L Steyr Diesel
Cylinder In-line six
Power(KW) 135
Clutch Hydraulic Operaterd with Pneumatic Assist
Trnasmission Integrated gear box & transfer box
Gear box 5 speed Manual
Transfer box 2 Speed, Inter-axle Differential, lockable.
Axle Portal Axle, Wheel Hub Drives, Differential Locks
Suspension Coil Spring, Telescopic Shock-Absorbers
Steering Power Steering
Wheel & Tyre 335/80R20(365/80R20)w/CTIS
Brake system Pneumatic-Hydraulic. Disk Brake
Parking brake Central-parking Brake
Electric system 24V
Towing Towing Hook, Pneumatic & Electric Suppy
Optional Electric Winch, A/C, PTO, ABS, Exhaust brake
