Specifications
Galvanized Razor Wire/personal factory1.BTO-10,12,18,22,30 CBT-60 CBT-65
2.Hot dipped galvanized,Stainless Steel
Galvanized Razor Wire/personal factory
Specification>>
BTO-10,12,18,22,30 CBT-60 CBT65
Hot dipped galvanized,Stainless Steel(430;304,316,316L)
razor type barbed wire is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.
| specification | thickness(mm) |
wire dia. (mm) |
barb length (mm) |
barb width (mm) |
barb spacing (mm) |
| BTO-10 | 0.4+/-0.05 | 2.5+/-0.1 | 10+/-1 | 13+/-1 | 26+/-1 |
| BTO-12 | 0.5+/-0.05 | 2.5+/0.1 | 12+/-1 | 15+-1 | 26+/-1 |
| BTO-18 | 0.5+/-0.05 | 2.5+/0.1 | 18+/-1 |
15+/-1 | 33+/-1 |
| BTO-22 | 0.5+/-0.05 | 2.5+/0.1 | 22+/-1 | 15+/-1 | 34+/-1 |
| BTO-28 | 0.5+/-0.05 | 2.5+/0.1 | 28 | 15 | 45+/-1 |
| BTO-30 | 0.5+/-0.05 | 2.5+/0.1 | 30 | 18 | 45+/-1 |
| BTO-60 | 2.5+/0.1 | 60+/-2 | 32+/-1 | 100+/-2 | |
| BTO-65 | 2.5+/0.1 | 65+/-2 | 21+/-1 | 100+/-2 |
|
outside diameter (mm) |
No.of loops |
standard length per coil (mm) |
TYPE | notes |
| 400 | 33 | 7-8 | CBT-60.65 | SINGLE COIL |
| 500 | 56 | 12-13 | CBT-60.65 | SINGLE COIL |
| 700 | 56 | 13-14 | CBT-60.65 | SINGLE COIL |
| 960 | 56 | 14-15 | CBT-60.65 | SINGLE COIL |
| 450 | 56 | 8-9 | BTO-12.22.25.30 | CROSS TYPE |
| 500 | 56 | 9-10 | BTO-12.22.25.30 |
CROSS TYPE |
| 600 | 56 | 10-11 | BTO-12.22.25.30 | CROSS TYPE |
| 600 | 56 | 8-10 | BTO-12.22.25.30 | CROSS TYPE |
| 700 | 56 | 10-12 | BTO-12.22.25.30 | CROSS TYPE |
| 800 | 56 | 11-13 | BTO-12.22.25.30 | CROSS TYPE |
| 900 | 56 | 12-14 | BTO-12.22.25.30 | CROSS TYPE |
| 960 | 56 | 13-15 | BTO-12.22.25.30 | CROSS TYPE |
| 980 | 56 | 14-16 | BTO-12.22.25.30 | CROSS TYPE |

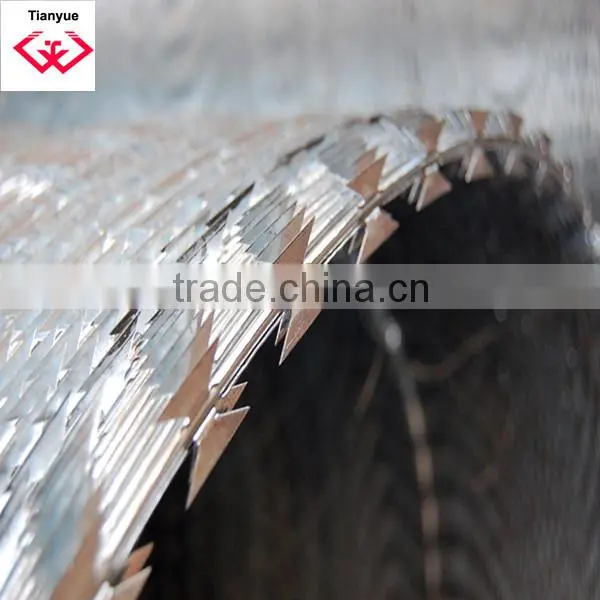

Product Image>>
Factory & Certificates:
About Us:
Shijiazhuang TianYue Honest Co., Ltd., established in 2000, located in the biggest wire mesh production base, AnPing, where is called " the hometown of wire mesh" in china. It lies in Yantong industry area of AnPing.
Our factory has 30 sets of all kind of iron wire drawing machines, 50 sets of welded wire mesh machines and two production lies of wire galvanizing. It is a professional manufacturer of Galvanized Welded Wire Mesh, PVC Welded Wire Mesh, Black Wire Welded Mesh, Stainless Steel Welded Wire Mesh, Shule Sheet Wire Mesh, Terrestrial Heart Wire Mesh, Chain Link Fence and other kinds if wire mesh, which are used for building and other construction application.
Our company has implement the ISO 9001 quality control system and ISO 14001 circumstance control system!
If you are interested in any of our welded mesh product, pls feel free contact Esther Jiao. We'll be more than pleased to satisfy you well!
