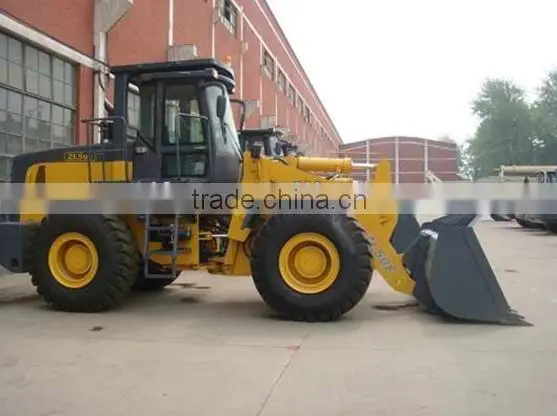

Help CenterZL50F Wheel Loader From Dongfeng With Rated Load 5.0ton From China Foe Sale
Related Products
-
XZ667 Wheel Loader With Rated Load 6.0ton From China for SaleUS$ 74,609 - 80,000MOQ: 2 Sets -
6 Ton XZ667 Wheel Loader From Dongfeng for SaleUS$ 74,609 - 80,000MOQ: 2 Sets
-
45 HP 4WD Farm Tractor,wheel Tractor, Agricultural TractorNegotiableMOQ: 10 Units
-
45 HP 4WD Farm Tractor,wheel Tractor, Farming TractorNegotiableMOQ: 10 Units
-
Agricultural Machinery Equipment Farm Tractor PriceNegotiableMOQ: 10 Units
Specifications
ZL50F wheel loader from Dongfeng:1. Completely new European-style fashion design
2. Best auxiliary part in china
Specification:
Product name: ZL50F Wheel Loader
Standard bucket capacity: 3m3
Rated load: 5.0tT
Operating weight: 16.5T
Engine power: 162KW
1. Completely new European-style fashion design, best auxiliary part in china (Weichai engine, Hangchi double shift change, Meichi drive bridge).
2. Single-stage four-component hydraulic torque converter, planet-type power gear shifting gearbox, capable of adjusting the output to torque automatically and automatic realization from high-speed low-load condition to low-speed high-load condition.
3. Optimized and improved design of work unit, making the unit lifting capacity, digging force and unloading height as well as total cycle time at or better than the national figures for high quality product.
4. The hydraulic system of the working unit adopts soft shaft operation with front location of operation valve. Small pressure loss, easy and reliable operation.
5. Fully hydraulic flow amplification and steering system. Equal-distance riveting frame, uniform front and rear wheel track, eliminating the parasite power loss during steering. Easy and flexible steering and high operation efficiency.
6. Rear frame adopts single-sheet T-type beam, with good structure stability, high reliability, and big internal space, facilitating maintenance.
7. Integral operation platform, streamline design, and humanized operation layout, equipped with new type of electronic instrument capable of quickly monitoring the working condition of the whole unit.
8. Large-vision, fully enclosed driver cab, luxury automobile interior decoration, standard heating and ventilation equipment (air conditioner optional), high-class engineering machine with shock absorption seat.
9. Excellent coverage material, exquisite workmanship, novel and esthetic. The whole machine has advanced economic figures, and good cost performance ratio.
Model |
ZL50F wheel loader |
|
Total weight |
kg |
16500 |
Bucket capacity |
m3 |
3 |
Rated load |
kg |
5000 |
Movable arm lifting time |
s |
≤6.5 |
Three item time |
s |
≤11.5 |
Min. turning radius |
mm |
6770 |
Forward I gear |
km/h |
0-11.5 |
Forward II gear |
km/h |
0-38 |
Reverse |
km/h |
0-16 |
Dumping height |
mm |
3200 |
Dumping reach |
mm |
1180 |
Overall dimension(LxWxH) |
mm |
7840x2950x3450 |
Engine model |
WD10G220E21 |
|
Engine rated power |
Kw |
162 |
Fuel capacity |
L |
280 |
