Dongfeng EQ5160XSGC off-road desert cargo vehicle, off-road transportation from China for sale

Name: Dongfeng EQ5160XSGC off-road desert cargo vehicle, off-road transportation from China for sale
Brand: Dongfeng
Availability: InStock

FOB Price

USD $135,000 - $140,000 / Set

2 Sets(Min.Order)

Supply Ability 50000 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China		Brand Name	Dongfeng
Model Number	EQ5160XSGC

Product Description

Specifications

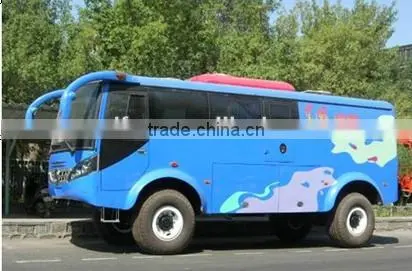

Dongfeng EQ5160XSGC off-road desert bus:
1. Drive model: 4x4
2. Fuel type: Diesel
3. Delivery time: 25-30days

Product name and model	EQ5160XSGC	Drive mode	4×4
Size parameters	Overall dimensions: length×width×height(mm)	7680×2500 (truck bed )2700(tire)×3380
	Container inside dimension: length×width×height(mm)	2835/1500×2375×1650
	Wheel base(mm)	4500
	Tread(Front/Rear)(mm)	2110(Cross-country tire)/2150(Desert tire)
	Front overhang /Rear overhang (mm)	1730/1450
	Approach angle /Departure angle (º)	30/38
	Minimum ground clearance(mm)	430
	Oil tank capacity (L)	350
Performance parameters	Maximum speed (km/h)	76
	Minimum turning diameter(m)	19
	Maximum gradability (%)	40
Mass parameter	Unladen mass (kg)	10200
	Rated load mass (kg)	4890
	Gross mass(kg)	16000
Engine	Model and variety	Straight inter-cooled 6-cylinder water-cooled diesel engine
	Model	ISDe245 30
	Discharge capacity(ml)	6700
	Fuel type	Diesel
	Rated power /speed (kW/r/min)	180/2500
	Maximum torque /speed (N.m/r/min)	900/1200-1700
	Cylinder diameter×travel route(mm×mm)	114×135
	Compression ratio	17.3:1
Clutch	Model and type	Dry single disc clutch
	Control mode	Hydraulic remote control
	Wearing piece diameter (mm)	φ430
Transmission	Model, type	QJ1206)mechanical 6-gear
	Control mode	Soft shaft control
	Forwardgear digit	6
	Speed ratio	9.013 5.241 3.223 2.201 1.504 1.0 R 8.3
Auxiliary box	Speed ratio	1.00 1.75
Frame		Structure type	Riveted structure
		Longitudinal beam cross dimensions (mm)	280x80x8+4
Electrical appliances		Electrical appliance line voltage(V)	24
		Accumulator modelquantity	16-QA-180D 2 pieces
		Generator Voltage/Current	28V,70A
Number of passengers in the cab (number)			13+1/19+1
Chassis		Modeland type	EQ2161QGX60DJ
Number of axles and tire		Number of axles	2
		Wheel felloe model	(Desert tire)14.00-20 ( Cross-country tire)10:00W-20
		Tire specification and tire number	(Desert tire)20-20 (Cross-country tire)14.00R20 4+1
Redirector		Steering type	Power steering
Frontgear		Type	Cast rigid axle housing with hub reduction gear
		Rated load(t)	Grade 7T
Reargear		Type	Cast rigid axle housing with hub reduction gear
		Rated load(t)	Grade 10T
Braking system		Auto brake type	2-circuit air braking
		Auto brake boost type	Pneumatic servo boost
		Brake power adjustment type	Manual
		Brake type	Drum type
		Parking brake type	Spring brake
		Emergency brake type	Spring brake
Overhang frame	Front	Type	Road spring
		Number of road springs	11
	Rear	Type	Road spring
		Number of road springs	14
