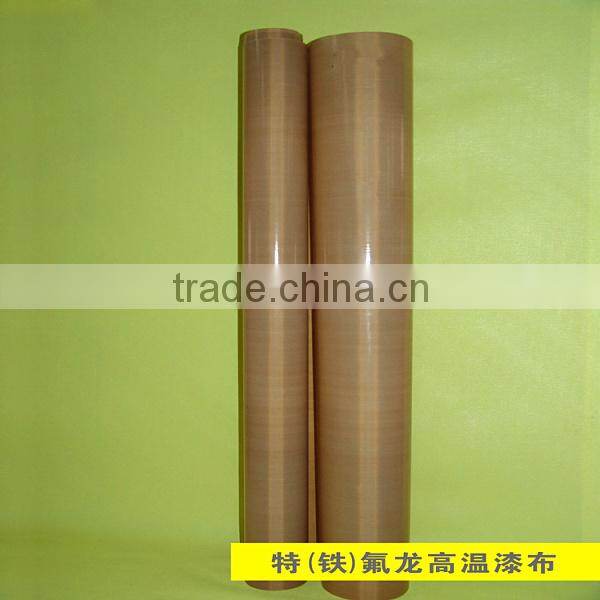

PTFE with fiberglass cloth 0.13mm

Specifications

PTFE with fiberglass cloth 0.13mm
1).It can be used under the temperature of -140 to 360 C
2.Hardly to adhere any material



PTFE with fiberglass cloth 0.13mm

PTFE with fiberglass cloth 0.13mm  is made up of high-capability fiberglass which has steeped into PTFE. It is a new product with high capability and multiform function of complex material.





Main capability and characteristics of PTFE with fiberglass cloth 0.13mm :
1).It can be used under the temperature of -140°C to 360 °C, which has the capability of weather resistant and age resistant. Under practical situation of high temperature of 250 °C for 200 days, not only the intensity will not decrease, the weight will not reduce; if put it under the high temperature of 350 °C for 120 hours, the weight only decreased by about 0.6%; under the situation of -180 °C, it will not chap and keep the original pliability;
2).Hardly to adhere any material; it is easy to wash away the blot or other dust such as resin, coating material, etc.
3).Chemical corrosion resistant, it could resist acid, alkali, aqua fortis and various kinds of organic liquid corrosion;
4).Low ratio of friction (0.05-0.1), it is the best choice of non-oil lubricator;
5).Light piercing ratio is 6-13%;
6).High capability of insulation (small permittivity: 2.6, the tangent is lower than 0.0025), ultraviolet resistance, static proofing;
7).Good dimension stability (the ratio of extending is lower than 0.5%), High intensity, good mechanical capability;
8).Capability of medicament resistant and non-poison, almost to resisting all kinds of medicament;
9).Fireproofing and flame resisting.



Applied range of PTFE with fiberglass cloth 0.13mm

1. Internal gasket, cushion, covering fabric, conveyer belt which resisting viscidity; base on the different thickness, it could be used as conveyer belt, conglutinating belt, sealing belt of various kinds of drying machine;
2. welding of plastics, welding cloth for solder; plastic patch, membrane, belt of heat enveloping patch;
3. High insulation of electric: insulating belt of electric, septa, cushion, gasket. High frequency plank coated with copper;
4. heat resisting envelope, terrace base-material, enswathing of heat insulation;
5. micro wave gasket, oven gasket, food drying;
6. glue belt, shifting stamp tablecloth, blanket backing-glue belt, rubber vulcanize belt, etc;
7. fabric of heat-variable glue;
8. construction membranous material: sorts of ceiling of gymkhana, station ceiling, parasol, and sight ceiling; 9. binding of all sorts of petroleum and chemical pipeline to resist eroding, environmental sulfur separating of exhaust gas of electric factory;
10. bland compensator, rubbing material, slice of grinding wheel;
11. it could be made into static resisting fabric.

Main sorts and specifications of  PTFE with fiberglass cloth 0.13mm
Thickness: 0.06-1.0mm;
Structure of basal fabric: plain, diagonal, satin, etc.
Width: 1000-4200mm;
Color: brown, white, black, black-argent;
Way of coating: double-faced coating, single-faced coating, ventilate coating, static resistant coating.
