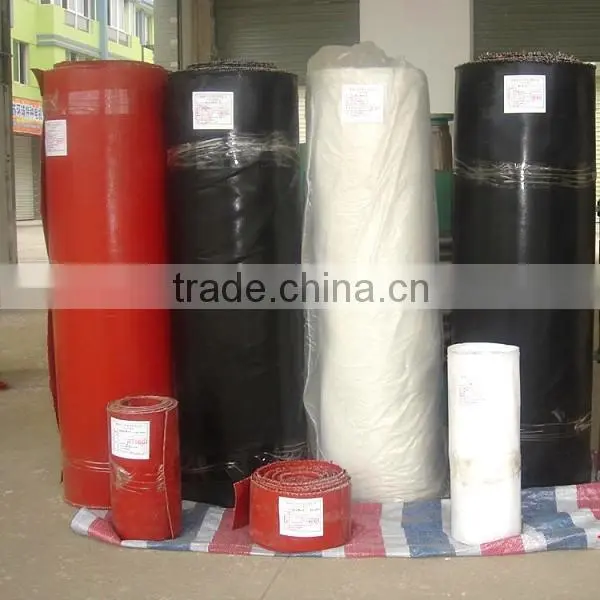

fda approved high temperature resistance double-sided silicone coated glass fabric at different thick with high voltage
- 5000 Square Meter / Square Meters per Month
- Shanghai Ningbo Qingdao Tianjin Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- EPDM Installation Waterproof Gasket EPQ-18-5.2
- Heavy Duty Anchor Zinc Plated Anchor
- Original 90*115*12mm CR35420 oil seal CR Radial shaft seals for general industrial applications CR 35420 SEAL
- High Quality 29952 Radial Shaft Seal 76.2*101.68*11.13MM 29952 Oil Seal
- NQK O-Ring Seal Nitrile Rubber 32*36*2 37*43*3 49*55*3 O-Rings
- China Brand Nitrile Rubber O-Ring Seal 4.42*9.66*2.62 NQK O-Ring
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Fleet | Model Number: | S020-S320 |
Product Description
Specifications
silicone coated glass fabric1.good electric
2.temperature resistance
3.resistance to oxygen and sunlight

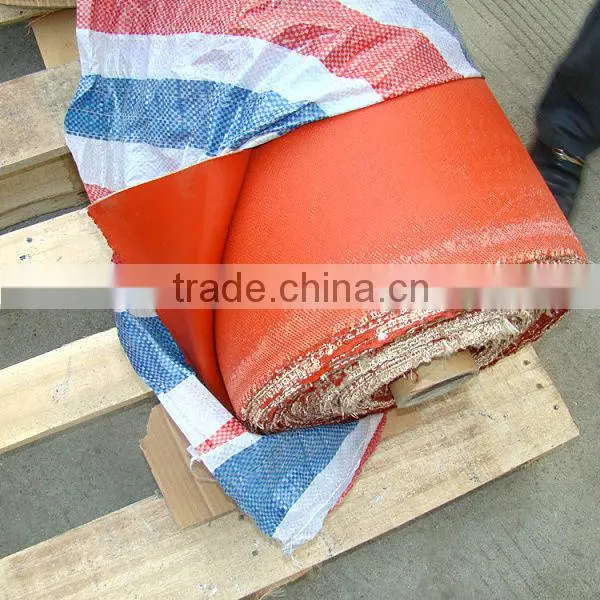

silicone coated glass fabric
silicone coated glass fabric are made of fine fiberglass with excellent capacity of high temperature and corrosion resistance, coated and rolled with silicone rubber, which is a brand new product with good performance and multiple applications.
Features of silicone coated glass fabric:
1,temperature resistance, it can continuously work under -70°C to 280°C.
2,weatherability: resistance to ozone, oxygen, sunlight and aging, long using life up to 10 years.
3,good electric insulator, dielectric constant 3~3.2, break down voltage between 20~50KV/mm.
Applications of silicone coated glass fabric:
1,Electric insulation: it features high grade of electric insulation and bear a load of high voltage. It fits for making products like insulation cloth and sleeves etc.
2,Non-metallic compensator: used as pipeline flexible coupling, non-metallic compensator helps to avoid damage caused by heat expansion and cold contraction.
3,Anti-corrosion sector: It is good to be used as inner and outer anti-corrosion layer featuring excellent corrosion resistance, temperature resistance and high strength.
4,Others: Apart from above application, it can also be used as sealing material, temperature resistant and anti-corrosion conveyer belt and packaging material.
Technical data sheet of silicone coated glass fabric:
Item | Thickness (mm) | Breaking strength (n/50mm) | Bursting strength mpa | Combustible | Width (mm) |
S013 | 0.13 | 1500/1200 | 2.0 | ≤25% | 0--1500 |
S025 | 0.25 | 1800/1500 | 2.1 | ≤25% | 0—1500 |
S040 | 0.40 | 2000/1600 | 2.2 | ≤25% | 0—1500 |
S050 | 0.50 | 2200/1800 | 2.3 | ≤25% | 0—2000 |
S060 | 0.60 | 2400/2200 | 2.4 | ≤25% | 0—3000 |
S070 | 0.70 | 2500/2300 | 2.4 | ≤25% | 0—3000 |
S080 | 0.80 | 2600/2400 | 2.5 | ≤25% | 0—3000 |
S090 | 0.90 | 2800/2600 | 2.5 | ≤25% | 0—3000 |
S100 | 1.00 | 3000/2800 | 2.6 | ≤25% | 0—3000 |
S120 | 1.20 | 3400/3000 | 2.5 | ≤25% | 0—3000 |
S150 | 1.50 | 3700/3300 | 2.3 | ≤25% | 0—3000 |
S200 | 2.00 | 4200/3800 | 2.2 | ≤25% | 0—3000 |
As a manufacturer, strong R&D capacity,high quality, reasonable price and timely service are our advantages.
