Help CenterPacking Machine With Multi-heads Combination Weigher for Apple Chips
Related Products
1. Automatic Bagging Machine:
Features
- Low cost high gain, high speed and efficiency.
- Famous brand PLC control system, large touch screen, convenient to operate
- Film drawing down system controlled by servo motor minimize the loss with complete automatic warn protection function
- It can completefeeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.
Specification:
- Bag size: Length: 80-300mm; Width: 80-200mm
- The maximum width of packing film:420 mm
- Thickness of film: 0.04-0.09mm
- Bag making mode:gusseted bag/pillow bag
- Air consumption:0.8Mps 0.5m3/min
- Power/voltage: 1N+PE/50HZ/AC220V/2.2KW
- Dimension (LxWXH): 1320×920×1392mm
- Weight: 450kg
Ribbon Printing:
- Printing Area: Single line 4×35,15 characters
- Double lines 10×35,30 characters
- Speed: 120 times/min. max

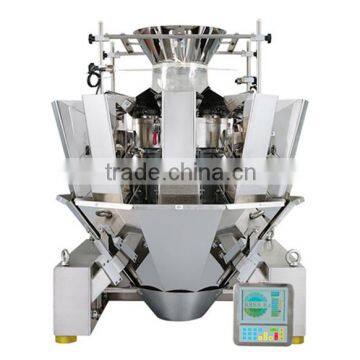

2. 10 HEADS WEIGHER
1. Application
It is suitable for weighing of granule, slice, roll or irregular shape products such as candy, sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut, pet food, puffed food, small metal parts and plastic parts, etc.
2. Features
* Program recovery function can reduce operation failure.
* All the hoppers can be opened make cleaning easy and quick.
* The weight hopper can be preset to open in order (staggered) to avoid lockage with puffy or problem products.
* IP65 waterproof and dustproof design. It's easy to clean and maintain.
* The function of measurement by counting pieces or components t satisfy your various requirements.
| Model | GH-10 | GH-14 |
| Heads No. | 10 heads | 14 heads |
| Weighing range | 10-1000g | 10-2000g |
| Precision | 0.1-1.5g | 0.1-1.5g |
| Weighing speed | Max.70 bags/min | Max.120 bags/min |
| Hopper volume | 1000-2500 ml | 1000-2500ml |
| Preset parameter | 99 sets | 99sets |
| Net/Gross weight | 300/370 kg | 420/495 kg |
| Dimension | 1400*1130*1120 | 1680*1210*1140 |
| Packaging Details: | Packaging Material:Plastic Sealing:pillow sealing Application:Machinery & Hardware |
|---|---|
| Delivery Detail: | 35 working days |
after service:
1. We will testify the machine before shipment.
2.The system have 18 months for guarantee, we will replacing the damaged accessories and bear the accessories and postages costs within the expiry date, .
3.We will provide technical support lifelong and provide accessories persistently.
Guangzhou All-blom Packing Machinery Co.,Ltd, Established in 2001,is a professional manufacturer of packing machine in Guangzhou ,China.
We are well experienced in OEM projects and sell products with our own brand "GH All-Bloom" to all over the word.We are committed to providing guality products ,excellent seavices,competitive prices,quick response and prompt deliveres.
