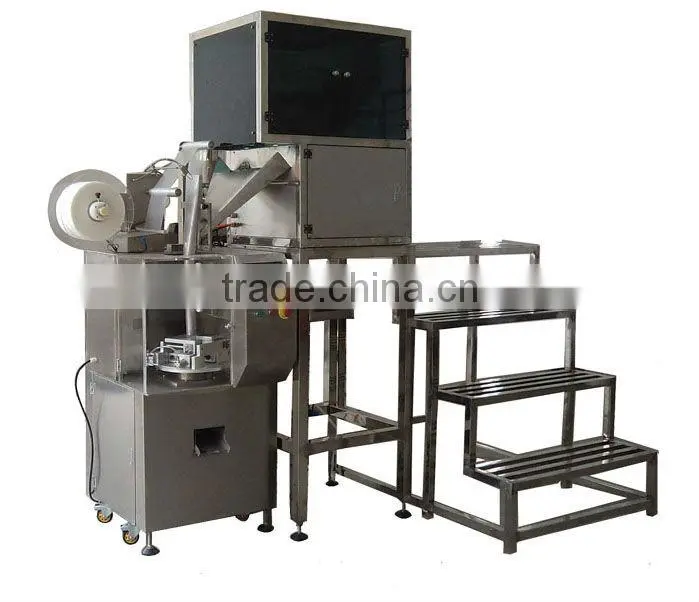

Pyramid tea bag auto packing machine
1.Application:
This machine is widely-use for granule product, such as: black tea, green tea, white tea, yellow tea, black tea, oolong tea, scented tea, raise liver, nourishing the stomach, tea, health tea, etc. And some daily food like condiments small granule, powder material which can be measured by volumetric cups.
2.Feature:
(1)To seal and cut by ultrasonic wave,which lets the bag have a good look.
(2)It can make pyramid type tea bag,and can satisfy customer’need to make the square bag.
(3)Sealing is strong and can realized the joint without edge,which is the popular tea bag in current market.(4)You can use the Nylon filter film with string and label, and also can use the clean Nylon filter film and non-woven cloth.
(5)The measuring and filling method can change according to different items ,such as tea scale, volumetric cups, bucket chain manual filling part,and vibration plate.etc.
(6)Machine is made with 304 stainless steel,not only be environmental but also firm and durable.
(7)It has been improved in ultrasonic wave,measuring,sealing and so on,not only promote the function of machine,but also reduce much noise in a way.
3.Specification:
S/C |
Items |
Specification |
1 |
Model |
GH140K-4H |
2 |
Capacity |
25--50 bags/min ( According to the packed item) |
3 |
Measuring way |
Mini 4 heads linear weigher |
4 |
Sealing type |
Using two sets (vertical and horizontal ) of high frequency to make three edge sealing and cutting |
5 |
Bag type |
Pyramid bag |
6 |
Film material |
Standard mesh cloth material which can be sealed by high frequency |
7 |
Film width |
140mm |
8 |
Measuring range |
Each adge max.60mm , can design as per request. |
9 |
Roll diameter |
≤Φ350mm |
10 |
Inner diameter |
Φ76mm |
11 |
Power |
0.5 Kw(220V) |
12 |
Air consumption |
≥0.6Mpa |
13 |
Dimension |
L 900×W 800×H 1800(mm) |
14 |
Weight |
350kg |
