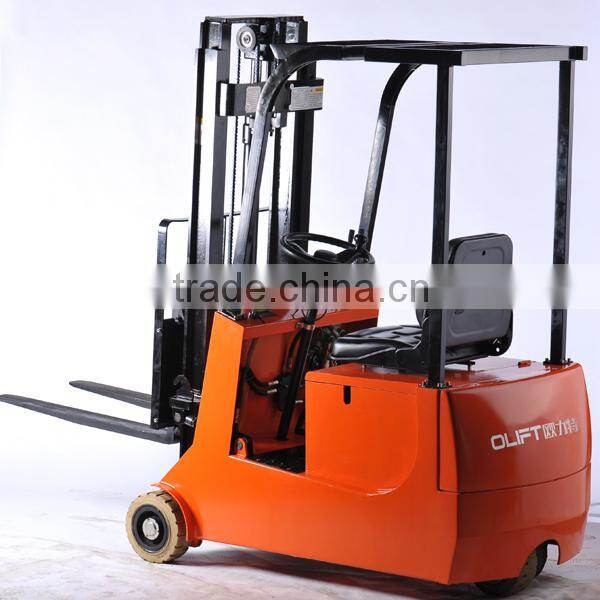

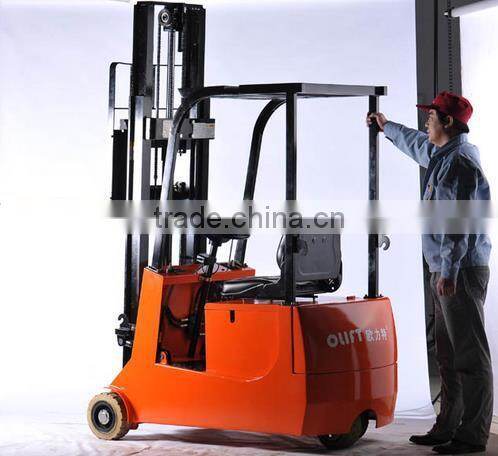

Help Center1 Ton Olift Electric Three Wheels Forklift
Related Products
-
1 Ton Olift Electric Mini ForkliftUS$ 8,000 - 18,000MOQ: 1 Set -
Olift Mini Electric Forklift PriceUS$ 8,000 - 18,000MOQ: 1 Set
-
2.0tons Narrow Aisle Three Wheels Full Electric Forklift TruckUS$ 1,000 - 3,000MOQ: 1 Set
-
FN Series Electric Forklift TruckNegotiableMOQ: 1 Set
-
Electrick Forklift Truck(EN Series)-CE CertifictateUS$ 1,300 - 2,200MOQ: 1 Set
Specifications
Three Wheels Forklift1.Curtis electrical control
2.Winner hydraulic pump station
3.High capacity battery
4.CE,SGS,ISO9001
Three Wheels Forklift
Packing Detail: International Standard Packing.
Delivery Detail: about 15 days after receiving the deposit.
Three Wheels Forklift
Characteristic:
1. Our electric counterbalanced forklift is of small size and compact structure, hich greatly improve its operational flexibility.
2. Curtis electrical control system from America for good reliability.
3. High capacity traction battery(300AH)to ensure sufficient electricity for a day’s work.
4. High quality solid tire provides good buffer action prolong the life time of battery.
5. Equipped with intelligent charger to effectively prolong the life time of battery.
6. Applicable to operations in restricted spaces.
7. Forged adjustable fork is suitable for pallets of various sizes.
FN- Three Wheels Forklift Specification:
| Model No. | FN0525 | FN07525 | FN1025 | ||
| Capacity | kg | 500 | 750 | 1000 | |
| Lifting height | mm | 2500 | 2500 | 2500 | |
| Min. height of fork | mm | 40 | 40 | 40 | |
| Fork width outside | mm | 160-710 | 160-710 | 160-710 | |
| Single fork width | mm | 80 | 80 | 80 | |
| Fork length | mm | 650/800 | 650/800 | 650/800 | |
| Load center | mm | 400 | 400 | 400 | |
| Min.turning radius | mm | 1500 | 1500 | 1500 | |
| Max. speed(laden/unladen) | km/h | 4.2/6 | 4.2/6 | 4.2/6 | |
| Lifting speed(laden/unladen) | mm/s | 50/98 | 50/98 | 50/98 | |
| Dropping speed(laden/unladen) | mm/s | 125/106 | 125/106 | 125/106 | |
| Max. travel grade(laden/unladen) | % | 5/8 | 5/8 | 5/8 | |
| Lifting motor | kw/v | 1.0-2.2/24 | 1.0-2.2/24 | 1.0-2.2/24 | |
| Aneroid battery | V/Ah | 24/160-210 | 24/160-210 | 24/160-210 | |
| Charger | A/V | 15-25/24 | 15-25/24 | 15-25/24 | |
| Overall size(L*W*H) | mm | 2290*835*1800 | 2540*900*1800 | 2620*900*1800 | |
| Fork angle | ° | 1/7 | 1/7 | 1/7 | |
| Net weight(without battery ) | kg | 800 | 900 | 950 | |
- Olift Equipment Co.,Ltd. provides wide selection of products such as forklift trucks, pallet trucks and electric stackers, scissor lifts, moving tools, platform lifting and more.
- In addition, it has in-house technical capabilities to design and manufacture the equipment. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance.
- The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
For more detail information, please visit our website: .
Our Service:
- Our company has passed ISO9001 and our products has passed CE and SGS
- We supply spare parts free for one year,beyond the warranty period appeared appropriate product failure we will charge some fees, but you are assured of our charges must be very reasonable, because our aim is to ensure the normal use of my products, we sell the vehicle rather than to earn take the cost of spare parts.
- We will in the first time to serve you, supply the technical supporting all the time!
- Application Area: Olift Equipment Co.,Ltd. wide selection of products forklift trucks, pallet trucks stackers, scissor lifts, platform lifting and more. workforce engages in research to develop easy-to-use products that provide.
Why Choose Us??
1.We have passed IS9001.Our product have passed CE,SGS. And well-known around the world,popular in Europe, Austrilia,America, Cannada and many other countries.
2. we have been in this line for about 10 years!!
3. We are Manufacturer, providing the Competitive Price, Quick Delivery and Best Service.
MIke Ma
(Sales Representative)
Fax: 0086-532-68870279
Website:
Any question and interest, please do not hesitate to contact us.
We will offer you a competitive price!!
