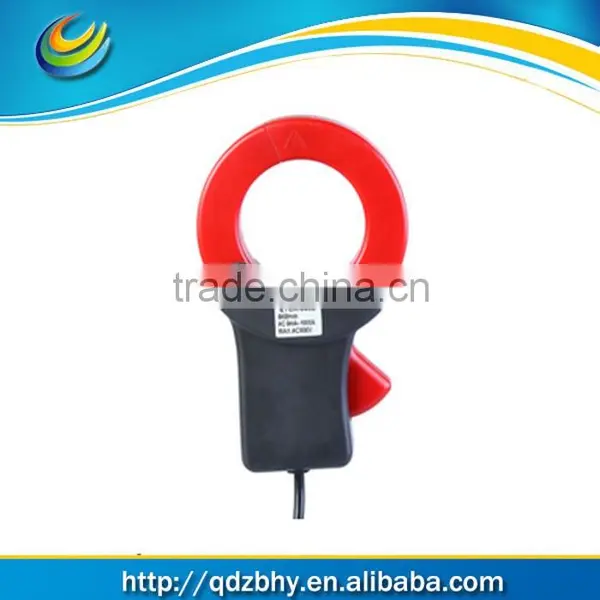

ETCR 068B High Accuracy Clamp AC Leakage Sensor

ETCR 068B High Accuracy Clamp AC Leakage Sensor thumbnail-1
ETCR 068B High Accuracy Clamp AC Leakage Sensor photo-1
US$ 219.73 - 219.73 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ETCR
Model Number:
ETCR 068B
Contact Supplier Request Quote Chat Now
Qingdao Zhibohongyu Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name ETCR
Model Number ETCR 068B



Product Description

 ETCR 068B High Accuracy Clamp AC Leakage Sensor

Introduction

ETCR068B High Accuracy Clamp AC Leakage Sensor adopt the double magnetic shielding techniques, it is small in size, high accuracy, stable and high anti-interference. Widely use in electricity, communication, meteorology, mining enterprises to measure the AC leakage current, current, power and electric energy which are high accuracy, small phase error. It can be connected with high precision digital multi-meter or data logging. It is convenient to use.
ETCR068B High Accuracy Clamp AC Leakage Sensor adopt the latest CT technology, it can almost shield the influence from external magnetic field and ensure the high precision, high stability and high reliability of perennial uninterrupted measurement.
ETCR068B can be used to test leakage current, especially the high order harmonic current, phase test.
Technical Specifications
Function
 Measurement of AC current, high order harmonic current, phase, power energy, power, power factor
Test mode
 Clamp CT
Clamp Size
 68mm
Range
 0.00mA~1000A
Resolution
 1mA
Accuracy
 ±2.0%FS(50Hz/60Hz; 23±2 degree, below 70%RH, keep the wire be in the center of clamp)
Coils Turn
 Standard 1000:1(customize is allowed)
Phase Error
 ≤3°(AC50Hz/60Hz; 23±2 degree)
Reference Load RL:0~100mA≤3kΩ; 0~10A≤30Ω; 0~1000A≤0.3Ω
Shield
 Clamp without shield layer
Output Mode
 Current induction output
Output Interface 2thread or chose the standard probe of multi-meter
Output Wire Length
 2m
Electric Field Interference
 About 10mA when the external electric field 100A,100mm nearby, without shield layer.
Measured Wire Position
 Approximately in the geometric center of the clamp
Current Frequency
 45Hz~60Hz(Current to be measured)
Frequency
 10Hz~100kHz
Voltage of circuit
 Circuit with the voltage below AC 600V
Dimension
 185mm*115mm*43mm
Weight
 530g
Working Environment
 -20~50 degree;80%rh below
Storage Environment
 -10~60 degree;70%rh below
Insulation Strength
 AC 3700V/rms. (between core and shell)
Safety Rules
 IEC1010-1,IEC1010-2-032,Pollution Degree: 2,CAT III(600V)
Accessory
 Sensor:1pc
