----- Power Adapter Charger for Verifone Vx675 ------
1.Application:
- For pos terminal machine verifone Vx675
- AC input voltage ……100-240VAC
- Output ………5V 1A
- Input frequency ………47-63Hz
- AC inrush current(max.) …….20A/230V
- Line regulation (full load).......±0.5%
- Peak- to -peak ripple …….<500MV
- Working temperature………….0-35°C@100%,50°C@70% load
- Setup rise hold up time………100ms,50ms,20ms@240VAC input
- Strong made totally compatible part
- Withstand voltage………I/P-O/P 3Kvac,1 minute
- MeanTime Between Failures ……… 100,000 hours at 25°C full load
- Efficiency ……… 85% typical
- DC tips ……… 5.5*2.5mm or 5.5x2.1mm or you customize
- AC Plug ……… us,uk,au,Eu plug for the 5V 1A ac dc power adapter are available
3.Specification:
Model |
HL-W05-010 |
DC output voltage |
5V |
Output voltage error |
±1 |
Rated output current |
1A |
Output current rage |
0-1A |
Wave and noise |
240mVp-p |
Inlet stability |
±0.5% |
Load stability |
±0.5% |
DC output power |
12W |
Efficiency |
83% |
Adjustable range for DC voltage |
4.4V-5.6V |
AC input voltage range |
85~132VAC/180-264VAC selected by switch, 47-63Hz254-370VDC |
Input current |
6.5A/115V 4A/230V |
AC Inrush current |
25A/115V 50A/230V |
Leakage current |
<3.5mA/240VAC |
Overload protection |
105%~150% Tpye:pulsing hiccup shutdown Reset: auto recovery |
Over-voltage protection |
+-5% |
High-temperature protection |
ERH1>=70°C Fan on,<=65°CFan off,>=80°C,Cut off output(24~48V) |
Temperature coefficient |
±0.03%/(0~50%) |
Setup rise hold up time |
200ms,100ms,20ms |
Vibration |
10~500Hz,2G 10min,/1cycle,Period for 60min,each axes |
Withstand voltage |
Input and output internal1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC |
Isolation resistance |
Input and output internal: Input and enclosure, Output and enclosure500VDC/100MΩ |
Working temperature and humidity |
-10~+60Refer to output derating curve,20%~90%RH |
Store temperature and humidity |
-20~+85,10%~95%RH |
4.Advantage:
- 1:high reliability,long life
- 2:universal input voltage can use all over the world
- 3:electrical specification:short-circuits,over-current,over-voltage, over-temperature protection
- 4:price:specific discussion
- 5:material :can be customized as per customer requirement any specifications for your material products
- 6:suitable proaducts:Pos terminal machine ,DVD/monitor/digital photo frame and other multimedia equipment
5.Protection:
- * Short-circuit protection
- * low energy consumption
- * Power Save
- * Overload Protection
- * Over Temperature Protection
- * Over voltage protection
6. Environmental Characteristics :
Operating Temperature |
55 °C at Full Load and 70°C at 60% load. |
Maximum Temperature Rise |
50°C. |
Cooling |
By free air convection. |
Relative Humidity |
95% NC. |
7. Different AC Plug Standard available for the pos terminal Power adapter

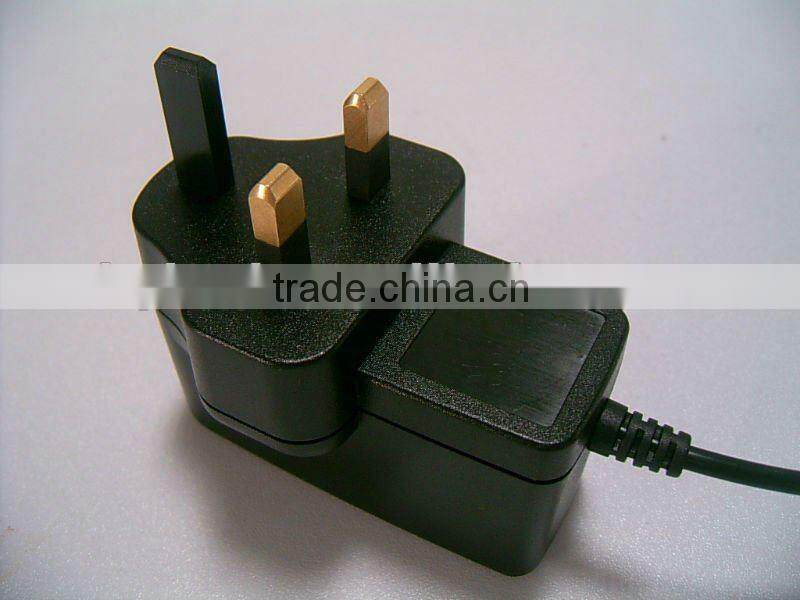

- UK plug power adapter:

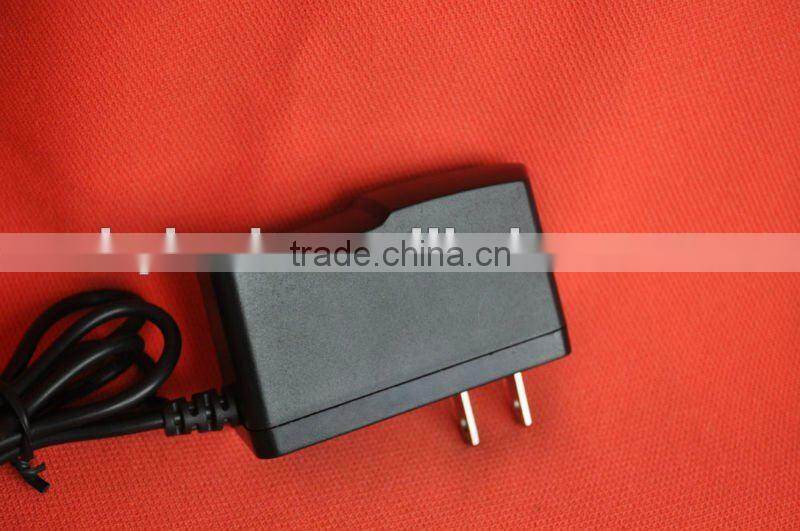

- US Plug power adapter

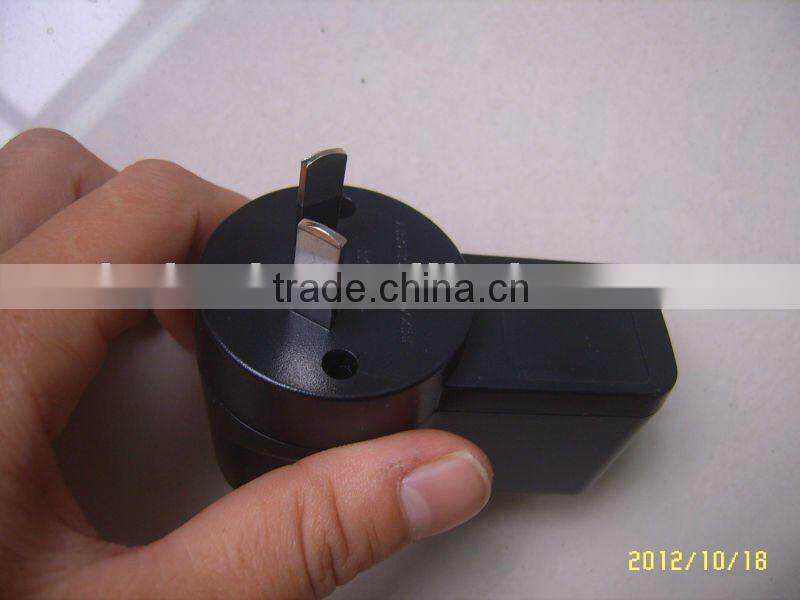

- Australia plug power adapter
- EU plug power adapter
8.Strict test procedure for every single piece of power adapter :
- Burning in test on 80% load for full 3 hours
- Control the defective power adapter to the lowest
9.Different Packages are available for power adapter
