5.0v 2.0a Ac/dc Adapter

5.0v 2.0a Ac/dc Adapter thumbnail-1
5.0v 2.0a Ac/dc Adapter photo-1
US$ 1 - 10 MOQ: 100 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYLOOK
Model Number:
HL-W050-020
Contact Supplier Request Quote Chat Now
Shenzhen Hylook Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HYLOOK
Model Number HL-W050-020
Output Type DC
Connection Plug In

Specifications

5.0v 2.0a ac/dc adapter
1.Input:110V-240V
2.Output:5.0V 2.0A
3.Use for:Tablet pc
4.Protection:OVP,SCP,OLP

-------------------------- 5.0v 2.0a ac/dc adapter   -------





1.Application:

  •  For the Wireless Router, ADSL Cats, HUB, Switches
  • Audio/Video,Tablet PC,digital photo frame    5.0v 2.0a ac/dc adapter

2.Electrical Characteristics:



  • AC input voltage ……100-240VAC
  • Output ………5V 2A
  • Input frequency ………47-63Hz
  • AC inrush current(max.) …….20A/230V
  • Line regulation (full load).......±0.5%
  • Peak- to -peak ripple …….<500MV
  • Working temperature………….0-35°C@100%,50°C@70% load
  • Setup rise hold up time………100ms,50ms,20ms@240VAC input
  • Strong made totally compatible part
  • Withstand voltage………I/P-O/P 3Kvac,1 minute

3.Specification:



Model

HL-W05-020

DC output voltage

5V

Output voltage error

±1

Rated output current

2A

Output current rage

0-1A

Wave and noise

240mVp-p

Inlet stability

±0.5%

Load stability

±0.5%

DC output power

12W

Efficiency

83%

Adjustable range for DC voltage

11.4V-12.6V

AC input voltage range

  85~132VAC/180-264VAC selected by switch, 47-63Hz254-370VDC

Input current

  6.5A/115V 4A/230V

AC Inrush current

  25A/115V 50A/230V

Leakage current

  <3.5mA/240VAC

Overload protection

  105%~150% Tpye:pulsing hiccup shutdown Reset: auto recovery

Over-voltage protection

  +-5%

High-temperature protection

  ERH1>=70°C Fan on,<=65°CFan off,>=80°C,Cut off output(24~48V)

Temperature coefficient

  ±0.03%/(0~50%)

Setup rise hold up time

  200ms,100ms,20ms

Vibration

 10~500Hz,2G 10min,/1cycle,Period for 60min,each axes

Withstand voltage

  Input and output internal1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC

Isolation resistance

  Input and output internal: Input and enclosure, Output and enclosure500VDC/100MΩ

Working temperature and humidity

  -10~+60Refer to output derating curve,20%~90%RH

Store temperature and humidity

  -20~+85,10%~95%RH



4.Key Features:



  • · 100% Brand New *** High Quality
  • · Warranty For 1 Year ***
  • · Input: 100-240V 50-60Hz (works worldwide)
  • · Output: 5V 2A
  • · Lenght of Output wire :1.2M



 5.Advantage:



  • 1:high reliability,long life
  • 2:universal input voltage  can use all over the world
  • 3:electrical specification:short-circuits,over-current,over-voltage, over-temperature protection
  • 4:price:specific discussion
  • 5:material :can be customized as per customer requirement any specifications for your material products
  • 6:suitable proaducts:DVD/monitor/digital photo frame and other multimedia  equipment

6.Special Features:

  •  * Short-circuit protection
  •  * low energy consumption
  •  * Power Save
  •  * Overload Protection
  •  * Over Temperature Protection

7.Mechanical:



  • · us,uk,au,Eu plug for the 5V/9V/12V power adapter are available
  • · 90-264vac wide range input for world use
  • · DC tips:5.5*2.5mm or 5.5x2.1mm or you customize
  • · Lenght of DC wire and AC wire:Standard 1.2M or you customize



8.Technical Data



  • · Input Voltage  90-264V ac 47-63Hz
  • · Output Current  2A (optional)
  • · Load Regulation  +/- 5%
  • · Efficiency  85% typical
  • · MeanTime Between Failures  100,000 hours at 25°C full load
  • · Dimensions (LxWxH) 78x56x30mm





9. Photos for 5V 2A Power adapter



  • UK plug power adapter:

 5.0v 2.0a ac/dc adapter5.0v 2.0a ac/dc adapter

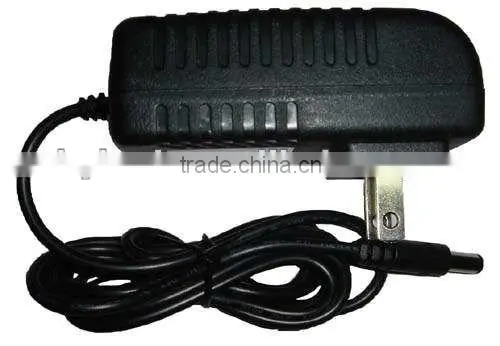

  • US Plug power adapter   5.0v 2.0a ac/dc adapter

5.0v 2.0a ac/dc adapter

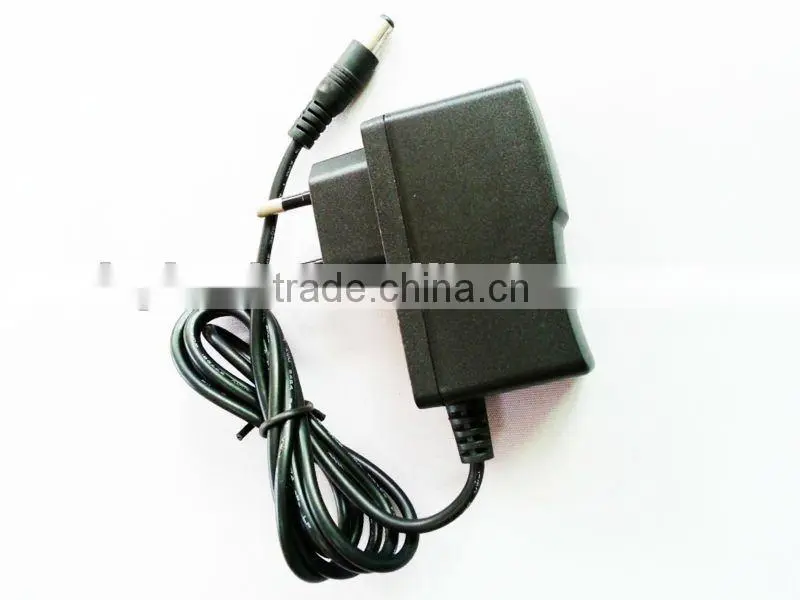

  • EU plug power adapter

5.0v 2.0a ac/dc adapter5.0v 2.0a ac/dc adapter



  •  Australia plug power adapter

   5.0v 2.0a ac/dc adapter5.0v 2.0a ac/dc adapter







10.Strict test procedure for every single piece of  power adapter :

  • Burning in test on 80% load for full 3 hours
  • Control the defective power adapter to the lowest

5.0v 2.0a ac/dc adapter








11.Different Packages are available for power adapter



5.0v 2.0a ac/dc adapter
