Specifications

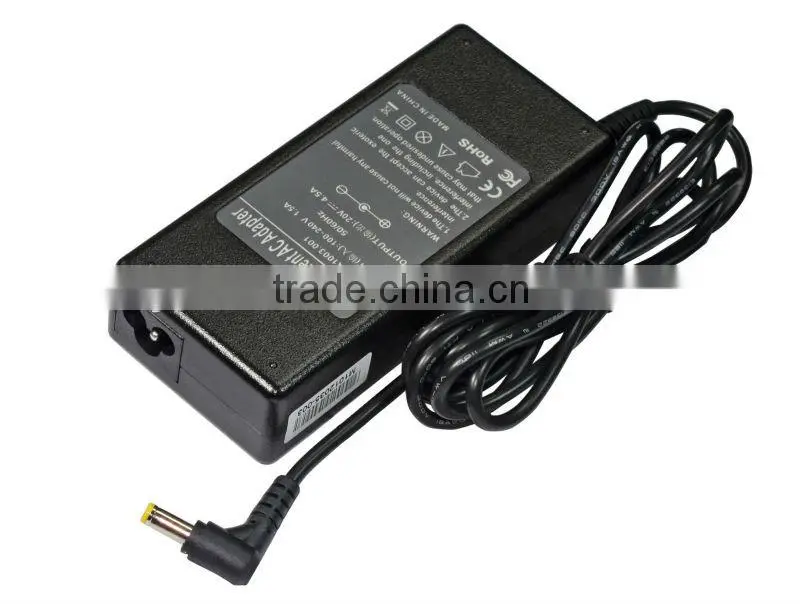

1.AC Adapter 20V 4.5A for LITEON2.input:AC100-240V -50-60Hz
3.output:DC 20V 4.5A, 90W
tection:OCP,OVP,SCP
AC Adapter 20V 3.5A for LITEON
1.Product details
- AC Input: AC, 100-240V, 50-60HZ
- Condition: 100% brand new and OEM AC adaper
- DC Output: 20V 4.5A 90W
- Connector:5.5*2.5mm
- Usage: Laptop Adapter
- Warranty: 1 Year
2.charateristics
Input characteristics
1. Input voltage
Rated Voltage: 100~240Vac
Variation Range: 80V~280Vac
2. Input Frequency
Rated Frequency: 50/60HZ
Variation Frequency: 47~63Hz
3. Input current
0.5Amax. at any input voltage and rated, DC output rated load.
4. Inrush Current
30Amax. @ 264Vac input
5. Efficiency:
80% min at 100Vac input and output rated .Load.
80% min at 240Vac input and output rated .Load
Output characteristics
1. Turn on delay time:
3S max. @ 100 Vac to 240 Vac input & Full load
2. Rise time
20mS max. @ Rated load
3. Hold up time:
5mS min. @ Full load &230Vac/50Hz input turn off at worst case
protection requirement:
1. Short circuit protection:
The power supply will be auto recovered when short circuit faults remove.
2. Over current Protection:
The power supply will be auto recovered when over current faults remove
3. Over Voltage Protection:
The power supply will auto recovered when faults remove 120%~150%.
Environmental requirement:
Operating Temperature: 0~40°C ,full load , normal operation.
Storage Temperature: -20~80°C with package
Relative Humidity: 10%(0°C) ~90%(40°C) RH
3.Photos:
