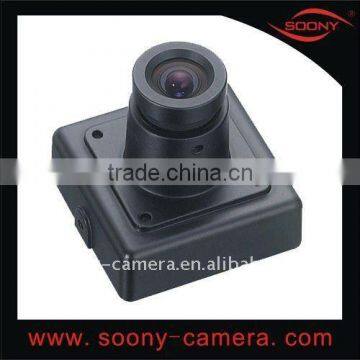

600TVL High Resolution Mini Camera/Hidden Camera With OSD

Name: 600TVL High Resolution Mini Camera/Hidden Camera With OSD
Brand: SOONY or OEM
SKU: 100471997
Availability: InStock

US$ 39 - 42 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SOONY or OEM

Model Number:

SY-2346C

Shenzhen Isec Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SOONY or OEM

Model Number SY-2346C

Style Mini Camera

Sensor CCD

Technology Pinhole

Special Features Other

Type Other, Video Camera

Specifications

Mini Camera
1/3"Sony Super HAD CCD
600TVL with OSD
1.8/2.1/2.8/6/10/25mm lens optional
2 years warranty, CE/FCC/RoHS

600TVL High Resolution Mini Camera/Hidden Camera with OSD

Main Features:

1/3"Sony Super HAD CCD
600TVL high resolution
1.8/2.1/2.8/6/10/25mm lens are optional

B/W and COLOR mode can be adusted, DWDR, built with OSD cable

Why Choose us?

1. Soony is a professional cctv camera manufacturer for more than 7 years.

2. warranty: 2 years free of repair if has malfunctional under normal usage.

3. Your reliable business partner with low price and high quality.

Specifications:

Mini Color High Resolution Camera
Model No.	SY-2346C
Image Pick-up Device	1/3" Sony CCD
Horizontal Resolution	600TV Lines
OSD	Available
Number of Pixels	NTSC:510(H)x492(V); PAL:500(H)x582(V)
Scanning System	NTSC:525Lines, 60 Field/sec,
Scanning System	PAL:625Lines, 50 Field/sec
Sync System	Internal Synchronization
Gamma Characteristic	0.45
Lens	3.6mm board lens,1.8/2.1/2.8/6/10/25mm lens are optional
S/N Ratio	more than 48dB(AGC Off)
Electronic Shutter Time	On: NTSC: 1/60~1/100,000Sec, PAL: 1/50~1/100,000Sec;
Electronic Shutter Time	Off: NTSC: 1/60Sec, PAL: 1/50Sec
Video Output	1.0Vp-p 75ohm
Gain Control(AGC)	Auto
Operation Temperature	-10C~+50C RH95%MAX
Storage Temperature	-20C~+60C RH95%MAX
Power Supply	DC12V+_10%,120mA
Dimension	34X34mm
Case	Black
