Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 1/4" CCD SENSOR 700TVL With IR-Cut Filter CCTV CAMERA

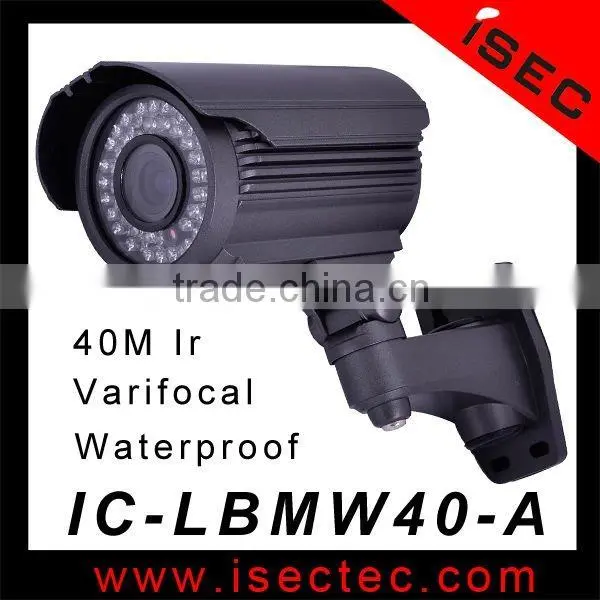

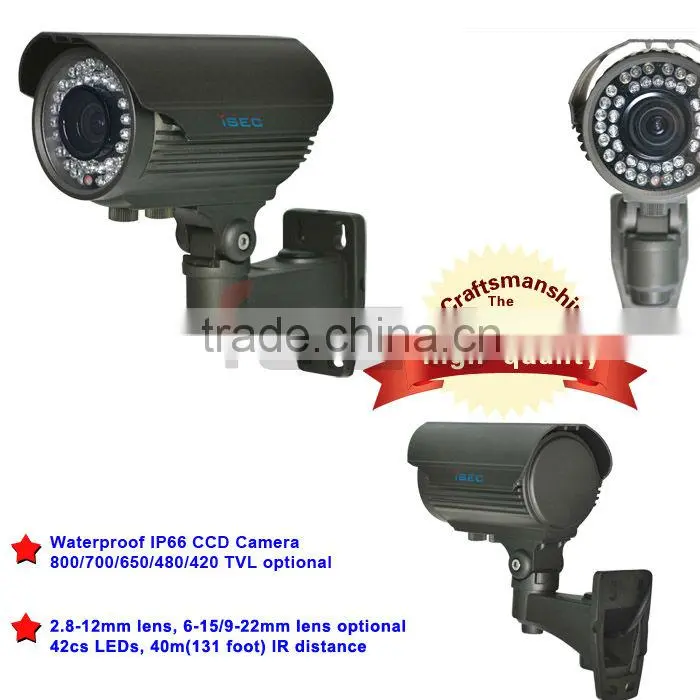

1/4" CCD SENSOR 700TVL With IR-Cut Filter CCTV CAMERA
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ISEC/OEM
Model Number:
IC-LBMW40-A series
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2014 ISEC Best Selling SHARP CCD 800TVL DWDR WATERPROOF IR CCTV CAMERANegotiableMOQ: 2 Pieces -
the Cheapest 700 Tvl With IR-Cut Filter 1/4 CMOS CCTV CAMERANegotiableMOQ: 1 Piece
-
Wholesale 700TVL CMOS/ CCD Sony Top 10 CCTV CameraNegotiableMOQ: 1 Piece
-
2014 New Design Bottom Screws for Zoom/focus Adjustment Cctv CameraNegotiableMOQ: 2 Pieces
-
Chinese Professioal Mantfaturer:face Recognise Motion Detection Dwdr 700tvl Sony Color Ccd Cctv CameraNegotiableMOQ: 2 Pieces
Place of Origin
Guangdong, China
Brand Name
ISEC/OEM
Model Number
IC-LBMW40-A series
Type
Analog Camera
Style
Bullet Camera
Sensor
CCD
Technology
Infrared
Special Features
Waterproof / Weatherproof
Specifications
1/4" CMOS SENSOR 700TVL with IR-Cut Filter CCTVWaterproof IR camera
2.8-12mm manual zoom lens
6-15, 9-22mm lens optiona
Specifications
China Wholesale Best Mini Camera Cctv Price
6 Years Golden Supplier
800/700/650/480/420Tvl
42Leds, 2.8-12mm Lens
Oem, Logo
Product descriptions
China Wholesale Best Mini Camera Cctv Price
Feature:
1,Mini Camera Cctv Price
2,The CCD & DSP are original from SONY COP or SHARP COP
3,420/480/650/700/800TV L optional, 600/700/800TV L built OSD menu, controlled by cable
4,42(f 0.5) LED IR illuminators view up to 40meters
5, 2.8-12mm varifocal lens, bottom screws for zoom/focus adjustment
6,DC12V Power supply , Easy to install
7,Cctv Camera, CE/FCC/RoHS

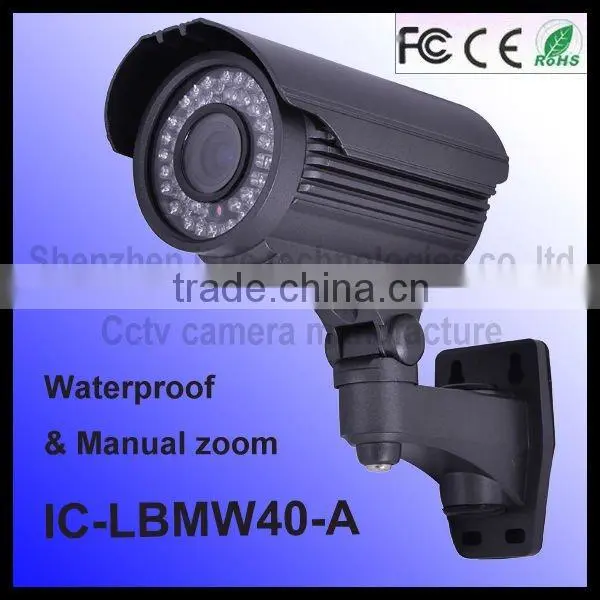

Photo:
Specification:
| Model NO. | IC-LBMW40-ASR | IC-LBMW40-AHO | IC-LBMW40-ASO | IC-LBMW40-ASS | IC-LBMW40-ASA | IC-LBMW40-ASF |
| VIDEO | ||||||
| Image Device | 1/3" SONY 960H CCD | 1/3" SHARP 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY 960H CCD | 1/3" SONY Super HAD II CCD |
| CCD model no. | ICX811AK(PAL) ICX810AK(NTSC) |
RJ2341(PAL) RJ2331(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX811AK(PAL) ICX810AK(NTSC) |
ICX633BK(PAL) ICX632BK(NTSC) |
| DSP model no. | AVS03P | Nextchip 2090E | Nextchip 2090E | Effio-E CSD4140GG |
AVS03A-H | SONY CXD3142R |
| Horizontal Resolution | 800TVL | 700TVL | 420TVL | |||
| TV System | PAL/NTSC | |||||
| Total Pixels | PAL:1020(H)*596(V) , NTSC:1020H*508(V) | PAL:537(H)*597(V) NTSC:537(H)*505(V) | ||||
| Effective Pixels | PAL:960(H)*582(V) , NTSC:976H*494(V) | PAL:500(H)*582(V) NTSC:510(H)*492(V) | ||||
| Scanning System | 2:1 Interlace | |||||
| Synchronization | Internal | |||||
| Min. Illumination | 0 Lux (LED ON) | |||||
| S/N Ratio | More than 48dB(AGC OFF) | |||||
| Video Output | 1Vp-p,75ohm, BNC | |||||
| LENS | ||||||
| Standard Lens | 2.8-12mm manaul zoom lens | |||||
| Option | 6-15mm, 9-22mm manaul zoom lens | |||||
| Audio | optional | |||||
| OPERATIONAL | ||||||
| Day & Night | Color / BW / EXT Auto-progressive Auto-general |
Auto / Color/ B/W / EXT | Auto / Color/ B/W / EXT1 / EXT2 | Auto / Color/ B/W / EXT | Auto | |
| Day to Night Delay | 0-255 | 1s-30s option | 0-255 | 1s-30s option | N/A | |
| White Balance | ATW, D75, D65, D50, CWF, U30, F/A | ATW / AWB / MANUAL / AWC-SET / ANTI.CRL | ATW / PUSH / USER1 / USER2:ANTI CR,MANUAL,PUSH LOCK | ATW1 / ATW2 / AWC / MANUAL | Auto | |
| Electronic Shutter Speed | PAL:1/50 ~ 1/100,000sec, NTSC:1/60 ~ 1/100,000sec | Auto | ||||
| Mirror | ON/OFF | ON/OFF | ON/OFF | ON/OFF | N/A | |
| AGC | 0-127 option | Low/Mid/High/OFF | 0-127 option | OFF/ LOW/ MIDDLE/ HIGH | Auto | |
| Sharpness | 0-7 option | 0-31 option | 0-7 option | 0-255 option | N/A | |
| Contrast | 0-99 option | 0-255 option | 0-255 option | 0.3-1.0 option | N/A | |
| Backlight | Auto/Low/Mid/High | 0-10 option | OFF /BLC /HLC | ON/OFF | N/A | |
| Neg.Image | N/A | ON/OFF | N/A | ON/OFF | N/A | |
| Menu Language | English, Japanese, German, French, Russian, Portuguese, Spaish | English, Japanese, German, French, Russian, Portuguese, Spaish | English, Japanese, German, French, Russian, Portuguese, Spaish | Chinese, English, Spaish | N/A | |
| HLC | Low/Mid/High | 0-255 option | On/Off, 0-255 option | On/Off, 0-255 option | N/A | |
| Privacy Masking | ON/OFF (8 areas) | ON/OFF (8 areas) | ON/OFF (8 areas) | ON/OFF (8 areas) | N/A | |
| Privacy Masking Color | OFF/ON(1-8 option) | OFF/ON(0-15 option) | OFF/ON(1-8 option) | OFF/ON(1-16 option) | N/A | |
| D-WDR | N/A | OFF/ON(0-63 level adjustable) | OFF/ON(LOW, MID, HIGH adjustable) |
OFF/ON(0-32 level adjustable) | N/A | |
| Super WDR | 0-10 level adjustable | N/A | N/A | N/A | N/A | |
| Demist | Auto/Low/Mid/High | N/A | N/A | Auto/Low/Mid/High | N/A | |
| Motion Detection | ON/OFF (4 areas) | ON/OFF (4 areas) | ON/OFF (4 areas) | ON/OFF (4 areas) | N/A | |
| DNR | 3DNR:ON/OFF(0-3 option) | 2DNR:ON/OFF (0-15 option) | 2DNR:ON/OFF | 3DNR:ON/OFF(0-3 option) | N/A | |
| D-ZOOM | 1-4 level option | N/A | N/A | 0-255 level option | N/A | |
Packaging & Shipping
Package:
Shipping:
Our Services
Why Choose ISEC ?

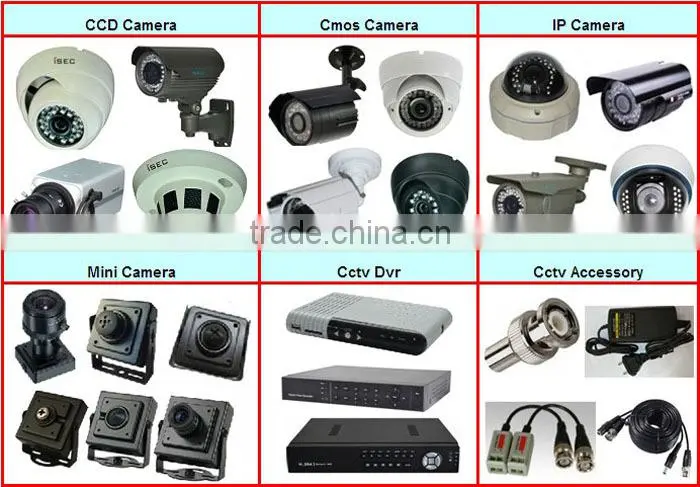

♦ China Factory Security Manufacturer. 9 Years experience, Supply Cctv CCD / CMOS camera, HD-SDI camera, IP camera, Mini Camera, PTZ camera, Cctv DVR, NVR, Cable, BNC, Balun, Adaptor etc.
♦ Quality Control. Strictly tested before packing, More than 12 hours aging before sending,Ce,Fcc,Rohs.
♦ Competitive Price. Factory price (EXW), More favorable price for big quantity.
♦ Technical support. Provide all-around technical support and counselling all the time.
♦ MOQ. 1 piece. Suggest our clients test sample first before bulk order.
Company information:
Certificates:
♦ Warranty. 2 years warranty, Free repairment within 2 years.
♦ Delivery. 3-4 working days for sample order,5-7 working days for bulk order.
♦ Payment. Accept T/T, Western Union, Paypal, Escrow, L/C, B/L. ect .
♦ ODM/OEM,Logo Print. Accept special design,customize specification; Free logo silk print service, Customize retail boxes.
