Specifications
1/3" SONY Exview HAD CCD High speed dome IR camera650TVL 120m night vision
SONY protocol
f=3.9~89.7mm
23X optical zoom

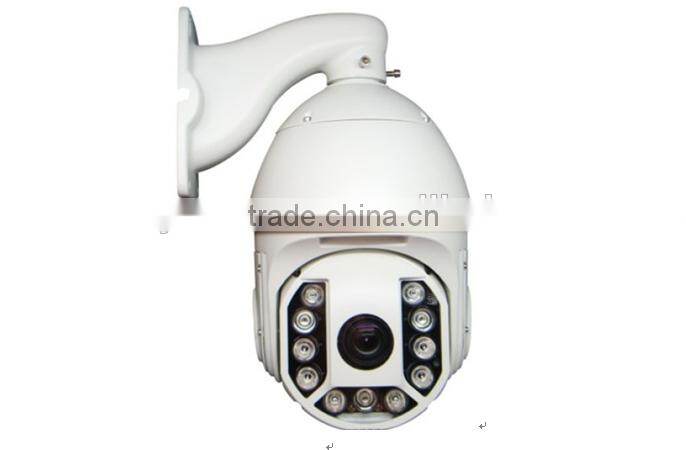

1/3" SONY Exview HAD CCD High speed dome IR camera(PTZ camera)
Features
l IR distance up to 120M
l Support CVBS
l 4 tour tracks,4 patterntracks
l 255 preset positions
l Support scan modes, tour, pattern tracks
l English OSD Menu
l Horizontal:360°rotation Vertical:-15°—90°auto flip.
l High quality Infrared lamp, Lower heat, lower consumption, high brightness, lower rate of infrared light attenuation
l Pan/tilt position and zoom times displayable
l RS485, Pelco D, P protocol auto detect
l Communication failure detection
l IP66 water proof
Specification
No. |
Name |
Specification |
1 |
Signal Type |
PAL/NTSC |
2 |
Pan range |
0o --360o continuously |
3 |
Tilt range |
0° ~ 90°auto flip |
4 |
Pan speed |
0.1~ 120° /s |
5 |
Tile speed |
0.1~ 90° /s |
6 |
Preset speed |
120° /s |
7 |
Precision |
± 0.10° |
8 |
Preset position |
255 |
9 |
OSD menu |
English |
10 |
Function Display |
Yes |
11 |
P/T position |
Display on/off |
12 |
Status Display |
Yes |
13 |
Communication |
Yes |
14 |
privacy zones |
8 zones |
15 |
Tour |
4 tour tracks32 preset per track |
16 |
Limit scan |
4 limit scans |
17 |
Pattern |
4 pattern tracks |
18 |
Home Position |
Yes |
19 |
Timing of operation |
Support for 8 time |
20 |
Protocol |
PELCO-D,PELCO-P,DH-SD1,YAAN auto detected |
21 |
Baud rate |
2400/4800/9600/19200 bps |
22 |
Communication |
RS485 |
23 |
Long-focus speed-limited. |
Yes |
24 |
Power off Memory |
Yes |
25 |
Image freeze |
Yes |
26 |
Camera support |
SONY / HITACH / CNB/SAMSUM |
27 |
Water proof |
IP65 |
28 |
Lighting proof |
4000 V |
29 |
Work temp |
-35℃~+60℃ |
